Smart BatPlus
ORDER CODE: SMARTBATPLUS
Share me

Immagine Principale
  • SMARTBATPLUS
  • SMARTBATPLUS
  • SMARTBATPLUS
  • SMARTBATPLUS
  • SMARTBATPLUS
  • SMARTBATPLUS
  • SMARTBATPLUS
  • SMARTBATPLUS
  • SMARTBATPLUS

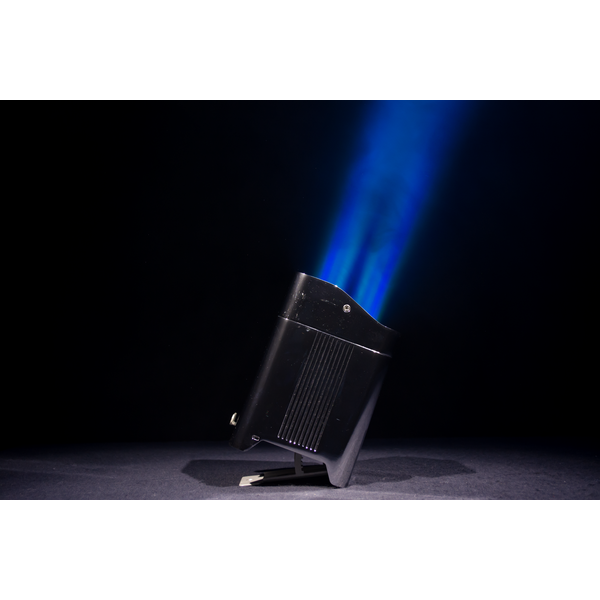

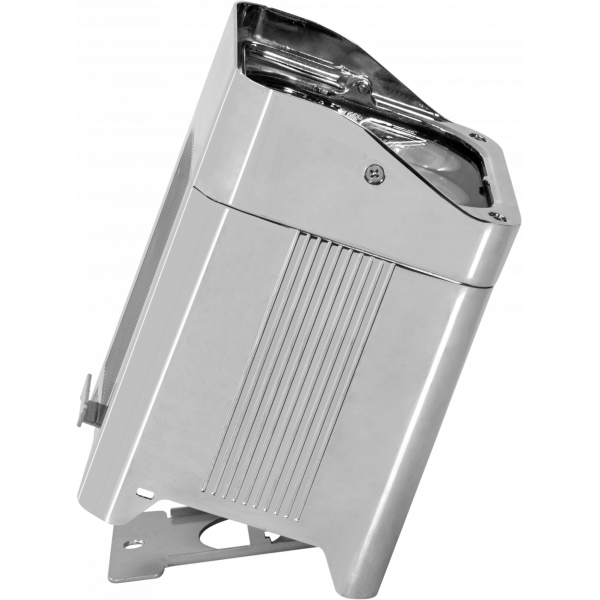

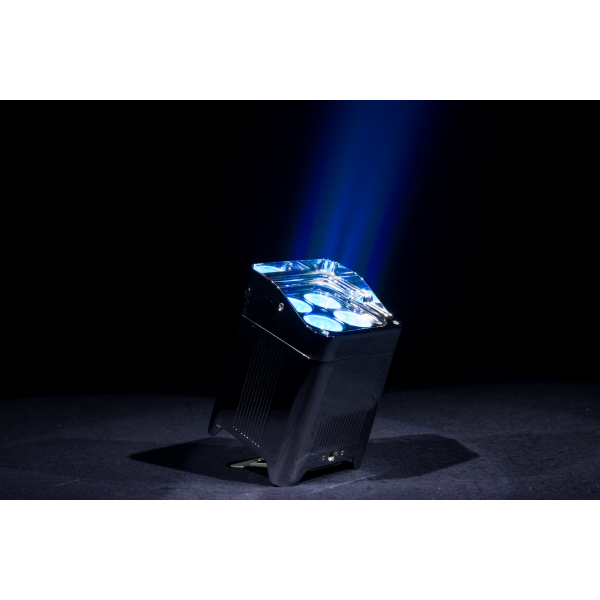

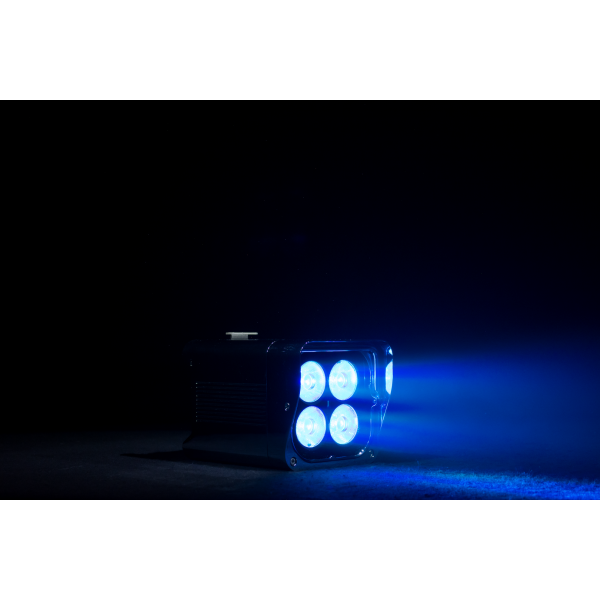

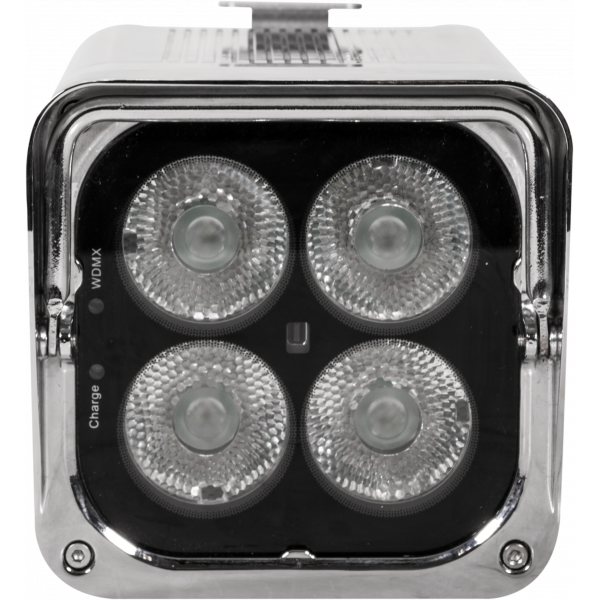

    • Smart BatPlus is the more advanced member of the successful Smart Bat range offering more advanced features such as W-DMX wireless card, waterproof housing, increased brightness, high-definition optics and fast-charge magnetic connector. It's packed in a super-slim compact housing with a mirror finish, useful when hiding the fixture from view.

    Features:

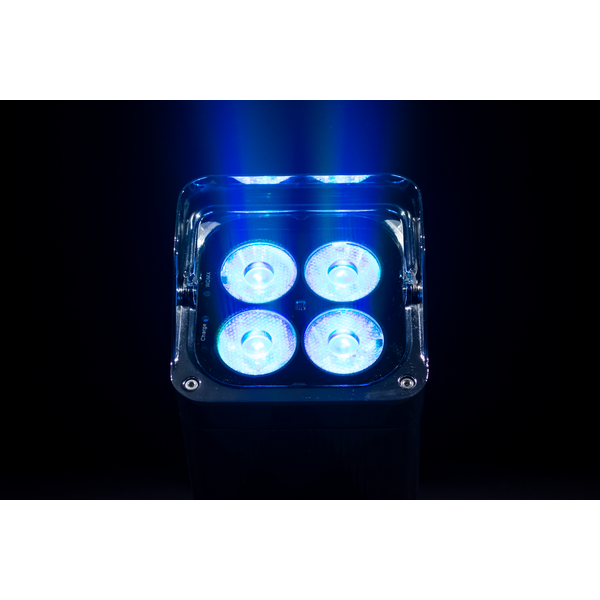

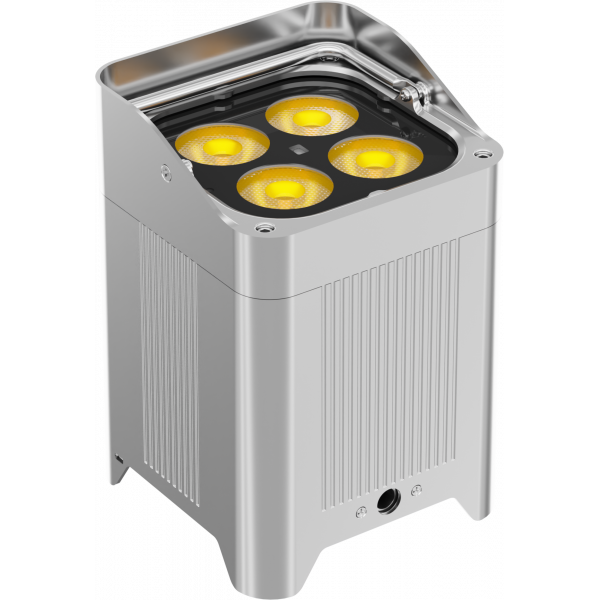

    4x12W RGBW CREE full colour LED with high efficiency collimator lens
    Battery powered, IP65 rated and W-DMX wireless DMX control
    Chrome finish and charging flight case option

    LIGHT SOURCE
    • Source:
      4x12
      W
      RGBW LEDs
    • Luminous flux:
      905
      lm
    • Lux:
      759
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      11
      °
    • Field angle:
      19
      °
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      3.200 K -9.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      built-in white presets
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Tilt angle:
      20
      °
      adjustable foot support for tilt regulation (up to 20°)
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      mirror finishing
    CONTROL
    • Protocols:
      W-DMX
    • DMX channels:
      4 / 6 / 10
      channel
    • Wireless Control:
      included, wireless solution receiver

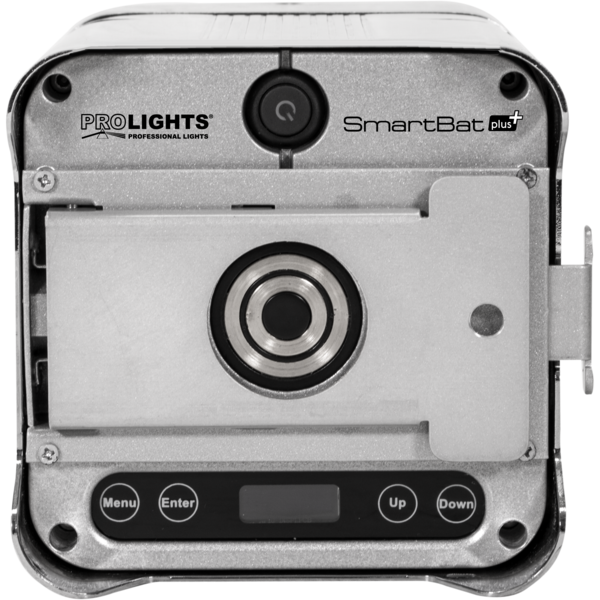

    • Display:
      black OLED touch display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • IR:
      infrared sensor controlled by remote
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      0° ~ +40°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz (SBPLUSPOWER charger not included)
    BATTERY
    • Battery:
      16,8
      V
      lithium
    • Estimated battery life in colour change mode up to:
      12
      h
    • Estimated battery life in full-mode up to:
      8
      h
    • Re-charge connection:
      magnetic fast-charge in case
    • Re-charge time:
      4
      h/max
    • Battery status:
      shown on display
    PHYSICAL
    • IP rating:
      for temporary outdoor use -
      IP65 (front) - IP54 (bottom)
    • Cooling:
      passive cooling and fan-free
    • Suspension and fixing:
      M12 threaded insert for easy clamp installation
    • Data connection:
      W-DMX receiver

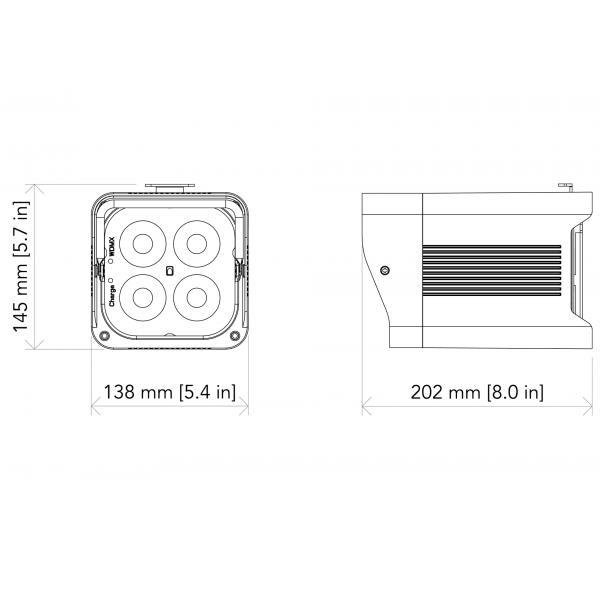

    • Dimensions (WxHxD):
      138x202x145
      mm
    • Weight:
      3,6
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x SMARTBATPLUS
    • 1 x LUMIPARIRCH
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    WSBBR512G6WSBBR512G6
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    WSBBR512G5WSBBR512G5
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    WSBBF1G6WSBBF1G6
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    WSBBF1G5WSBBF1G5
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    C6018BC6018B
    Quick-trigger slim clamp, 200 kg load, 48-80 mm tubes, M12 bolt incl, black
    SMARTBATPLUS (include)
    {ProdottiDaAccessorio}
    LUMIPARIRCHLUMIPARIRCH
    RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    FCLSMARTBATPLUSEFCLSMARTBATPLUSE
    Flight case for 6 SMARTBATPLUS, battery charger included
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    SBPLUSPOWERSBPLUSPOWER
    SMARTBATPLUS recharging base
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    SBPUPBOXISBPUPBOXI
    Interface between UPBOX1 and SMARTBATPLUS for make firmware upgrade
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    WDBBOXWDBBOX
    WDMX battery transmitter, mini 5p DMX and WIFI IN, 2.4 GHz, 0.4 kg
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    ARCLUMIL25D45ARCLUMIL25D45
    Optic lens 25°, D.45mm
    SMARTBATPLUS (optional)
    {ProdottiDaAccessorio}
    ARCLUMIL45D45ARCLUMIL45D45
    Optic lens 45°, D.45mm

    Data sheet & specs

    File name File size Download
    Smartbatplus_A4_DATASHEET_(EN).pdf 428KB
    Smartbatplus_A4_DATASHEET_(IT).pdf 422KB

    User manual

    File name File size Download
    Smartbatplus_USER_MANUAL_ITEN.pdf 4MB
    GENERAL_BATTERY_SAFETY_INFO.pdf 3MB
    Smartbatplus_GENERAL_SAFETY_INFO_SCEG.pdf 10MB

    DMX chart & personalities

    File name File size Download
    Smartbatplus_DMX_CHARTS.pdf 50KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VECTORWORKS_SYMBOLS.vwx 161KB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    SMARTBATPLUS Firmware rev. 1.5
    manufacturer fixture library (Link) Link
    prolights_smartbatplus.d4Download
    manufacturer fixture library (Link) Link
    prolights_smartbatplus_4ch.hedDownload
    prolights_smartbatplus_6ch.hedDownload
    prolights_smartbatplus_10ch.hedDownload
    prolights_smartbatplus_hsi.hedDownload
    prolights_smartbatplus_hsv.hedDownload
    manufacturer fixture library (Link) Link
    prolights@smartbat_plus@4_channel@ma_library_update_v13.5.xmlpDownload
    prolights@smartbat_plus@6_channel@ma_library_update_v13.5.xmlpDownload
    prolights@smartbat_plus@10_channel@ma_library_update_v13.5.xmlpDownload
    prolights@smartbat_plus@hsi@ma_library_update_v13.5.xmlpDownload
    prolights@smartbat_plus@hsv@ma_library_update_v13.5.xmlpDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    smartbat plus hsi.fix2Download
    smartbat plus hsv.fix2Download
    smartbat plus 4 channel.fix2Download
    smartbat plus 6 channel.fix2Download
    smartbat plus 10 channel.fix2Download

    Photometrics

    File name File size Download
    prolights_smartbatplus_ies files.zip 30KB
    prolights_smartbatplus_ldt files.zip 23KB
    Smartbatplus_PHOTOMETRICS_REPORT.pdf 3MB
    Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    Smartbatplus_3D_REVIT.rvt 414KB
    Smartbatplus_3D_SKETCHUP.skp 468KB
    Smartbatplus_2D.dwg 467KB
    Smartbatplus_3D.dwg 666KB
    Smartbatplus_2DSYMBOLS.dwg 174KB
    Smartbatplus_TECHNICAL_DRAWING.pdf 134KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.5 STABLE 04/12/2018 10 second default display backlight. Rev. 1.0
