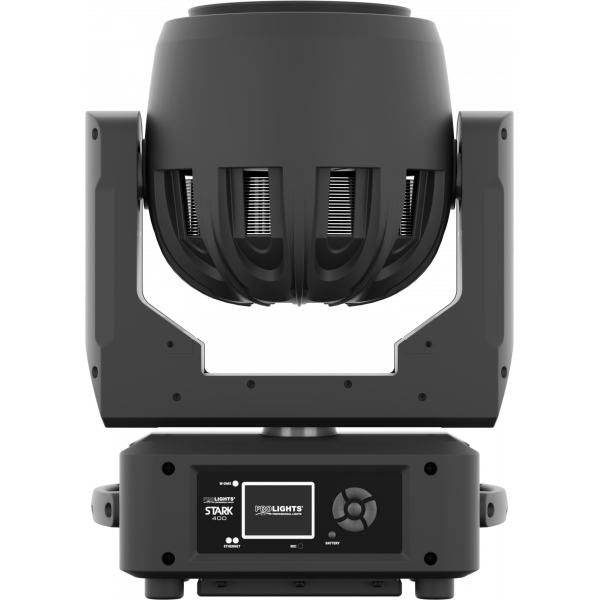

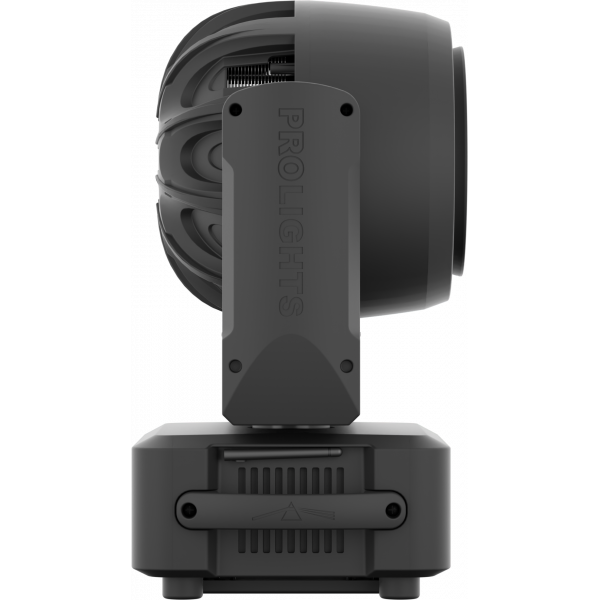

Stark 400
ORDER CODE: STARK400
Share me

Immagine Principale
  • STARK400
  • STARK400
  • STARK400
  • STARK400
  • STARK400
  • STARK400
  • STARK400
  • STARK400
  • STARK400
  • STARK400
  • STARK400

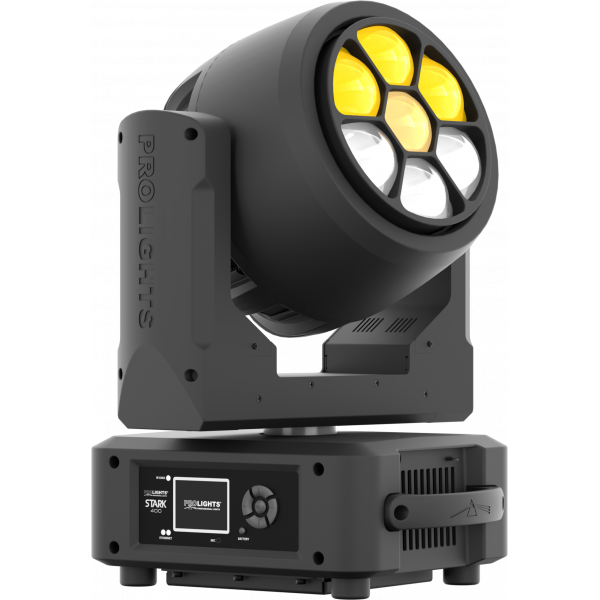

    • Stark 400 is a new generation, high-output LED wash light designed to bring the workhorse LED wash light right up-to-date. Featuring 7 of Osrams new 40W RGBW Ostar LEDs it delivers a massive output for its size with a huge colour range and an extensive toolkit of effects.

    Features:
    Massive 4,4° to 36° linear zoom range from beam to wash
    Individual control of calibrated pixels with on-board FX generator for fast and precise effects
    Liquid cooling system for efficient cooling with virtually no noise

    LIGHT SOURCE
    • Source:
      7x40
      W
      RGBW Osram Ostar LEDs
    • CCT:
      2.000 K - 10.000
    • Luminous flux:
      (4°) 1'944 lm - (36°) 2'700
      lm
      @full
    • Lux:
      (4°) 15'584 lm - (36°) 848
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      4° - 36
      °
      motorised linear zoom
    • Lens type:
      high-quality glass lens optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.000 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    BODY
    • Pan angle:
      540° / 630
      °
    • Tilt angle:
      233
      °
    • Pan/Tilt resolution:
      bit
      16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net, W-DMX
    • DMX channels:
      16 / 26 / 27 / 32 / 50
      channel
    • Pixel control:
      pixel2pixel control
    • Wireless Control:
      included, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display with autoflip
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      245
      W
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Dimensions (WxHxD):
      338x452x239
      mm
    • Weight:
      11
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x STARK400
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 2 x OS24
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    STARK400 (optional)
    {ProdottiDaAccessorio}
    WSBBR512G6WSBBR512G6
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    STARK400 (optional)
    {ProdottiDaAccessorio}
    WSBBR512G5WSBBR512G5
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    STARK400 (optional)
    {ProdottiDaAccessorio}
    WSBBF1G6WSBBF1G6
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    STARK400 (optional)
    {ProdottiDaAccessorio}
    WSBBF1G5WSBBF1G5
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    STARK400 (optional)
    {ProdottiDaAccessorio}
    TOUR53415L03TOUR53415L03
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    STARK400 (optional)
    {ProdottiDaAccessorio}
    958225L03958225L03
    3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
    STARK400 (optional)
    {ProdottiDaAccessorio}
    9513FXWL039513FXWL03
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
    STARK400 (optional)
    {ProdottiDaAccessorio}
    9533FXWL039533FXWL03
    Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m
    STARK400 (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    STARK400 (optional)
    {ProdottiDaAccessorio}
    C6016BC6016B
    Quick-trigger slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
    STARK400 (include)
    {ProdottiDaAccessorio}
    OS24OS24
    Quick-lock omega bracket, M10 hole
    STARK400 (include)
    {ProdottiDaAccessorio}
    WSA40501WSA40501
    WDMX, antenna 2.4Ghz 2dBi omnidirectional, folding, SMA-male, indoor
    STARK400 (optional)
    {ProdottiDaAccessorio}
    FCL40019FCL40019
    Flight case for 4x STARK400 or DIAMOND19
    STARK400 (optional)
    {ProdottiDaAccessorio}
    FSHLW01FSHLW01
    1U Foam shell compatible with DIAMOND19, STARK400
    STARK400 (optional)
    {ProdottiDaAccessorio}
    UPBOX2P5UPBOX2P5
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

    Data sheet & specs

    File name File size Download
    Stark400_A4_DATASHEET_(EN).pdf 404KB
    Stark400_A4_DATASHEET_(IT).pdf 450KB
    Stark400_LETTER_DATASHEET_(EN).pdf 405KB

    User manual

    File name File size Download
    Stark400_USER_MANUAL_ITEN.pdf 3MB

    DMX chart & personalities

    File name File size Download
    Stark400_DMX_CHARTS.pdf 175KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VECTORWORKS_SYMBOLS.vwx 592KB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    STARK400 Firmware rev. 2.2.00
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    prolights@stark400_26ch_fx(f.v._2.0)@.xmlDownload
    prolights@stark_400@pix_fx@ma_library_update_v13.4.xmlpDownload
    prolights@stark_400@wash@ma_library_update_v13.4.xmlpDownload
    stark400_fx26ch (1).hog4showDownload
    stark_400.hog4showDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    stark 400 fx.fix2Download
    stark 400 pix fx.fix2Download
    stark 400 wash.fix2Download
    manufacturer fixture library (Link) Link
    STARK400 Firmware rev. 1.6.00
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    prolights@stark400_26ch_fx(f.v._2.0)@.xmlDownload
    prolights@stark_400@pix_fx@ma_library_update_v13.4.xmlpDownload
    prolights@stark_400@wash@ma_library_update_v13.4.xmlpDownload
    stark400_fx26ch (1).hog4showDownload
    stark_400.hog4showDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    stark 400 fx.fix2Download
    stark 400 pix fx.fix2Download
    stark 400 wash.fix2Download
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    prolights_stark400_ies files.zip 32KB
    prolights_strak400_ldt files.zip 28KB
    Stark400_PHOTOMETRICS_REPORT.pdf 5MB
    Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    Stark400_3D_REVIT.rfa 816KB
    Stark400_3D_SKETCHUP.skp 2MB
    Stark400_3D.dwg 533KB
    Stark400_2DSYMBOLS.dwg 178KB
    Stark400_TECHNICAL_DRAWING.pdf 375KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX2P5
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    2.2.00 STABLE 05/11/2019 Firmware version for units with LED PCB type D.
    Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
    Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx

    • Improved strobe and pattern sync between different fixtures.
    		 Rev. 2 Not noted on unit's label
    1.6.00 STABLE 05/11/2019 Firmware version for units with LED PCB type C
    Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
    Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx

    • Improved strobe and pattern sync between different fixtures.
    		 Rev. 2 Not noted on unit's label
    Rev. 1 Not noted on unit's label
