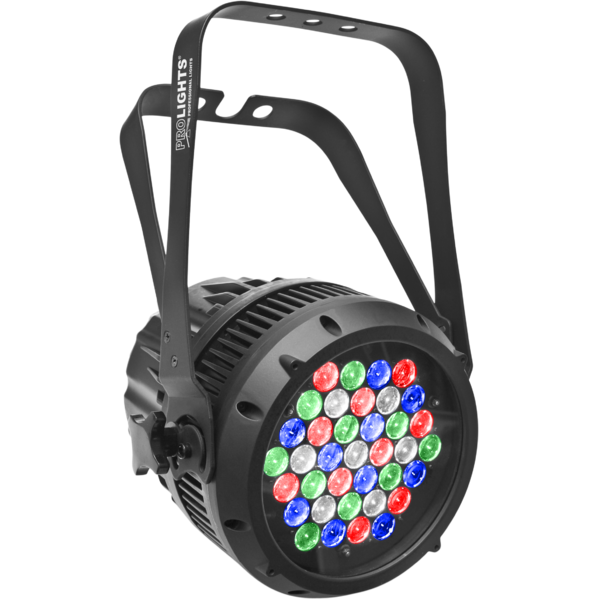

ARCLED7337ZOOM

Main features:

---

ARCLED7337ZOOM is a unique LED luminaire in LED lighting range for its performance and technological contents. It has been conceived to innovate the concept of LED source applied to lighting sector, featuring the innovative zoom technology for a linear passage from 8° spot to 40° wide beam. Optical section is composed by a brand new elliptical lens placed on a motorized scrolling panel. The great flexibility of control, combined to its powerful output (37x3W RGBW LEDs), make ARCLED7337ZOOM an outstanding tool for professional Light-Designers to fulfill lighting projects in large outdoor events (IP67 rated), roadshows, theatres, architectural installations.

Light source and optics

• 37 x 3W high-efficiency CREE RGBW LEDs (10 red, 10 green, 10 blue, 7 white)
• Lumens: 2280
• Lux@2m: 5000@2m
• Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
• Colour synthesis: RGBW colour mixing (>16 million colours) for a limitless colour range
• White temperature presets: 3200K~10000K
• Beam angle: 8°-40° Zoom
• Electronic linear zoom with motorized and scrolling lens panel
• LEDs average life span: >50'000h

Electronics and features

• Several DMX configurations selectable (3, 4, 5, 6, 12 channels) for advanced or basic controlling
3 channels: RGB
3 channels: HSV
4 channels: RGB, dimmer
4 channels: RGBW
5 channels: RGBW, dimmer
6 channels: RGBW, dimmer, strobe
12 channels: RGBW, dimmer, macro, strobe, auto programs, programs speed, dimmer curve, zoom, Zoom reset

• LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
• 5 different dimming available curves
• Master/Slave mode for stand-alone operations
• Linear and “stepless” transition between DMX values
• Flicker-free operations (400Hz)
• Silent operations, due to natural convection cooling of the peculiar chassis and to absence of fans

Structure and Power supply

• Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
• Frontal tempered glass panel
• Internal Protection: IP67 (IP) - IP54 (TZ)
• Pressure and temperature balance through GORE membrane vents
• Power (shuko) and data (xlr-3p) adapter cables included
• Double hanging bracket suitable for safe hanging and for floor positioning
• Power unit: 100-240V 50/60Hz
• Working temperatures: -40/45°
• Power output to link more units in a chain: up to 24 fixtures at 230V
• Max power consumption: 100W
• Weight: 6,5 kg
• Dimensions (WxHxD): 248x203x311 mm
