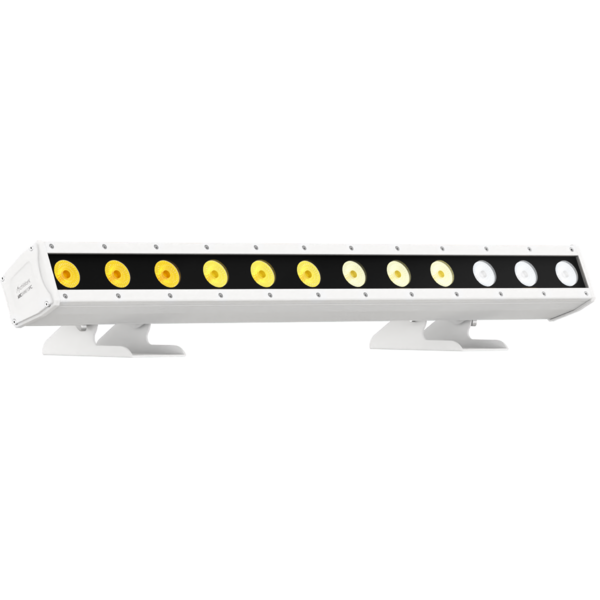

ArcShine 12

12x8W RGBW/FC outdoor IP66 linear fixture with pixel control

ArcShine 12 is a linear wall washer with 12x8W RGBW/FC LEDs source designed for outdoor installations where a high-performance linear projector with superb brightness and chromatic precision is required. The linear shape design and the slim profile allows the ArcShine 12 to be easily integrated into any architectural design both indoor and outdoor (IP66) due to the construction of chassis in die-cast aluminium and tempered glass. This linear luminaire also features individual pixel control of each emitters for extended dynamic and creative possibilities.

Main features:

  • 12x8W RGBW/FC LEDs with pixel control
  • Slim profile and fanless
  • IP66 for outdoor installs

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 12x8W RGBW LEDs
  • Luminous flux: 2'995
  • Lux: (15°) 1'182lx @5 m full
  • Lux: (45°) 175lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 15°
  • Field angle: 22°
  • Additional optics: 25° - 45° (optional)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 4 / 6 / 10 / 48 / 53ch
  • Pixel control: pixel2pixel control
  • Display: touch - sensitive LED display
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: moulded IP signal IN/OUT connectors
  • Signal connection: moulded IP signal IN connector
  • Adaptors: XLR and BARE END 16A adaptors included
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 108W
  • Output (at 230V): 18 units on a single power line
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • Cooling: pressure equalisation through GORE membrane vents
  • Housing: Sturdy die-cast aluminium body
  • Finish: white (RAL 9003)
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 990x200x187mm / 38.98''x7.87''x7.36''
  • Weight: 8,8kg / 19.4lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Color Synthesis
ARCSHINE12FC
ARCSHINE12FC (DISCONTINUED)
Full Color
ARCSHINE12TU
ARCSHINE12TU (DISCONTINUED)
Tungsten
ARCSHINE12DY
ARCSHINE12DY (DISCONTINUED)
Daylight

Accessories & Related Products

<b>CRMXBox</b> IP67
CRMXBox IP67
(Optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
ARCLUMIL15D42
ARCLUMIL15D42
(Included)
Optic lens 22°, D.42mm
ARCLUMIL25D42
ARCLUMIL25D42
(Optional)
Optic lens 25°, D.42mm
ARCLUMIL45D42
ARCLUMIL45D42
(Optional)
Optic lens 45°, D.42mm
AWEXAC1
AWEXAC1
(Optional)
AWEXDC1
AWEXDC1
(Optional)
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcshine12_A4_DATASHEET_(IT).pdf(06/05/2021)284KB
Letter datasheetArcshine12_A4_DATASHEET_(EN).pdf(03/09/2021)294KB

User manual

File name File size Download
User manualArcshine12fc_USER_MANUAL_ITEN.pdf(08/06/2017)2MB

DMX chart & personalities

File name File size Download
DMX chartArcshine12_DMX_CHARTS.pdf(11/08/2014)1MB

ARCSHINE12FC Firmware rev. 1.2

manufacturer fixture library (Link) Link
prolights_arcshine12.d4Download
manufacturer fixture library (Link) Link
prolights_arcshine12fc_4ch.hedDownload
prolights_arcshine12fc_6ch.hedDownload
prolights_arcshine12fc_10ch.hedDownload
prolights_arcshine12fc_48ch.hedDownload
prolights_arcshine12fc_53ch.hedDownload
manufacturer fixture library (Link) Link
arcshine12_4ch.fdfDownload
arcshine12_6ch.fdfDownload
arcshine12_10ch.fdfDownload
arcshine12_48ch.fdfDownload
arcshine12_53ch.fdfDownload
manufacturer fixture library (Link) Link
arcshine 12 fc.zipDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAArcshine12fc_3D.rfa(22/04/2021)460KB
3D SKPArcshine12_3D.skp(23/07/2021)602KB
2DArcshine12_CAD_2D.dwg(26/02/2021)2MB
3DArcshine12_CAD_3D.dwg(16/07/2021)541KB
2D cad symbolsArcshine12fc_CAD_2DSYMBOLS.dwg(09/03/2020)21KB
Technical drawingArcshine12_TECHNICAL_DRAWING.pdf(26/02/2021)181KB
VectorWorksARCSHINE12_SYMBOLS.zip938KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In(03/03/2025)192MB

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
