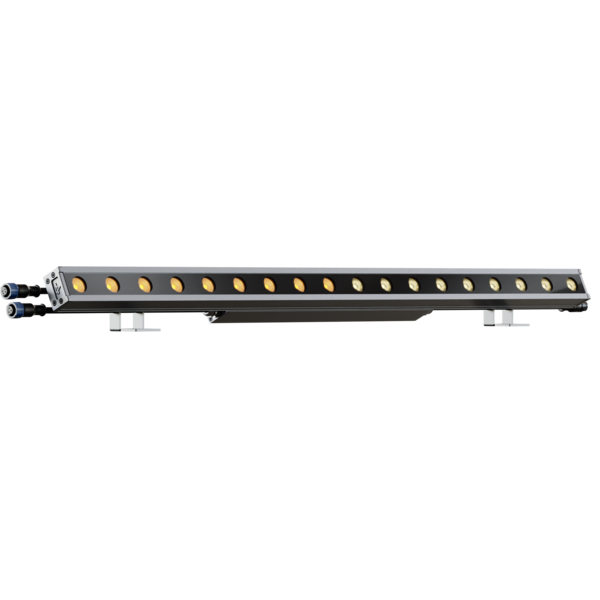

ArcShine S18FC

18x2W IP66 RGB + Warm White architectural linear bar, 100 cm

The ArcShine S18FC and ArcShine S9FC are a series of slim linear LED fixtures, designed for interior and exterior applications (IP66) such as flood lighting, wall washing and accent lighting.
There are two sizes available, one with 18 LEDs (100 cm) and the other with 9 (50 cm) LED emitters, 2W each, with RGB + Warm White colour mixing. Its die-cast aluminium body with tempered glass make them perfect additions to urban structures or historical buildings.
Optic: 15° lenses capable of delivering multiple angles with optional holographic filters.
Optional holographic symmetric and elliptical filters available: 20°, 60°, 10°x60°, 30°x60°.
The ArcShine range has an on-board power supply and DMX/RDM control. The 100 cm version is controllable in two sections.

5 YEARS WARRANTY

Main features:

  • IP66 design, AC 100-240V and driver on-board, DMX/RDM controllable
  • RGB + Warm White colour mixing, with 2W LED emitters
  • Optic: 15° lenses capable of delivering multiple angles with optional holographic filters
  • Optional holographic symmetric and elliptical filters available: 20°, 60°, 10°x60°. 30°x60°
See variants

PHOTO GALLERY

ArcShine S18FC
ArcShine S18FC
ArcShine S18FC
ArcShine S18FC
ArcShine S18FC

Technical specifications

LIGHT SOURCE
  • Source: 18x2W RGB + Warm White LEDs
  • Luminous flux: (15°) 1'168 lm; (15°+20°) 1'047 lm; (15°+60°) 1.030 lm; (15°+10°x60°) 1'339 lm; (15°+30°x60°) 1'093 @Full
  • Lux: (15°) 646 lx; (15°+20°) 222 lx; (15°+60°) 25 lx; (15°+10°x60°) 141 lx; (15°+30°x60°) 113lx @3 m full
  • CRI: >80
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 15°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 5 / 9 / 12 / 14ch
  • Pixel control: 2 controllable sections
  • RDM: for remote addressing and parameter configuration
  • Display: user interface through DATAMASTER external coder (not included)
  • Stand Alone: available through DATAMASTER external coder (not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
MOVEMENT
  • Tilt: 180° with manual adjustment
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade with: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: moulded IP power IN/OUT connectors
  • Signal connection: moulded IP signal IN/OUT connectors
  • Adaptors: XLR and BARE END 16A adaptors included
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 40W
  • Output (at 230V): 35 units on a single power line
  • Power factor: >0,94
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: IK09 impact rating
  • Cooling: fan-free with natural convection
  • Housing: Sturdy aluminium profile
  • Finish: basalt grey (RAL 7012)
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 1000x150x64.7mm / 39.37''x5.91''x2.55''
  • Weight: 3,5kg / 7.72lbs
INSTALLATION
  • Suspension and fixing: double bracket for hanging and floor positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
LED source
Beam angle (° - HxV)
Lenght (cm)
Painting
ARCSHINES1815FC
ARCSHINES1815FC
RGBW/Full color
15
100
Standard

Accessories & Related Products

<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
AWEXAC2L03
AWEXAC2L03
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
AWEXAC2L05
AWEXAC2L05
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m
AWEXAC2L10
AWEXAC2L10
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC2L03
AWEXDC2L03
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m
AWEXDC2L20
AWEXDC2L20
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m
ARCS18FIXBD
ARCS18FIXBD
(Optional)
Barndoor to adjust the light beam for ARCSHINES18 and ARCSHINEM18
ARCSS18FILTER20
ARCSS18FILTER20
(Optional)
Light diffusion filter for ARCSHINES18, 20°
ARCSS18FILTER40
ARCSS18FILTER40
(Optional)
Light diffusion filter for ARCSHINES18, 40°
ARCSS18FILTER60
ARCSS18FILTER60
(Optional)
Light diffusion filter for ARCSHINES18, 60°
ARCSS18FILTER1060
ARCSS18FILTER1060
(Optional)
Light diffusion filter for ARCSHINES18, 10°x60° (VxH)
ARCSS18FILTER3060
ARCSS18FILTER3060
(Optional)
Light diffusion filter for ARCSHINES18, 30°x60° (VxH)
ARCSSM18OUTERCASE
ARCSSM18OUTERCASE
(Optional)
Outercase box for ground installation for ARCSHINES18 and ARCSHINEM18 series, manual tilt
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
<b>UpBox</b> Pro
UpBox Pro
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
