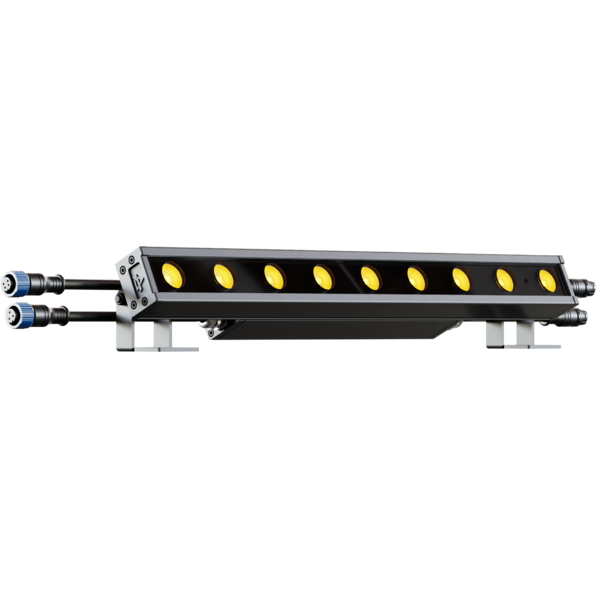

ArcShine S9FC

9x2W IP66 RGB + Warm White architectural linear fixture, 50 cm

The ArcShine S18FC and ArcShine S9FC are a series of slim linear LED fixtures, designed for interior and exterior applications (IP66) such as flood lighting, wall washing and accent lighting.
There are two sizes available, one with 18 LEDs (100 cm) and the other with 9 (50 cm) LED emitters, 2W each, with RGB + Warm White colour mixing. Its die-cast aluminium body with tempered glass make them perfect additions to urban structures or historical buildings.
Optic: 15° lenses capable of delivering multiple angles with optional holographic filters.
Optional holographic symmetric and elliptical filters available: 20°, 60°, 10°x60°, 30°x60°.
The ArcShine range has an on-board power supply and DMX/RDM control. The 100 cm version is controllable in two sections.

5 YEARS WARRANTY

Main features:

  • IP66 design, AC 100-240V and driver on-board, DMX/RDM controllable
  • RGB + Warm White colour mixing, with 2W LED emitters
  • Optic: 15° lenses capable of delivering multiple angles with optional holographic filters
  • Optional holographic symmetric and elliptical filters available: 20°, 40°, 60°, 10°x60°. 30°x60°
See variants

PHOTO GALLERY

ArcShine S9FC
ArcShine S9FC
ArcShine S9FC
ArcShine S9FC
ArcShine S9FC

Technical specifications

LIGHT SOURCE
  • Source: 9x2W RGBWW LEDs
  • CCT: 2.700 K - 5.600
  • Luminous flux: (15°) 655 lm; (15°+20°) 638 lm; (15°+60°) 618 lm; (15°+10°x60°) 744 lm; (15°+30°x60°) 644 @Full
  • Lux: (15°) 428 lx; (15°+20°) 146 lx; (15°+60°) 51 lx; (15°+10°x60°) 102 lx; (15°+30°x60°) 64lx @3 m full
  • CRI: >80
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 15°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
BODY
  • Tilt range: manual 180°
  • Body: sturdy aluminum profile
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • Stand Alone: available through DATAMASTER external coder (not included)
  • DMX channels: 1 / 2 / 5 / 9 / 12 / 14channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 21W
  • Output (at 230V): 58 units on a single power line
  • Power factor: >0,95
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: 09
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: moulded IP signal IN/OUT connectors
  • Power connection: moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 500x150x64.7mm / 19.69''x5.91''x2.55''
  • Weight: 1,95kg / 4.3lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
LED source
Beam angle (° - HxV)
Lenght (cm)
Painting
ARCSHINES915FC
ARCSHINES915FC
RGBW/Full color
15
50
Standard

Accessories & Related Products

<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
AWEXAC2L03
AWEXAC2L03
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
AWEXAC2L05
AWEXAC2L05
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m
AWEXAC2L10
AWEXAC2L10
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC2L03
AWEXDC2L03
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m
AWEXDC2L20
AWEXDC2L20
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m
ARCS9FIXBD
ARCS9FIXBD
(Optional)
Barndoor to adjust the light beam for ARCSHINES9 and ARCSHINEM9
ARCSS9FILTER20
ARCSS9FILTER20
(Optional)
Light diffusion filter for ARCSHINES9, 20°
ARCSS9FILTER40
ARCSS9FILTER40
(Optional)
Light diffusion filter for ARCSHINES9, 40°
ARCSS9FILTER60
ARCSS9FILTER60
(Optional)
Light diffusion filter for ARCSHINES9, 60°
ARCSS9FILTER1060
ARCSS9FILTER1060
(Optional)
Light diffusion filter for ARCSHINES9, 10°x60°
ARCSS9FILTER3060
ARCSS9FILTER3060
(Optional)
Light diffusion filter for ARCSHINES9, 30°x60°
ARCSSM9OUTERCASE
ARCSSM9OUTERCASE
(Optional)
Outercase box for ground installation for ARCSHINES9 and ARCSHINEM9 series, manual tilt
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcshines9fc_A4_DATASHEET_(ITA).pdf(12/09/2025)365KB
Letter datasheetArcshines9fc_LETTER_DATASHEET_(EN).pdf(12/09/2025)361KB
Letter datasheetArcshines9fc_A4_DATASHEET_(EN).pdf(12/09/2025)361KB
Tender SpecificationArcshines9fc_TENDER_SPECIFICATION.pdf(26/09/2022)3MB

User manual

File name File size Download
User manualArcshines9fc_USER_MANUAL_EN.pdf(04/03/2024)6MB
User manualArcshines9fc_USER_MANUAL_FR.pdf(04/03/2024)6MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

DMX chart & personalities

File name File size Download
DMX chartArcshines9fc_DMX_CHARTS.pdf(07/04/2022)116KB

ARCSHINES9FC Firmware rev. 1.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPArcshines915fc_3D.skp(26/07/2022)381KB
2DArcshines9fc_CAD_2D.dwg(25/07/2022)2MB
2D cad symbolsArcshines915fc_CAD_2DSYMBOLS.dwg(26/07/2022)74KB
3DArcshines915fc_CAD_3D.dwg(03/10/2022)520KB
Technical drawingArcshines9fc_TECHNICAL_DRAWING.pdf(25/07/2022)257KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(26/07/2022)391KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 04/08/2022 First stable release.
