ArcSpot LFC

IP66 Spot featuring 7000 lumen with 37x 4W RGB+WarmWhite source, 10° native

The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.

Among the series, the ArcSpot LFC stands out as a large sized round spot. It is equipped with 37x 4W RGB+WarmWhite LED source, delivering 10° beam angle with a fixture output of 7000 lumens.

These fixtures are engineered with a dual chamber design, with the physical  separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.

The unit is DMX compatible, offering the convenience of remote management via RDM.

Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.

SPEKTRA5 YEARS WARRANTY

Main features:

  • Exterior Spot featuring 7000 lumen with 37x 4W RGB+WarmWhite LED source
  • IP66 with C5M for permanent exterior installation also in marine environment with dual chamber design
  • Comprehensive selection of optics, holographic filters and light modifiers
See variants

PHOTO GALLERY

ArcSpot LFC
ArcSpot LFC
ArcSpot LFC
ArcSpot LFC

Technical specifications

LIGHT SOURCE
  • Source: 37 x 4W RGB + Warm White LED
  • CCT: 2.800K - 10.000K
  • Luminous flux: 7'008 @Full
  • Lux: 5'179lx @5 m full
  • Source life expectancy: > 90.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 10°
  • Field angle: 19°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • Colour wheel: gel filters included
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 5 / 6 / 9 / 12channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
BODY
  • Hardware on-board: optional accessories: half snoot and louvre
  • Body: Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard)
  • Body colour: RAL 7012
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 130W
  • Standby power: 0,5 W
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: 08
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 53 cm moulded IP signal IN/OUT connectors
  • Power connection: 53 cm moulded IP power IN connector
  • Dimensions (WxHxD): 269x298x121mm / 10.59''x11.73''x4.76''
  • Weight: 4,5kg / 9.92lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ARCSPOTLFCGY
ARCSPOTLFCGY
RAL 7012

Accessories & Related Products

<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
PLYPC3010E73D
PLYPC3010E73D
(Optional)
Y splitter power cable 3x1.0 mm2, IP67 connectors (1 IN + 2 OUT), 80 cm lenght
THR390S3T
THR390S3T
(Optional)
3-Way junction connector, 'T' type, 3 Poles, IP68
THR209S6D
THR209S6D
(Optional)
4-Way junction box type H, 3 poles, IP66/IP68
<b>Æther</b> Link
Æther Link
(Optional)
IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation
ASLENS10
ASLENS10
(Included)
Lens for ARCSPOT series, 10°
ASLENS25
ASLENS25
(Optional)
Lens for ARCSPOT series, 25°
ASLENS15
ASLENS15
(Optional)
Lens for ARCSPOT series, 15°
ARLFILTER20
ARLFILTER20
(Optional)
Light diffusion filter for ARCSPOTL series, 20°
ARLFILTER40
ARLFILTER40
(Optional)
Light diffusion filter for ARCSPOTL series, 40°
ARLFILTER60
ARLFILTER60
(Optional)
Light diffusion filter for ARCSPOTL series, 60°
ARLFILTER1060
ARLFILTER1060
(Optional)
Light diffusion filter for ARCSPOTL series, 10°x60°
ARLFILTER3060
ARLFILTER3060
(Optional)
Light diffusion filter for ARCSPOTL series, 30°x60°
ARLHSNOOTGY
ARLHSNOOTGY
(Optional)
Half snoot for ARCSPOTL series, RAL 7012
ARLHLOUVREGY
ARLHLOUVREGY
(Optional)
Honeycomb louvre for ARCSPOTL series, RAL 7012

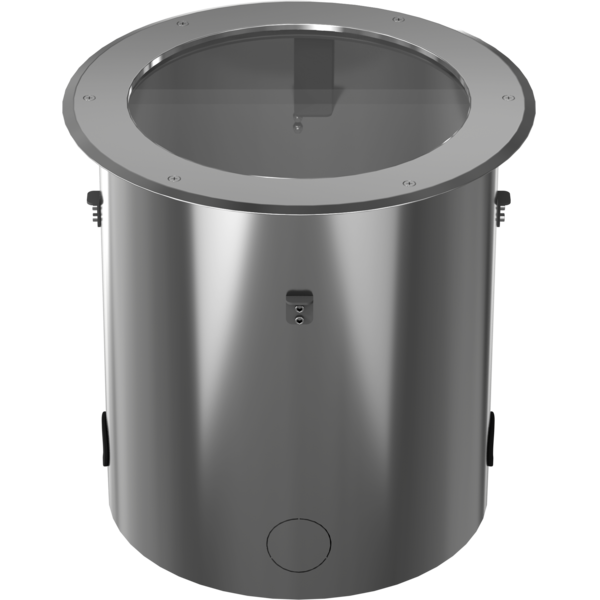

ASPOTOUTERCASEL
ASPOTOUTERCASEL
(Optional)
Outercase box for ground installation for ARCSPOTL series
MOSUNIBRACKJR
MOSUNIBRACKJR
(Optional)
AWEXAC2L03
AWEXAC2L03
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
AWEXAC2L05
AWEXAC2L05
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m
AWEXAC2L10
AWEXAC2L10
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC2L03
AWEXDC2L03
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m
AWEXDC2L20
AWEXDC2L20
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcspotlfcgy_LETTER_DATASHEET_(EN).pdf(13/06/2024)531KB
Letter datasheetArcspotlfc_A4_DATASHEET_(EN).pdf(09/07/2024)526KB
Tender SpecificationArcspotlfc_TENDER_SPECIFICATION.pdf(09/07/2024)331KB

User manual

File name File size Download
User manualArcspotlfc_USER_MANUAL_EN.pdf(10/04/2025)4MB
User manualArcspotlfc_General_Safety_Information.pdf(11/09/2024)3MB

DMX chart & personalities

File name File size Download
DMX chartArcspotlfc_DMX_CHARTS.pdf(20/02/2024)300KB

ARCSPOTLFC Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
arcspot lfc.dfixDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPArcspotlfc_3D.skp(29/12/2023)683KB
3DArcspotlfc_CAD_3D.dwg(29/12/2023)292KB
2DARCSPOTLFC_2D.zip3MB
2D cad symbolsARCSPOTLFC_2DSYMBOLS.zip69KB
Technical drawingARCSPOTLFC_TECHNICAL DRAWINGS.zip428KB
VectorWorksARCSPOTLFC_SYMBOLS.vwx(06/02/2024)1MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 12/09/2024 Improvement:
  • Improved DMX address stability management.
