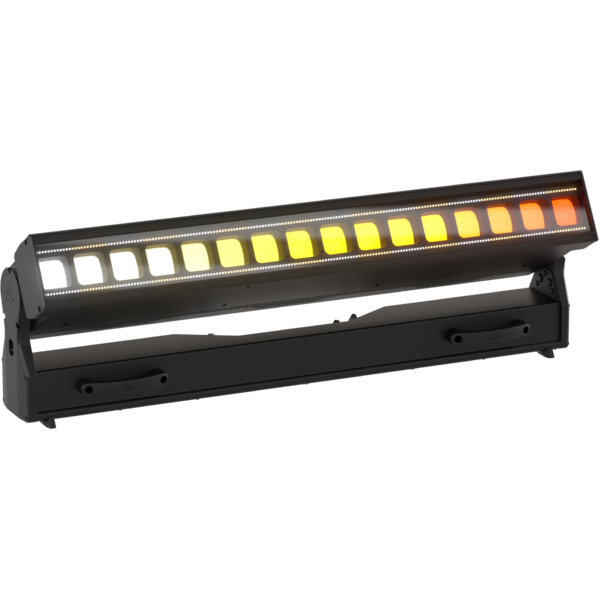

Astra Blade100IP

ORDER CODE: ASTRABLADE100IP

IP65 motorized linear batten with 16x40W RGB+WW LEDs with two variable white pixel linear LED strips on both sides and zoom 4°-40°

The Astra Blade100IP is an IP65 rated, linear motorized LED batten, featuring high output through 16 x 40W RGB+WW LEDs and two variable white pixel linear LED strips on both sides, a wide zoom range, and control through the powerful PROLIGHTS Spektra OS algorithm that reproduces perfect white spectrums with high color rendering.

The new squared lens design maximizes lumen efficiency and provides a bright curtain of light at its narrowest angle of just 4°, while delivering smooth and homogeneous washes at its widest 40° wash when zoomed out.

Astra Blade100IP offers motorized tilt and individual pixel control across the 16 emitters and 32 sectors for your side strips, as well as both wired and wireless CRMX operations or through multi-protocol ethernet support.

The water and dustproof design ensures enhanced reliability for any indoor or outdoor stages, making it virtually maintenance-free.

SPEKTRA

Main features:

  • IP65 motorized 100cm Led batten with Tilt and zoom control
  • 16x40W RGB+WW LEDs with two variable white linear LED strips on both sides, pixel control
  • Zoom from 4° to 40°
See variants

PHOTO GALLERY

Astra Blade100IP
Astra Blade100IP
Astra Blade100IP
Astra Blade100IP
Astra Blade100IP
Astra Blade100IP

Technical specifications

LIGHT SOURCE
  • Source: 16x40W RGBW Osram Ostar LEDs
  • Additional source: 2 VW linear LED strips with 32 individual sections (16 on top + 16 on bottom)
  • Luminous flux: (4,3°) 12'028 lm - (39,4°) 15'262 @Full
  • Lux: (4,3°) 50'695 lx - (39,4°) 3'056lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 4,3° - 39,4° motorised linear zoom
  • Lens diameter: 50mm / 1.97'' square shape
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour control: CCT, RGBW, HSI, Colour Macros
  • CCT: CCT control, + / - green correction, tungsten emulation
  • Colour wheel: virtual colour wheel with macros
  • Other: CCT range: (pixels) 2.800K / 10.000K - (strips) 2.700K / 8000K
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Pixel patterns: pre-programmed static and dynamic pixel patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
CONTROL
  • Supported Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • Pixel control: 16 px (main) + 32 px (strips) pixel2pixel control
  • RDM: for remote addressing and parameter configuration
  • Display: LCD high resolution colour display with autoflip
  • Master/Slave: for synchronised operation of more units linked in a chain
MOVEMENT
  • Tilt: 200° - 16-bit resolution
  • Position feedback: automatic repositioning after external movement
  • Pan / tilt lock: for transport and maintenance
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 5 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: included, self-charging battery backup
  • Selectable PWM: 1000 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included) or via Ethernet with DMX-Workshop
CONNECTIONS
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Data connection: IP65 Art-Net RJ45 IN/OUT
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): strobe: 1.000 W (peak) - wash: 750W
  • Output (at 230V): 2 units on a single power line
  • Standby power: 43 W
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor use (*)
  • Cooling: heat pipe with low-noise fan
  • Housing: Weatherproof IP65 construction with die-cast magnesium alloy
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 996x336x175mm / 39.21''x13.23''x6.89''
  • Weight: 27,4kg / 60.41lbs
INSTALLATION
  • Suspension and fixing: any position with quick-lock omega brackets
  • Hardware on-board: ancor points on the front for accessory mounting
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
BOX CONTENT

Versions

Accessories & Related Products

FCLASTRAB100IP
FCLASTRAB100IP
(Optional)
Flight case for 2 pcs of ASTRABLADE100IP
OS25PLUS
OS25PLUS
(Included)
Quick-lock omega bracket, M12 hole
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
<b>ÆtherBox</b> One
ÆtherBox One
(Optional)
IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR1235A
RSR1235A
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, silver
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAstrablade100ip_LETTER_DATASHEET_(EN).pdf(08/01/2026)639KB
Letter datasheetAstrablade100ip_A4_DATASHEET_(ITA).pdf(08/01/2026)652KB
Letter datasheetAstrablade100ip_A4_DATASHEET_(EN).pdf(08/01/2026)645KB
Tender SpecificationAstrablade100ip_TENDER_SPECIFICATION.pdf(14/04/2025)276KB

User manual

File name File size Download
User manualAstrablade100ip_USER_MANUAL_EN.pdf(24/10/2025)6MB
User manualAstrablade100ip_General_Safety_Information.pdf(27/10/2025)3MB

DMX chart & personalities

File name File size Download
DMX chartAstrablade100ip_DMX_Chart.pdf(19/09/2025)1MB

ASTRABLADE100IP Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPAstrablade100ip_3D.skp(01/08/2024)680KB
3DAstrablade100ip_CAD_3D.dwg(01/08/2024)193KB
2DAstrablade100ip_CAD_2D.dwg(11/03/2025)6MB
2D cad symbolsAstrablade100ip_CAD_2DSYMBOLS.dwg(02/05/2025)17KB
Technical drawingAstrablade100ip_TECHNICAL_DRAWING.pdf(11/03/2025)528KB
VectorWorksASTRABLADE100IP_SYMBOLS.vwx(13/05/2025)609KB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB

Tech docs

File name File size Download
Noise ReportAstrablade100ip_NOISE_REPORT.pdf(01/07/2025)672KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 29/12/2025 Fixed Bug:
  • Zoom sometimes stops working when Fan Mode is other than AUTO.
 Rev. 1.0

Info Request

News
