ASTRAHYB420IP
PROLIGHTS
end of life

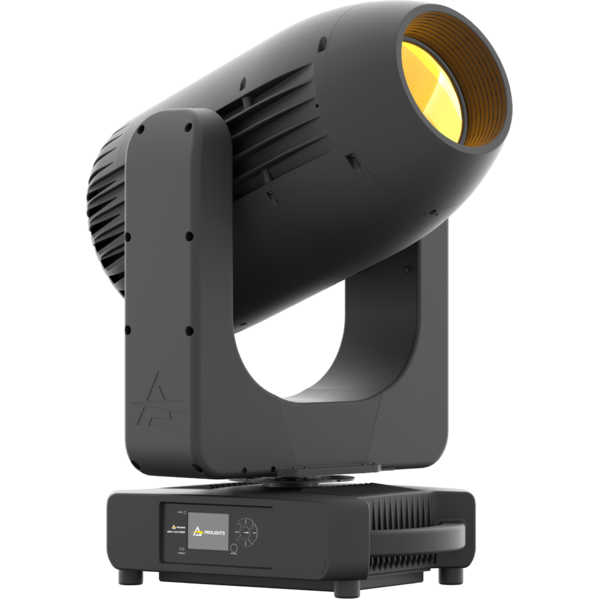

Astra Hybrid420IP

ORDER CODE: ASTRAHYB420IP

IP65 Hybrid moving beam-spot, with a 420W USHIO NSL421 lamp

The Astra Hybrid420IP is the first waterproofed (IP65) hybrid moving light in the Astra range, designed for any large-scale touring applications and exterior installations.
Despite its waterproofed exterior, the unit meets the same performance and features as the indoor version, excelling both as a truly bright beam light and perfect spotlight, with tremendous brightness and superior evenness when comparing with other fixtures in the same category.
The Astra Hybrid420IP's optical system moves linearly from 2.7° to 40°, and it's equipped with a brand new 420W USHIO NSL421 lamp, featuring an equivalent output of higher power consumption units, but in a smaller, lighter, and faster body.
The extensive feature set of the Astra Hybrid420IP includes functions like aerial effects with a fat and parallel beam and crisp projection textures and pattern effects, with linear CMY, three colour-wheels, an animation wheel, two overlapping prisms, frost and two gobo wheels.

Main features:

  • IP65 Hybrid moving light equipped with a 420W USHIO NSL421 lamp
  • Linear zoom ranging from 2.7° to 40°
  • Linear CMY, animation wheel, 2 gobo wheels, 3 colour wheels, 2 overlapping prisms

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 420W USHIO NSL421
  • Source CCT: 7.000K
  • Luminous flux: 35.815
  • Lux: (2.7°) 127.339 lx - (40°) 862lx @15 m
  • Source life expectancy: 6.000 h
OPTICS
  • Zoom range: 2.7° - 40° motorised linear zoom
  • Lens diameter: 153mm / 6.02''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised 16-bit
COLOUR SYSTEM
  • Colour mixing: CMY colour system on 3 gradually fading colour wheels
  • CCT: on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel: 15 dichroic filters on 3 independent colour wheels
DYNAMIC EFFECTS
  • Animation wheel: animation wheel with CW and CCW rotation
  • FX generator: 2 prisms overlap for spectacular aerial effects
  • Circular prism: 8f and 4-f with bi-directional rotation, indexing
  • Frost: linear 0-100%
GOBOS
  • Rotating gobos (wheel1): 9 rotating gobos + open, interchangeable, indexing
  • Gobo size (wheel1): outer: 15,9 mm - image: 12 mm - thickness: 1,1 mm
  • Fixed gobos: 18 fixed gobos + open
CONTROL
  • Supported Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • DMX channels: 30ch
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: for remote addressing and parameter configuration
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via menu with internal memory or via USB - DMX interface (UPBOXPRO/UPBOX2) not included
  • Other: 16bit control of dimmer
MOVEMENT
  • Pan: 540° - 16-bit resolution
  • Tilt: 270° - 16-bit resolution
  • Position feedback: automatic repositioning after external movement
  • Pan / tilt lock: for transport and maintenance
ELECTRONICS
  • Dimmer: linear 0 ~ 100% mechanical dimmer
  • Strobe / shutter: 1 - 28 flash(s), mechanical
  • Display battery: included, self-charging battery backup
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 590W
  • Standby power: 87W
  • Power factor: > 0,96
CONNECTIONS
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN
PHYSICAL
  • IP rating: IP65 for temporary outdoor use (*)
  • Cooling: filtered forced-air with low-noise fan
  • Housing: Weatherproof IP65 construction
  • Finish: black (RAL 9004)
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 441x741x310mm / 17.36''x29.17''x12.2''
  • Weight: 42,1kg / 92.81lbs
INSTALLATION
  • Suspension and fixing: any position with quick-lock omega brackets
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
BOX CONTENT

Versions

Accessories & Related Products

OSIPPLUS
OSIPPLUS
(Optional)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
FCLASTRAH420IP
FCLASTRAH420IP
(Optional)
Flight case for 2 pcs of ASTRAHYB420 / ASTRAHYB420IP / ASTRAPROFILE600IP
OSIPD13
OSIPD13
(Included)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

User manual

DMX chart & personalities

File name File size Download
DMX chartAstrahyb420ip_DMX_CHARTS.pdf(22/06/2023)733KB

ASTRAHYB420IP Firmware rev. 1.0.10

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
PhotometricsAstrahyb420ip_PHOTOMETRICS_REPORT.pdf(31/03/2022)3MB
DialuxDownload DIALux product catalogue-

Tech docs

File name File size Download
Color DocumentAstrahyb420ip_COLOR.pdf(21/04/2022)164KB
Gobos DocumentAstrahyb420ip_GOBOS.pdf(21/04/2022)293KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.10 STABLE 11/10/2023 Improvement:
  • Fan management improvements.
