ECLCYC050
PROLIGHTS

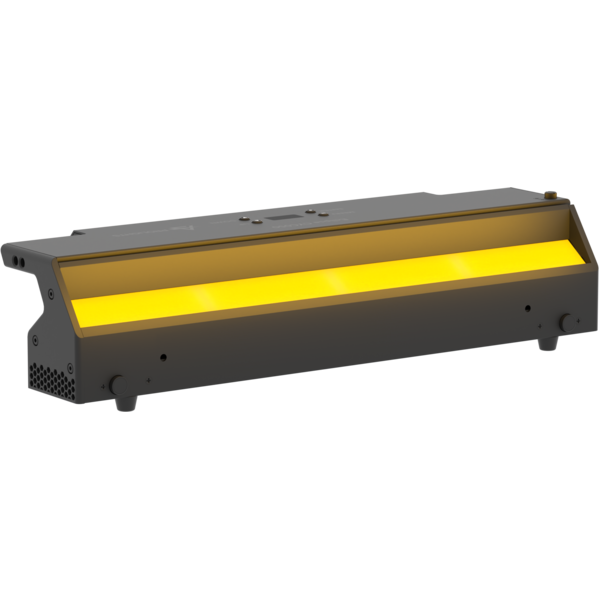

EclCyclorama 050

ORDER CODE: ECLCYC050

170W linear soft CYC and flood light with RGB+Warm White colour mixing

EclCyclorama 050 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances. The Optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

SPEKTRA

Main features:

  • RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours.
  • Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
  • Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
  • Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.
See variants

PHOTO GALLERY

EclCyclorama 050
EclCyclorama 050
EclCyclorama 050
EclCyclorama 050
EclCyclorama 050
EclCyclorama 050
EclCyclorama 050
EclCyclorama 050

Technical specifications

LIGHT SOURCE
  • Source: 170W RGB + Warm White
  • Luminous flux: (with 40°x80° filter on board) 13'896 @Full
  • Lux: @1 m to wall and 1,5 m height @ full (with standard filter) 625 lx - (with 40° filter) 1'530 lx - (with 10°x60° filter) 1'590 lx - (with 30°x60° filter) 1'690lx
  • CRI: 93 @3.200 K; 91 @5.600 K
  • R9: 91 @3.200 K; 95 @5.600 K
  • TLCI: 87 @5.600 K
  • TM30 Rf: 88,8 @5.600 K
  • TM30 Rg: 107,4 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (VxH) 40°x80°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: +/- 8° angle adjusting
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 180W
  • Standby power: 110V (60Hz): 6W; 230V (50Hz): 6,4W
  • Power factor: >0,94
PHYSICAL
  • IP rating: IP20
  • Cooling: heat sink without fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 500x119x148mm / 19.69''x4.69''x5.83''
  • Weight: 5kg / 11.02lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

OS25PLUS
OS25PLUS
(Optional)
Quick-lock omega bracket, M12 hole
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
FCLECLCYC
FCLECLCYC
(Optional)
Flightcase for 4 pcs of ECLCYC100 or 8 pcs ECLCYC050 divided in two layers
ECLCYC050PO
ECLCYC050PO
(Optional)
Pole operated aluminium yoke bracket for pan/tilt for ECLCYC050
ECLCYCBD050
ECLCYCBD050
(Optional)
Upper and lower barndoors for adjust the light beam for ECLCYC050
ECLCYCF40L050
ECLCYCF40L050
(Optional)
Light diffusion filter for ECLCYC series projectors, 40°, lenght 50 cm
ECLCYCF1060L050
ECLCYCF1060L050
(Optional)
Light diffusion filter for ECLCYC series projectors, 10°x60°, lenght 50 cm
ECLCYCF3060L050
ECLCYCF3060L050
(Optional)
Light diffusion filter for ECLCYC series projectors, 30°x60°, lenght 50 cm
ECLCYCOHB
ECLCYCOHB
(Optional)
Orientable hanging bracket for ECLCYC series projectors
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclcyc050_LETTER_DATASHEET_(EN).pdf(28/09/2021)310KB
Letter datasheetEclcyc050_A4_DATASHEET_(EN).pdf(21/10/2024)352KB
Tender SpecificationEclcyc050_TENDER_SPECIFICATION.pdf(24/06/2020)4MB

User manual

File name File size Download
User manualEclcyc050_USER_MANUAL_EN.pdf(19/06/2023)5MB
User manualEclcyc050_GUIDE.pdf(06/07/2020)12MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB
User manualEclcyc050_Wireless_Protocol_Compatibilit_EN.pdf(12/06/2023)4MB

DMX chart & personalities

File name File size Download
DMX chartEclcyc050_DMX_CHARTS.pdf(24/04/2020)61KB
DMX chartEclcyc050_DMX_CHARTS.pdf(19/06/2023)321KB

ECLCYC050 Firmware rev. 2.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclcyc050_1chtheater.hedDownload
prolights_eclcyc050_1chtheatre.hedDownload
prolights_eclcyc050_2chtheater.hedDownload
prolights_eclcyc050_4ch2tour.hedDownload
prolights_eclcyc050_4chtheater.hedDownload
prolights_eclcyc050_5chtheater.hedDownload
prolights_eclcyc050_6ch1theater.hedDownload
prolights_eclcyc050_6ch2tour.hedDownload
prolights_eclcyc050_10chtheater.hedDownload
prolights_eclcyc050_10chtour.hedDownload
prolights_eclcyc050_15ch1theater.hedDownload
prolights_eclcyc050_15ch2tour.hedDownload
prolights_eclcyc050_17chtheater.hedDownload
eclcyc050_theatre_1ch.fdfDownload
eclcyc050_theatre_2ch.fdfDownload
eclcyc050_theatre_4ch.fdfDownload
eclcyc050_theatre_5ch.fdfDownload
eclcyc050_theatre_6ch.fdfDownload
eclcyc050_theatre_10ch.fdfDownload
eclcyc050_theatre_15ch.fdfDownload
eclcyc050_theatre_17ch.fdfDownload
eclcyc050_tour_4ch.fdfDownload
eclcyc050_tour_6ch.fdfDownload
eclcyc050_tour_10ch.fdfDownload
eclcyc050_tour_15ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclcyclorama050@rev_1.6.gdtfDownload
manufacturer fixture library (Link) Link
prolights@eclcyclorama050@10ch_theatre@rev_1.6.xmlDownload
prolights@eclcyclorama050@10ch_tour@rev_1.6.xmlDownload
prolights@eclcyclorama050@15ch_theatre@rev_1.6.xmlDownload
prolights@eclcyclorama050@15ch_tour@rev_1.6.xmlDownload
prolights@eclcyclorama050@17ch_theatre@rev_1.6.xmlDownload
prolights@eclcyclorama050@1ch_theatre@rev_1.6.xmlDownload
prolights@eclcyclorama050@2ch_theatre@rev_1.6.xmlDownload
prolights@eclcyclorama050@4ch_theatre@rev_1.6.xmlDownload
prolights@eclcyclorama050@4ch_tour@rev_1.6.xmlDownload
prolights@eclcyclorama050@5ch_theatre@rev_1.6.xmlDownload
prolights@eclcyclorama050@6ch_theatre@rev_1.6.xmlDownload
prolights@eclcyclorama050@6ch_tour@rev_1.6.xmlDownload
ecl cyc.rarDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ecl cyc 50 1 channel theatre.v3fDownload
ecl cyc 50 2 channel theatre.v3fDownload
ecl cyc 50 4 channel theatre.v3fDownload
ecl cyc 50 4 channel tour.v3fDownload
ecl cyc 50 5 channel theatre.v3fDownload
ecl cyc 50 6 channel theatre.v3fDownload
ecl cyc 50 6 channel tour.v3fDownload
ecl cyc 50 10 channel theatre.v3fDownload
ecl cyc 50 10 channel tour.v3fDownload
ecl cyc 50 15 channel theatre.v3fDownload
ecl cyc 50 15 channel tour.v3fDownload
ecl cyc 50 17 channel theatre.v3fDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAEclcyc050_3D.rfa(23/04/2021)424KB
3D sketchupECLCYC050_3D_SKETCHUP.zip2MB
2DEclcyc050_CAD_2D.dwg(19/06/2020)1MB
2D cad symbolsEclcyc050_CAD_2DSYMBOLS.dwg(08/06/2020)58KB
3DECLCYC050_3D.zip1MB
Technical drawingEclcyc050_TECHNICAL_DRAWING.pdf(19/06/2020)107KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(08/06/2020)237KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProfessional Uploader(03/03/2025)19MB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.0 STABLE 23/10/2024 Improvement:
  • Improved colorimetry matching between different hardware Rev.
Fixed Bug:
  • GMP/Tint Channel is not working properly.

Note: Hardware revision 3.0: NET PCB is updated using ".PRL" file format, ignore ".EHEX" file in this case		 Rev. 1.0
Rev. 1.1
Rev. 2.0
Rev. 3.0

Info Request

News

PROLIGHTS lights Ocean Court at the National Maritime Museum in London
December 02, 2025
PROLIGHTS lights Ocean Court at the National Maritime Museum in London
Ocean Court , the glass-roofed atrium at the heart of the National Maritime Museum in Greenwich, London, has been equipped with a new event lighting system featuring PROLIGHTS fixtures. The installation, delivered by A.C. Special Projects (ACSP ) in partnership
Music & Lights announces the exclusive distribution of Unilumin Rental in Italy
December 01, 2025
Music & Lights announces the exclusive distribution of Unilumin Rental in Italy
Music & Lights is pleased to announce the signing of an exclusive distribution agreement for the Italian market for the Rental solutions of Unilumin , a global leader in professional LED display technology. Effective immediately, Music & Lights will
PROLIGHTS launches Astra Profile1200IP: high-output IP65 LED moving profile with 54,000 lm and full framing
November 26, 2025
PROLIGHTS launches Astra Profile1200IP: high-output IP65 LED moving profile with 54,000 lm and full framing
  PROLIGHTS launches the Astra Profile1200IP , a large-format IP65 LED moving profile engineered to deliver high brightness and robust performance for large outdoor stages and arenas. At its core is a 1,400 W white LED engine driven at 1,200 W (7,000
HaluPix Duo Delivers Stunning Visual Energy at When We Were Young Festival
November 24, 2025
HaluPix Duo Delivers Stunning Visual Energy at When We Were Young Festival
The When We Were Young festival took place in Las Vegas , bringing some of the most iconic names in alternative and pop-punk music back to the stage. Among this year's highlights on the 7-Eleven Stage was the performance by Panic! At The Disco , whose
RTP upgrades its news studios in Lisbon and Porto with PROLIGHTS
November 13, 2025
RTP upgrades its news studios in Lisbon and Porto with PROLIGHTS
The new RTP news studios in Lisbon (Marechal Gomes da Costa) and Porto (Centro de Produção do Norte) have been equipped with an advanced PROLIGHTS LED lighting system, supplied and installed by SLS - Sound and Light Systems , in collaboration with Pantalha
PROLIGHTS illuminates Acea's space at the Rome Film Fest
November 04, 2025
PROLIGHTS illuminates Acea's space at the Rome Film Fest
The 19th edition of the Rome Film Fest  has once again illuminated the Eternal City, and PROLIGHTS played a key role in shaping the luminous identity of Acea 's presence as Main Partner of the event. At the Auditorium Parco della Musica, ARETI provided
A Spooky-Yet-Bright Halloween at Carved with PROLIGHTS
October 28, 2025
A Spooky-Yet-Bright Halloween at Carved with PROLIGHTS
At the enchanting Descanso Gardens in Los Angeles , California, a family-friendly, Halloween-themed immersive experience called Carved was brought to life. The event was developed using the existing infrastructure of Enchanted Forest of Light, the gardens'
PROLIGHTS introduces EclExpo FloodIP series: IP-rated floodlight family available in multiple formats
October 20, 2025
PROLIGHTS introduces EclExpo FloodIP series: IP-rated floodlight family available in multiple formats
PROLIGHTS brings its celebrated EclExpo Flood platform outdoors with two sealed IP65 base models: EclExpo Flood150IP and EclExpo Flood300IP, each available in Full Color and Variable White variants. Designed to replace classic CDM/HMI floods for trade
A gothic glow with PROLIGHTS for Netflix's Wednesday Season two premiere
October 14, 2025
A gothic glow with PROLIGHTS for Netflix's Wednesday Season two premiere
Cockatoo Island in Sydney was transformed by renowned global experience agency Rizer into a gothic playground for the Season Two launch of Netflix's Wednesday , where eerie installations and atmospheric lighting brought the show's world to life against
PROLIGHTS Introduces ArcPod 300FCLT: long-throw LED wash
October 08, 2025
PROLIGHTS Introduces ArcPod 300FCLT: long-throw LED wash
PROLIGHTS unveils ArcPod 300FCLT , a high-performance, long-throw LED wash built for large-scale architectural lighting on skyscrapers, stadiums, city towers and bridges. With native 2.5° ultra-narrow optics, the 260 W fan-free fixture delivers up to
Lumina Electronic Festival powered by PROLIGHTS
October 03, 2025
Lumina Electronic Festival powered by PROLIGHTS
The historic Albanian city of Korçë , known for its vibrant cultural scene, recently hosted the Lumina Electronic Festival , where music and technology fused into an immersive environment powered by PROLIGHTS . Lighting design by Florind Tenolli , operated
Košice State Philharmonic Upgrades to PROLIGHTS
September 26, 2025
Košice State Philharmonic Upgrades to PROLIGHTS
Set within one of Slovakia's leading cultural institutions, the Košice State Philharmonic has completed a major upgrade of its concert hall lighting, replacing legacy halogen fixtures with an all-LED system to enhance visual quality, efficiency, and
Subscribe to our Newsletter
Loading...
