ECLFR2KPT
PROLIGHTS

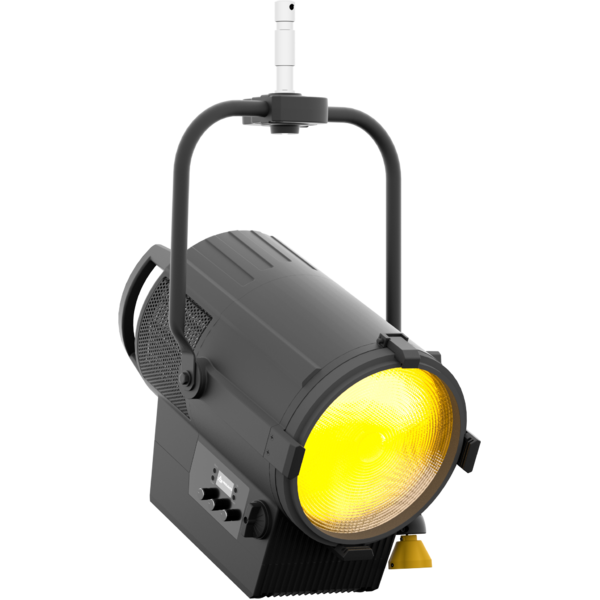

EclFresnel 2KPTW

LED Fresnel pole operated FC and Tunable White with colour correction, to replace 2.000W lamp

EclFresnel 2KPTW is an advanced LED replacement of traditional 2K Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and extensive colour reproduction. The optical system harnesses the power of a 500W custom LED with 6 colours to create an even projection, beautiful colours and precise whites, with the option to apply +/- green and magenta correction to match other light sources. Featuring HDL dimming and tuning from 2.800 K to 10.000 K, the EclFresnel 2KPTW delivers both on performance and quality of output that is demanded from this level of light.

Main features:

  • Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Truly silent operation making it perfect for studio and stage use
See variants

PHOTO GALLERY

EclFresnel 2KPTW
EclFresnel 2KPTW
EclFresnel 2KPTW
EclFresnel 2KPTW
EclFresnel 2KPTW
EclFresnel 2KPTW

Technical specifications

LIGHT SOURCE
  • Source: 500W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: 2.800 K - 10.000
  • Luminous flux: (17°) 10'100 lm - (76°) 13'400 @Full
  • Lux: (17°) 3'864 lx - (76°) 710lx @5 m full
  • CRI: 89 @3.200 K; 90,7 @5.600 K
  • R9: 80 @3.200 K; 85,4 @5.600 K
  • TLCI: 87 @5.600 K
  • TM30 Rf: 89,4 @3.200 K; 86,2 @5.600 K
  • TM30 Rg: 101,6 @3.200 K; 102,1 @5.600 K
  • Source life expectancy: > 70.000 h
OPTICS
  • Zoom range: 17° - 76° manual
  • Lens diameter: 250mm / 9.84''
  • Lens type: fresnel zoom lens
  • Other: spigot, barndoor and gel frame included
COLOUR SYSTEM
  • Colour mixing: 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 - 1 / 7 - 2 / 8 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
BODY
  • Pan: 360° with manual regulation
  • Tilt: 180° with manual regulation
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Body: Sturdy die-cast aluminium body
  • Body colour: black (RAL 9004) or white (RAL 9010)
  • Other: Spigot 28 mm
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 400W
  • Output (at 230V): 5 units on a single power line
  • Power factor: >0,93
PHYSICAL
  • IP rating: IP20
  • Cooling: heat pipe with low-noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 401x576x456mm / 15.79''x22.68''x17.95''
  • Weight: 18kg / 39.68lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
ECLFR2KPTW
ECLFR2KPTW
Black
ECLFR2KPTWWH
ECLFR2KPTWWH (DISCONTINUED)
White

Accessories & Related Products

9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFR2KBD
ECLFR2KBD
(Included)
Barn door with directional flaps to adjust the light beam
ECLFR2KTPG
ECLFR2KTPG
(Included)
Gel filter frame for ECLFR2K projectors
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
EFSBUFDS
EFSBUFDS
(Optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfr2kptw_A4_DATASHEET_(IT).pdf(04/05/2021)630KB
Letter datasheetEclfr2kpt_A4_DATASHEET_(EN).pdf(31/10/2022)653KB

User manual

File name File size Download
User manualEclfr2kptw_USER_MANUAL_EN.pdf(17/01/2025)6MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

DMX chart & personalities

File name File size Download
DMX chartEclfr2kptw_DMX_CHARTS.pdf(17/01/2025)147KB

ECLFR2KPTW Firmware rev. 1.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

ECLFR2KPTWWH Firmware rev. 1.3

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
PhotometricsEclfr2kpt_PHOTOMETRICS_REPORT.pdf(27/05/2021)4MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings

File name File size Download
3D sketchupECLFR2KPT_3D_SKETCHUP.zip6MB
2DEclfr2kpt_CAD_2D.dwg(29/12/2021)12MB
3DECLFR2KPT_3D.zip2MB
2D cad symbolsEclfr2kptw_CAD_2DSYMBOLS.dwg(29/12/2021)89KB
Technical drawingEclfr2kpt_TECHNICAL_DRAWING.pdf(29/12/2021)795KB
VectorWorksECLFR2KPT_SYMBOLS.zip2MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 26/06/2023 New function:
  • Added 11CH DMX mode.
 Rev. 1
Rev. 2
Rev. 1.0
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 07/10/2020 Changed default setting on White Balance function from OFF to ADJUST. Rev. 2
