ECLFRCTPL
PROLIGHTS

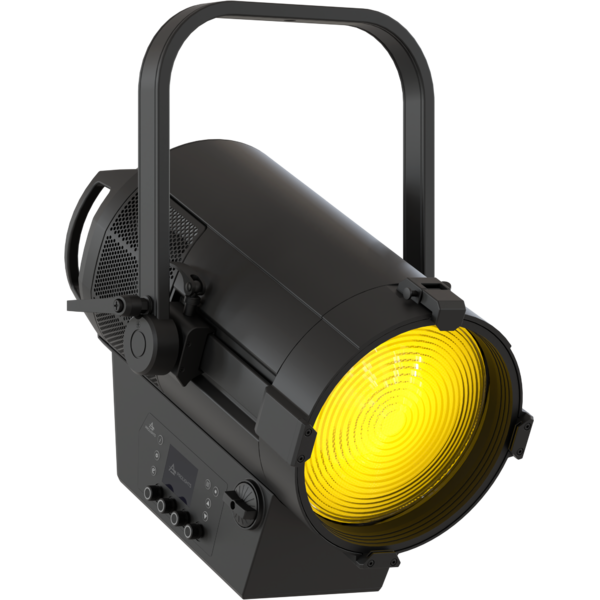

EclFresnel CT+L

600 W indoor Led Fresnel with 6 color source, 250mm-10'' lens

EclFresnel CT+L is a 600W LED Fresnel, engineered with a new 6 colours light source and  a 250mm / 10'' glass Fresnel lens.
The newly designed optical system allows a greater zoom range from 10° to 77°, keeping and high efficiency also at a narrow beam angle.
The Spektra calibrated light source delivers consistency in operations, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.
Fixtures of the EclFresnel CT+ range brings more power in their processing unit, offering an ultimate user experience in terms of  control of the light and colours and as well more intuitive stand alone operations through a larger display, backlight encoders,  and advanced connectivity both wired and wireless.
Completed by a wide range of accessories including 8 leaf barndoors and P.O. bracket, the EclFresnel CT+ also performs silent, allowing to be the indispensable workhorse for Broadcast, Film and Theatre applications.

SPEKTRA

Main features:

  • 600W 6 colour LED Fresnel with 250mm/10'' glass lens
  • 10-77° Manual zoom system
  • High quality CCT reproduction and advanced color control
  • New UI with 2.8'' display and 4 backlit pushable encoder
See variants

PHOTO GALLERY

EclFresnel CT+L
EclFresnel CT+L
EclFresnel CT+L
EclFresnel CT+L
EclFresnel CT+L
EclFresnel CT+L

Technical specifications

LIGHT SOURCE
  • Light source: Proprietary source manufactured by PROLIGHTS
  • Source: 600W 6 colour LEDs source
  • Luminous flux: (10°) 7'706 lm - (77°) 16'165 @Full
  • Lux: (10°) 7'873 lx - (77°) 845lx @5 m full
  • CRI: 97,8 @3.200K; 97,4 @5.600 K
  • R9: 91 @3200K; 92 @5.600 K
  • TLCI: 91 @3200K; 95 @5.600 K
  • TM30 Rf: > 94 @3.200K; > 94 @5.600 K
  • TM30 Rg: < 100 @3.200K; < 101 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 10° - 77° manual
  • Lens diameter: 250mm / 9.84''
  • Lens type: AR-coated glass Fresnel lens providing a classic soft light fall-off
  • Additional optics: PC lens available as accessory
  • Other: spigot, barndoor and gel frame included
COLOUR SYSTEM
  • Colour control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
  • Colour mixing: 6 colour LEDs source
  • CCT: linear CCT adjustment from 1.850 K-20.000K
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX (optional)
  • Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
  • RDM: for remote addressing and parameter configuration
  • Display: 2.8'' Color display
  • Firmware upgrade: via DMX with UPBOXPRO (not included)
  • Stand Alone: 4 pushable RGB backlit encoder
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 6 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 1282 to 40000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48V
  • Max power consumption (230V): 600W
  • Output (at 230V): 5 units on a single power line
  • Power factor: > 0,94
CONNECTIONS
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: WEIPU SF12 4P-F
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: XLR 3p for 48V
PHYSICAL
  • IP rating: IP20
  • Cooling: heat pipe with low-noise fan
  • Housing: Die-cast magnesium alloy
  • Finish: black (RAL 9004)
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 420x663x495mm / 16.54''x26.1''x19.49''
  • Weight: 17,4kg / 38.36lbs
INSTALLATION
  • Bracket system: Sliding bracket for adjustable weight balance
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Other: Strengthened zoom movement system for enhanced durability and stability
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ECLFRCTPLBK
ECLFRCTPLBK
Black

Accessories & Related Products

ECLFRCTPLAHK
ECLFRCTPLAHK
(Optional)
Longer accessory holder kit for ECLFRCTP series
FCLECLFRCTPL
FCLECLFRCTPL
(Optional)
Flight case for 2 pcs of ECLFRCTPL / LIP series
FCLECLFRCTPLR2
FCLECLFRCTPLR2
(Optional)
Flight case for 2 pcs of ECLFRCTPL / LIP series
ECLFRCTPLBAG1U
ECLFRCTPLBAG1U
(Optional)
Empty ABS case for 1 pc of ECLFRCTPL / LIP series
ECLFRCTPLKPOYO
ECLFRCTPLKPOYO
(Optional)
Pole operated aluminium yoke bracket and zoom kit for ECLFRCTPL series
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
ECLFRCTPLFFBK
ECLFRCTPLFFBK
(Included)
Filter frame for ECLFRCTPSL series, black
ECLFRCTPLBDBK
ECLFRCTPLBDBK
(Included)
Barn door 8 directional flaps to adjust the light beam for ECLFRCTPL
EFSBUFDS
EFSBUFDS
(Optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
LRTM2SPIBK
LRTM2SPIBK
(Optional)
CRMX Timo Two SPI kit, black
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0670B
RSR0670B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfrctpl_A4_DATASHEET_(EN).pdf(04/04/2025)749KB
Tender SpecificationEclfrctpl_TENDER_SPECIFICATION.pdf(26/03/2025)351KB

User manual

File name File size Download
User manualEclfrctpl_USER_MANUAL_EN.pdf(19/12/2025)10MB
User manualEclfrctpl_General_Safety_Information_EN.pdf(11/01/2024)3MB

DMX chart & personalities

File name File size Download
DMX chartEclfrctpl_DMX_CHARTS.pdf(19/12/2025)1MB

ECLFRCTPL Firmware rev. 1.1.10.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclfrctpl_3D.skp(13/11/2023)1MB
2DEclfrctpl_CAD_2D.dwg(10/11/2023)19MB
3DEclfrctpl_CAD_3D.dwg(10/10/2023)708KB
2D cad symbolsEclfrctpl_CAD_2DSYMBOLS.dwg(13/11/2023)42KB
Technical drawingEclfrctpl_TECHNICAL_DRAWING.pdf(10/11/2023)945KB
VectorWorksECLFRCTPL_SYMBOLS.vwx(14/11/2023)1MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download
Noise ReportEclfrctpl_NOISE_REPORT.pdf(06/12/2023)699KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.10.0 STABLE 29/12/2025 New Functions:
  • Added Fan Mode QUIET 3 CLO/DLO:
    • fixed fan speed 15% if Dimmer>0%
    • fixed fan speed 0% if Dimmer=0%
  • Added Fan Mode QUIET 3 CLO/DLO in Control Channel as follow:
    • Fan Mode Quiet 3 Dynamic Output (DLO) = 98-99 dmx value
    • Fan Mode Quiet 3 Constant Output (CLO) = 100-101 dmx value
  • Added on Fan Control Channel:
    • Fan Mode Quiet 3 DLO = 130-131 dmx value
    • Fan Mode Quiet 3 CLO = 132-133 dmx value
  • Added CCT 2000K/2500K/2800K/2900K/3000K/3200K + Tungsten Emulation in UNO/DUO Mode Factory Presets.
Improvement:
  • Fan speed in Fan Mode Manual starts from 15% up to 100%.
 Rev. 1.0
