ECLFRCTPSIP
PROLIGHTS

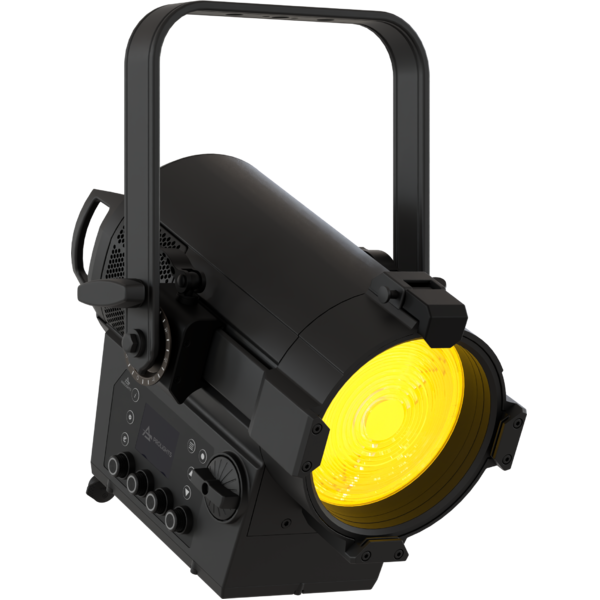

EclFresnel CT+SIP

200 W IP65 Led Fresnel with 6 color source, 150mm-6'' lens

EclFresnel CT+SIP is a 200W LED Fresnel, engineered with a new 6 colours light source and  a 150mm / 6'' glass Fresnel lens. Being IP65 rated, the unit is both water and dust resistant ensuring safe application in any set or extreme locations, keeping lightweight and not scaling up in sizes.
The newly designed optical system allows a greater zoom range from 9° to 73°, keeping and high efficiency also at a narrow beam angle.
The Spektra calibrated light source delivers consistency in operations, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.
Fixtures of the EclFresnel CT+ range brings more power in their processing unit, offering an ultimate user experience in terms of  control of the light and colours and as well more intuitive stand alone operations through a larger display, backlight encoders,  and advanced connectivity both wired and wireless.
Completed by a wide range of accessories including 8 leaf barndoors and P.O. bracket, the EclFresnel CT+ also performs silent, allowing to be the indispensable workhorse for Broadcast, Film and Theatre applications.

SPEKTRA

Main features:

  • 200 W 6 IP65 colour LED Fresnel with 150mm/6'' glass lens
  • 9-73° Manual zoom system
  • High quality CCT reproduction and advanced color control
  • New UI with 2.4'' display and 4 backlit pushable encoder
See variants

PHOTO GALLERY

EclFresnel CT+SIP
EclFresnel CT+SIP
EclFresnel CT+SIP
EclFresnel CT+SIP
EclFresnel CT+SIP
EclFresnel CT+SIP

Technical specifications

LIGHT SOURCE
  • Light source: Proprietary source manufactured by PROLIGHTS
  • Source: 200W 6 colour LEDs source
  • Luminous flux: (9,7°) 1'922 lm - (73,5°) 4'795 @4.000 K
  • Lux: (9,7°) 2'270 lx - (73,5°) 286lx @5m 4.000 K
  • CRI: 96,6 @3.200K; 97 @5.600 K
  • R9: 87 @3200K; 96 @5.600 K
  • TLCI: 87 @3200K; 94 @5.600 K
  • TM30 Rf: > 94 @3.200K; > 94 @5.600 K
  • TM30 Rg: < 101 @3.200K; < 102 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 9,7° - 73,5° manual
  • Lens diameter: 6'' / 150mm / 0.24''
  • Lens type: Fresnel glass lens with AR coating
  • Lens effect: Glass Fresnel lens providing a classic light fall-off
  • Additional optics: PC lens available as accessory
  • Other: spigot, barndoor and gel frame included
COLOUR SYSTEM
  • Colour control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
  • Colour mixing: 6 colour LEDs source
  • CCT: Linear CCT adjustment from 1.850 K-20.000K
BODY
  • Bracket system: Sliding bracket for adjustable weight balance
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Body: weatherproof IP65 construction with die-cast magnesium alloy
  • Body colour: RAL 9004
  • Other: Strengthened zoom movement system for enhanced durability and stability
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: 4 pushable RGB backlit encoder
  • Wireless Control: included, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
  • RDM: RDM for remote monitoring and settings
  • Display: 2.4'' Color display
  • Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 6 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 1282 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48V
  • Max power consumption: 200W
  • Output (at 230V): 17 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor use (*)
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: IP65 WEIPU SF12 4P-F
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Low Voltage DC connector: XLR 3p for 48V
  • Dimensions (WxHxD): 286x513x356mm / 11.26''x20.2''x14.02''
  • Weight: 7,6kg / 16.76lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ECLFRCTPSIPBK
ECLFRCTPSIPBK
Black

Accessories & Related Products

ECLFRCTPLAHK
ECLFRCTPLAHK
(Optional)
Longer accessory holder kit for ECLFRCTP series
ECLFRCTPSPCLK
ECLFRCTPSPCLK
(Optional)
PC lens kit for ECLFRCTPS series
FCLECLFRCTPS
FCLECLFRCTPS
(Optional)
Flight case for 6 pcs of ECLFRCTPS / SIP series
FCLECLFRCTPSR2
FCLECLFRCTPSR2
(Optional)
Flight case for 6 pcs of ECLFRCTPS / SIP series
ECLFRCTPSBAG1U
ECLFRCTPSBAG1U
(Optional)
Empty ABS case for 1 pc of ECLFRCTPS /SIP series
ECLFRCTPSKPOYO
ECLFRCTPSKPOYO
(Optional)
Pole operated aluminium yoke bracket and zoom kit for ECLFRCTPS series
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
ECLFRCTPSFFBK
ECLFRCTPSFFBK
(Included)
Filter frame for ECLFRCTPS series, black
ECLFRCTPSBDBK
ECLFRCTPSBDBK
(Included)
Barn door 8 directional flaps to adjust the light beam for ECLFRCTPS, black
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
EFSBUFDS
EFSBUFDS
(Optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfrctpsip_A4_DATASHEET_(EN).pdf(04/09/2024)855KB
Tender SpecificationEclfrctpsip_TENDER_SPECIFICATION.pdf(17/07/2024)370KB

User manual

File name File size Download
User manualEclfrctpsip_USER_MANUAL_EN.pdf(21/08/2025)10MB
User manualEclfrctpsip_General_Safety_Information_EN.pdf(11/01/2024)3MB

DMX chart & personalities

File name File size Download
DMX chartEclfrctpsip_DMX_CHARTS.pdf(21/08/2025)375KB

ECLFRCTPSIP Firmware rev. 1.1.09.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLFRCTPSIP_3D_SKETCHUP.zip1MB
2D cad symbolsEclfrctpsip_CAD_2DSYMBOLS.dwg(26/09/2023)121KB
3DEclfrctpsip_CAD_3D.dwg(26/09/2023)789KB
2DEclfrctpsip_CAD_2D.dwg(07/11/2023)24MB
Technical drawingEclfrctpsip_TECHNICAL_DRAWING.pdf(07/11/2023)898KB
VectorWorksECLFRCTPSIP_SYMBOLS.vwx(14/11/2023)688KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download
Noise ReportEclfrctpsip_NOISE_REPORT.pdf(06/12/2023)699KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.09.0 STABLE 01/10/2025 Improvement:
  • Added a 25% intensity jump to the R, G, and B encoders when working in Stand Alone RGB. Now, the RGB and Dimmer Encoders have the same % jump when pressed.
