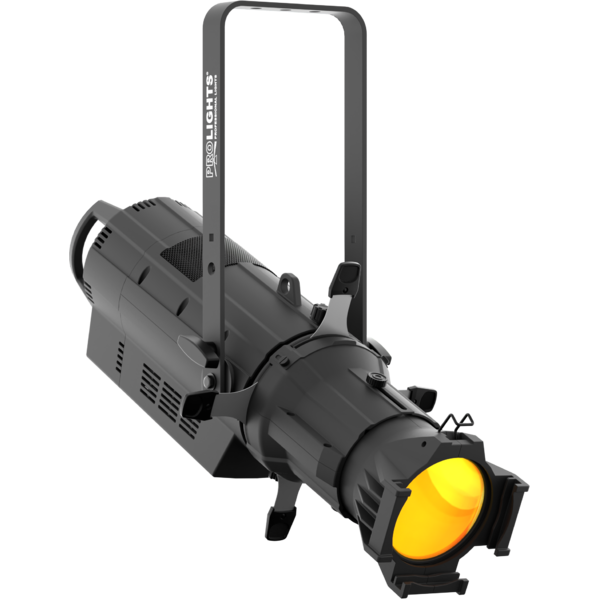

EclProfile HDTWC

91x3,5W Tunable White and colour LED profile with 6 colour LED source

EclProfile HDLTWC is an advanced LED ellipsoidal featuring 6 colour mixing to deliver high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction. The optical system harnesses the power of a 91x3,5W custom LED with 6 colours to create an even beam with clean shutter cuts and beautiful sharp or soft edge gobo focusing. Featuring HDL dimming and tuning from 2.800 K to 10.000 K version, the EclProfile HDLTWC delivers the performance and quality of output demanded from this level of light.

Main features:

  • Tunable White 2.800 K - 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Advanced focusing
See variants

PHOTO GALLERY

EclProfile HDTWC
EclProfile HDTWC
EclProfile HDTWC
EclProfile HDTWC
EclProfile HDTWC
EclProfile HDTWC

Technical specifications

LIGHT SOURCE
  • Source: 91x3,5W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: 2.800 K - 10.000
  • Luminous flux: (5°) TBD; (10°) TBD; (14°) 4'212 lm; (19°) 5'235 lm; (26°) 5'669 lm; (36°) 6'415 lm; (50°) 5'856 @Full
  • Lux: (5°) TBD; (10°) TBD; (14°) 4'965 lx; (19°) 3'084 lx - (26°) 2'018 lx - (36°) 958 lx - (50°) 503lx @5 m full
  • CRI: 89 @3.200 K; 93,6 @5.600 K
  • R9: 90 @3.200 K; 95,4 @5.600 K
  • TLCI: 89 @5.600 K
  • TM30 Rf: 90 @5.600 K
  • TM30 Rg: 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / zoom 15°-30° / zoom 25°-50°
  • Lens type: high-quality glass lens optics
  • Focus: manual
COLOUR SYSTEM
  • Colour mixing: RGBL, orange, royal blue
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 2 / 5 CH1 / 5 CH2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
BODY
  • Body: Sturdy die-cast aluminium body
  • Body colour: black
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 250W
  • Output (at 230V): 14 units on a single power line
  • Power factor: >0,94
PHYSICAL
  • IP rating: IP20
  • Cooling: heat pipe with low-noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 262x551x595mm / 10.31''x21.69''x23.43''
  • Weight: 7,8kg / 17.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
ECLHDTWCBK
ECLHDTWCBK (DISCONTINUED)
Black
ECLHDTWCWH
ECLHDTWCWH (END OF LIFE)
White

Accessories & Related Products

C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 15°-30°
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 25°-50°
ECLLB05BK
ECLLB05BK
(Optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB19BK
ECLLB19BK
(Optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB19WH
ECLLB19WH
(Optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB26BK
ECLLB26BK
(Optional)
26° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB26WH
ECLLB26WH
(Optional)
26° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB36BK
ECLLB36BK
(Optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB36WH
ECLLB36WH
(Optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB50WH
ECLLB50WH
(Optional)
50° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB50BK
ECLLB50BK
(Optional)
50° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLGH
ECLGH
(Optional)
Gobo holder for ECL/ECLFC/ECLHDL profiler
ECLIRIS2
ECLIRIS2
(Optional)
Steel iris diaphragm for ECLFC/ECLHDL profiler
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
ECLPROFILESEF1
ECLPROFILESEF1
(Optional)
Soft edge filter and holder kit for ECL profile projectors series
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
