ECLPANELTWCJR4X1
PROLIGHTS

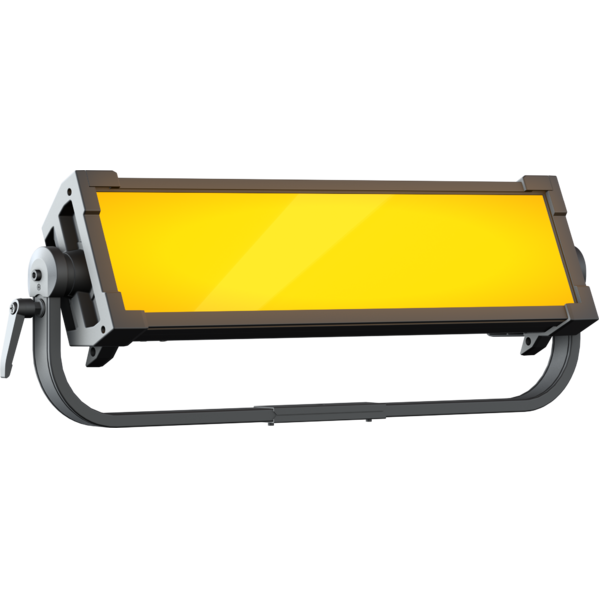

EclPanel TWCJR4x1

ORDER CODE: ECLPANELTWCJR4X1

230W Tunable White and colourful LED soft light with pixels and lighting effects

The EclPanel TWCJR4x1 is a compact LED linear soft light that provides a beautiful, wide source of soft and precise colours.
In addition to this, the EclPanel TWCJR4x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.
The EclPanel TWCJR4x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.
The 2 sections are controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
The EclPanel TWCJR4x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels.
Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48VDC)

SPEKTRA

Main features:

  • 230W RGB + Warm White LED source
  • CRI >94; R9 >95; TLCI >92
  • 2 section pixel control and built-in lighting effects for cinema applications, colour gel matching
  • Silent operation with multiple fan modes
  • Wireless DMX (CRMX+W-DMX), Ethernet connectivity, low voltage inputs (24-36V, 48Vdc)
See variants

PHOTO GALLERY

EclPanel TWCJR4x1
EclPanel TWCJR4x1
EclPanel TWCJR4x1
EclPanel TWCJR4x1
EclPanel TWCJR4x1

Technical specifications

LIGHT SOURCE
  • Source: 230W RGB + Warm White LED
  • Luminous flux: 16'260 @3.200 K with LD filter
  • Lux: 257lx @5 m full
  • CRI: 93 @3.200 K; 94 @5.600 K
  • R9: 96 @3.200 K; 94 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 92 @3.200 K; 90 @5.600 K
  • TM30 Rg: 104 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 102°
  • Field angle: 154°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • Pixel control: 2 linear section control
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Stand Alone: selectable mode through 3 rotatory knobs
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 40000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Low Voltage DC connector: XLR 3p for 48V and XLR 4p for 24V-36V
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48Vdc and 24-36V
  • Max power consumption (230V): 240W
  • Output (at 230V): 9 units on a single power line
  • Standby power: 110VAC/8.5W, 230VAC/8.8W
  • Power factor: >0,93
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 819x276x144mm / 32.24''x10.87''x5.67''
  • Dimensions with PO system (WxHxD): 836x396x144mm / 32.91''x15.59''x5.67''
  • Weight: 10kg / 22.05lbs
  • Weight with PO system: 12.3kg / 27.12lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b> One
ÆtherBox One
(Optional)
IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
FCLPANELJR4X13U
FCLPANELJR4X13U
(Optional)
Flight case for 3 pcs of ECLPANELTWCJR4X1
EPTWCBHEAD
EPTWCBHEAD
(Optional)
Ball head joint for center mount bracket EPTWCBRK series
EPTWCBRKL
EPTWCBRKL
(Optional)
Center mount bracket for ECLPANELTWC and ECLPANELTWCJR4X1
ECLPANELJR4X1POYO
ECLPANELJR4X1POYO
(Optional)
Pole operated aluminium yoke bracket for ECLPANELTWCJR4X1
EPTWCJR4X1FILTINT
EPTWCJR4X1FILTINT
(Optional)
Front intensified diffusion filter for ECLPANELTWCJR4X1
EPTWCJR4X1FILTHD
EPTWCJR4X1FILTHD
(Optional)
Front high diffusion filter (less output) for ECLPANELTWCJR4X1
EPTWCJR4X1FILTMD
EPTWCJR4X1FILTMD
(Included)
Front medium diffusion filter for ECLPANELTWCJR4X1
EPTWCJR4X1FILTLD
EPTWCJR4X1FILTLD
(Optional)
Front low diffusion filter (more output) for ECLPANELTWCJR4X1
EPTWCJR4X1EC30
EPTWCJR4X1EC30
(Optional)
30 degree egg crate for ECLPANELTWCJR4X1
EPTWCJR4X1EC60
EPTWCJR4X1EC60
(Optional)
60 degree egg crate for ECLPANELTWCJR4X1
EPTWCJR4X1EC4C
EPTWCJR4X1EC4C
(Optional)
4 chamber egg crate for ECLPANELTWCJR4X1
EPTWCJR4X1BD
EPTWCJR4X1BD
(Optional)
Barndoor for ECLPANELTWCJR4X1 with 4 directional flaps to adjust the light beam
EPTWCSBJR41
EPTWCSBJR41
(Optional)
SnapBag 4x1 for ECLPANELTWCJR4x1 by DoP choice
EPTWCSG4SBJR4140
EPTWCSG4SBJR4140
(Optional)
40° SnapGrid for SnapBag, 4x1 for ECLPANELTWCJR4x1 by DoP choice
EPTWCSGJR4140
EPTWCSGJR4140
(Optional)
40° SnapGrid, 4x1 for ECLPANELTWCJR4x1 by DoP choice
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpaneltwcjr4x1_LETTER_DATASHEET_(EN).pdf(22/02/2022)361KB
Letter datasheetEclpaneltwcjr4x1_A4_DATASHEET_(IT).pdf(05/05/2021)257KB
Letter datasheetEclpaneltwcjr4x1_A4_DATASHEET_(EN).pdf(08/03/2024)402KB
Tender SpecificationEclpaneltwcjr4x1_TENDER_SPECIFICATION.pdf(08/09/2022)5MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclpaneltwcjr4x1_DMX_CHARTS.pdf(29/11/2023)773KB

ECLPANELTWCJR4X1 Firmware rev. 1.8

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLPANELTWCJR4X1_3D_SKETCHUP.zip2MB
2DECLPANELTWCJR4X1_2D.zip10MB
3DECLPANELTWCJR4X1_3D.zip1MB
2D cad symbolsECLPANELTWCJR4X1_2DSYMBOLS.zip164KB
Technical drawingECLPANELTWCJR4X1_TECHNICAL DRAWINGS.zip668KB
VectorWorksECLPANELTWCJR4X1_SYMBOLS.zip5MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download
Noise ReportEclpaneltwcjr4x1_NOISE_REPORT.pdf(14/01/2022)298KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.8 STABLE 05/08/2024 Improvement:
  • General firmware improvements
  • Improved power management and optimized LED performance
Note:
NET firmware for Hardware revision 1.0 needs to be updated using EHEX file.
NET firmware for Hardware revision 2.0 needs to be updated using PRL file.		 Rev. 1.0
Rev. 2.0
Rev. 2.1

Info Request

News

Music & Lights announces the upcoming arrival of 3,000 sqm of URMIII for the Italian market.
April 09, 2026
Music & Lights announces the upcoming arrival of 3,000 sqm of URMIII for the Italian market.
Music & Lights , exclusive distributor for the Italian market of Unilumin Rental solutions, announces the upcoming arrival of 2,000 sqm of URMIII P2.6 U-Shield   and 1,000 sqm of URMIII P3.9 Outdoor. Two complementary stocks, indoor and outdoor, designed
Astra Profile500LTIP Chosen for Finland's 27th KONGRESSI Meetings & Events
April 08, 2026
Astra Profile500LTIP Chosen for Finland's 27th KONGRESSI Meetings & Events
Now in its 27th edition, KONGRESSI meetings & events , one of Finland 's leading b2b events for the meetings and events industry, brought together the key buyers, professionals and service providers of the sector at Helsinki Expo and Convention Centre
Music & Lights at MIR 2026 with the Latest Innovations and a Large Demo Area
April 07, 2026
Music & Lights at MIR 2026 with the Latest Innovations and a Large Demo Area
Music & Lights will be exhibiting at MIR 2026 , the leading Italian trade show dedicated to multimedia integration and professional entertainment technologies, taking place at the Rimini Expo Center from 12 to 14 April 2026. At Stand A3/087, the largest
PROLIGHTS Returns to MIR 2026 with the Premiere of SunBar FLX
April 07, 2026
PROLIGHTS Returns to MIR 2026 with the Premiere of SunBar FLX
PROLIGHTS will be exhibiting at MIR 2026 , the leading Italian trade show for multimedia integration and professional entertainment technologies, held at the Rimini Expo Center from 12 to 14 April. At Stand A3/087, visitors will have the opportunity to
PROLIGHTS launches SunBar FLX: IP65 linear hybrid strobe and flood fixture
March 30, 2026
PROLIGHTS launches SunBar FLX: IP65 linear hybrid strobe and flood fixture
PROLIGHTS launches SunBar FLX , a linear IP65 hybrid LED strobe and wash fixture that expands the Sun family for high-impact strobes and modular blinder looks. Combining versatility, free-form modularity and extreme output, SunBar FLX is designed for
Kings League Italia returns with a PROLIGHTS lighting system bridging sport and streaming
March 26, 2026
Kings League Italia returns with a PROLIGHTS lighting system bridging sport and streaming
The Second Split of Kings League Italia , the seven-a-side football tournament streamed live across multiple platforms, took place at Fonzies Arena in Cologno Monzese , with a PROLIGHTS lighting system at the heart of a production built around one of
Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
March 24, 2026
Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
Under The Bridge Festival is a one-day open-air music event held beneath the Spijkenisserbrug, the iconic bridge that gives the festival its name and its unmistakable industrial backdrop. With five stages and six zones spanning EDM, house, techno and
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
March 19, 2026
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
The observation tower at Skolnity Ski & Bike Park in Wisła , Poland, part of the Wieża Widokowa network managed by Grupa Pingwina, has been equipped with a permanent architectural lighting installation featuring PROLIGHTS fixtures, supplied by Show
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
March 17, 2026
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
Teatro Scala in Quito , one of Ecuador's foremost venues for high-level artistic productions, has equipped its stage with a comprehensive PROLIGHTS lighting system, implemented by Sonotec , the official PROLIGHTS distributor in Ecuador.  The installation
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
March 12, 2026
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
Philadelphia's Walnut Street Theatre is one of the most historic venues in American theatre. Founded in 1808, it is the longest continually operating theatre in the English-speaking world and hosts a diverse program of productions each season, welcoming
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
March 10, 2026
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
Thirty years after the release of Het is een Nacht , Dutch singer-songwriter Guus Meeuwis headlined the AFAS DOME in Antwerp , one of Belgium's leading indoor arenas, for the first time with a major solo show. Across two memorable nights, his greatest
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
February 26, 2026
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
PROLIGHTS introduces Jet Beam120IP , a budget-friendly, high-power, laser-based IP65 beam moving head built to deliver impressive aerial looks without compromising on performance. Designed for professional indoor and outdoor productions, Jet Beam120IP
Subscribe to our Newsletter
Loading...
