ECLPANELTWCM2X1
PROLIGHTS

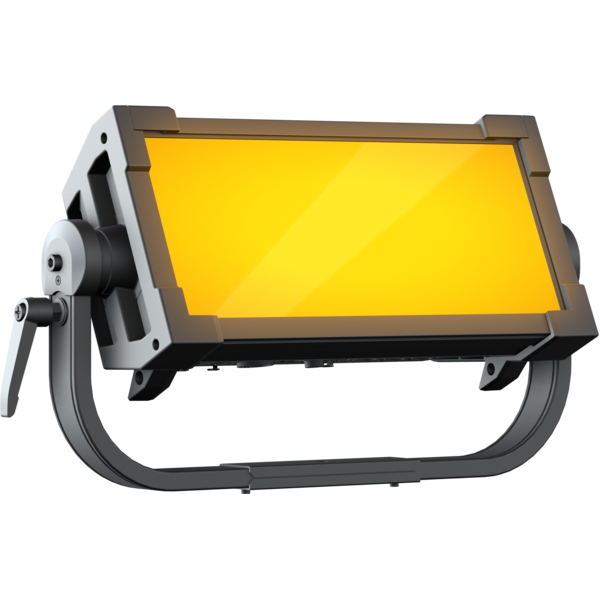

EclPanel TWCMini2x1

ORDER CODE: ECLPANELTWCM2X1

115W Tunable White and colourful LED soft light with pixels and lighting effects

The EclPanel TWCMini2x1 is an ultra-compact LED soft light that provides a beautiful, wide source of soft and precise colours.
In addition to this, the EclPanel TWCMini2x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.
The EclPanel TWCMini2x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.
Each of the 2 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
The EclPanel TWCMini2x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels.
Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48Vdc).

SPEKTRA

Main features:

  • 115W RGB + Warm White LED source
  • CRI >94; R9 >88,8; TLCI >92
  • 2 section pixel control and built-in lighting effects for cinema applications, colour gel matching
  • Silent operation with multiple fan modes
  • Wireless DMX (CRMX+W-DMX), Ethernet connectivity, low voltage inputs (24-36V, 48Vdc)
See variants

PHOTO GALLERY

EclPanel TWCMini2x1
EclPanel TWCMini2x1
EclPanel TWCMini2x1
EclPanel TWCMini2x1
EclPanel TWCMini2x1

Technical specifications

LIGHT SOURCE
  • Source: 115W RGB + Warm White LED
  • Luminous flux: 7'642 @3.200 K with LD filter
  • Lux: 220lx @5 m full
  • CRI: 93 @3.200 K; 94 @5.600 K
  • R9: 90 @3.200 K; 92 @5.600 K
  • TLCI: 91 @5.600 K
  • TM30 Rf: 91 @3.200 K; 90 @5.600 K
  • TM30 Rg: 105 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 98°
  • Field angle: 153°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
  • Colour mixing: RGB + Warm White
  • CCT: Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • Pixel control: 2 linear section control
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Stand Alone: selectable mode through 3 rotatory knobs
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 40000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Low Voltage DC connector: XLR 4p
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48Vdc and 24-36V
  • Max power consumption (230V): 130W
  • Output (at 230V): 19 units on a single power line
  • Power factor: >0,93
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 529x276x144mm / 20.83''x10.87''x5.67''
  • Dimensions with PO system (WxHxD): 547x396x144mm / 21.54''x15.59''x5.67''
  • Weight: 6kg / 13.23lbs
  • Weight with PO system: 8,6kg / 18.96lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
FCLPANELM2X14U
FCLPANELM2X14U
(Optional)
Flight case for 4 pcs of ECLPANELTWCM2X1
EPTWCBHEAD
EPTWCBHEAD
(Optional)
Ball head joint for center mount bracket EPTWCBRK series
EPTWCBRKM
EPTWCBRKM
(Optional)
Center mount bracket for ECLPANELTWCJR and ECLPANELTWCM2X1
EPTWCM2X1FILTINT
EPTWCM2X1FILTINT
(Optional)
Front intensified diffusion filter for ECLPANELTWCM2X1
ECLPANELM2X1POYO
ECLPANELM2X1POYO
(Optional)
Pole operated aluminium yoke bracket for ECLPANELTWCM2X1
EPTWCM2X1FILTERHD
EPTWCM2X1FILTERHD
(Optional)
Front high diffusion filter (less output) for ECLPANELTWCM2X1
EPTWCM2X1FILTERMD
EPTWCM2X1FILTERMD
(Included)
Front medium diffusion filter for ECLPANELTWCM2X1
EPTWCM2X1FILTERLD
EPTWCM2X1FILTERLD
(Optional)
Front low diffusion filter (more output) for ECLPANELTWCM2X1
EPTWCM2X1EC30
EPTWCM2X1EC30
(Optional)
30 degree egg crate for ECLPANELTWCM2X1
EPTWCM2X1EC60
EPTWCM2X1EC60
(Optional)
60 degree egg crate for ECLPANELTWCM2X1
EPTWCM2X1EC2C
EPTWCM2X1EC2C
(Optional)
2 chamber egg crate for ECLPANELTWCM2X1
EPTWCM2X1BD
EPTWCM2X1BD
(Optional)
Barndoor for ECLPANELTWCM2X1 with 4 directional flaps to adjust the light beam
EPTWCSBM21
EPTWCSBM21
(Optional)
SnapBag 2x1 for ECLPANELTWCM2x1 by DoP choice
EPTWCSG4SBM2140
EPTWCSG4SBM2140
(Optional)
40° SnapGrid for SnapBag, 2x1 for ECLPANELTWCM2x1 by DoP choice
EPTWCSGM2140
EPTWCSGM2140
(Optional)
40° SnapGrid, 2x1 for ECLPANELTWCM2x1 by DoP choice
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpaneltwcm2x1_LETTER_DATASHEET_(EN).pdf(22/02/2022)379KB
Letter datasheetEclpaneltwcm2x1_A4_DATASHEET_(IT).pdf(05/05/2021)263KB
Letter datasheetEclpaneltwcm2x1_A4_DATASHEET_(EN).pdf(08/03/2024)413KB
Tender SpecificationEclpaneltwcm2x1_TENDER_SPECIFICATION.pdf(08/09/2022)5MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclpaneltwcm2x1_DMX_CHARTS.pdf(29/11/2023)1MB

ECLPANELTWCM2X1 Firmware rev. 1.6

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLPANELTWCM2X1_3D_SKETCHUP.zip2MB
2DECLPANELTWCM2X1_2D.zip29MB
3DECLPANELTWCM2X1_3D.zip1MB
2D cad symbolsECLPANELTWCM2X1_2DSYMBOLS.zip162KB
Technical drawingECLPANELTWCM2X1_TECHNICAL DRAWINGS.zip1MB
VectorWorksECLPANELTWCM2X1_SYMBOLS.zip5MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download
Noise ReportEclpaneltwcm2x1_NOISE_REPORT.pdf(14/01/2022)288KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 05/08/2024 Improvement:
  • General firmware improvements
  • Improved power management and optimized LED performance
Note:
NET firmware for Hardware revision 1.0 needs to be updated using EHEX file.
NET firmware for Hardware revision 2.0 needs to be updated using PRL file.		 Rev. 1.0
Rev. 2.0
Rev. 2.1

Info Request

News

Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
March 24, 2026
Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
Under The Bridge Festival is a one-day open-air music event held beneath the Spijkenisserbrug, the iconic bridge that gives the festival its name and its unmistakable industrial backdrop. With five stages and six zones spanning EDM, house, techno and
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
March 19, 2026
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
The observation tower at Skolnity Ski & Bike Park in Wisła , Poland, part of the Wieża Widokowa network managed by Grupa Pingwina, has been equipped with a permanent architectural lighting installation featuring PROLIGHTS fixtures, supplied by Show
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
March 17, 2026
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
Teatro Scala in Quito , one of Ecuador's foremost venues for high-level artistic productions, has equipped its stage with a comprehensive PROLIGHTS lighting system, implemented by Sonotec , the official PROLIGHTS distributor in Ecuador.  The installation
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
March 12, 2026
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
Philadelphia's Walnut Street Theatre is one of the most historic venues in American theatre. Founded in 1808, it is the longest continually operating theatre in the English-speaking world and hosts a diverse program of productions each season, welcoming
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
March 10, 2026
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
Thirty years after the release of Het is een Nacht , Dutch singer-songwriter Guus Meeuwis headlined the AFAS DOME in Antwerp , one of Belgium's leading indoor arenas, for the first time with a major solo show. Across two memorable nights, his greatest
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
February 26, 2026
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
PROLIGHTS introduces Jet Beam120IP , a budget-friendly, high-power, laser-based IP65 beam moving head built to deliver impressive aerial looks without compromising on performance. Designed for professional indoor and outdoor productions, Jet Beam120IP
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
February 23, 2026
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
PROLIGHTS is pleased to announce the launch of  EclPar DotFC and EclPar DotVW , two new ultra-compact, fan-free pinspots engineered to bring true brightness and precision control to highlights, accents, and discreet scenic illumination without compromising
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
February 19, 2026
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
Italian singer-songwriter Ultimo has returned to Italy's major stadiums with “ Ultimo Stadi 2025 - La Favola Continua ”, a completely sold-out tour that once again confirms the artist's ability to connect with massive audiences through music and a
The Brightest Modular Blinder for Oasis' Big Return
February 17, 2026
The Brightest Modular Blinder for Oasis' Big Return
Oasis' Live '25 Tour marked one of the most highly anticipated comebacks in music history. Across 41 shows, the band performed a set of iconic hits, taking the tour across 13 countries over five months and bringing their unmistakable Britpop legacy back
Major Lighting Upgrade for St Hilda's Performing Arts Centre in Western Australia
February 11, 2026
Major Lighting Upgrade for St Hilda's Performing Arts Centre in Western Australia
A major lighting upgrade has been completed at the Joy Shepherd Performing Arts Centre , the centrepiece performance space of St Hilda's Anglican School for Girls in Perth , Western Australia. Led by Theatre Manager Noah Gliosca , the project introduces
Music & Lights presenta: LED Display & Lighting Open Day
February 11, 2026
Music & Lights presenta: LED Display & Lighting Open Day
Music & Lights è lieta di presentare l'evento LED Display & Lighting Open Day , due giornate interamente dedicate alle più recenti tecnologie LED display e lighting, rivolte ai professionisti del settore rental, system integrator, service e installatori.
PROLIGHTS is heading to ISE 2026 with the debut of four new products
January 30, 2026
PROLIGHTS is heading to ISE 2026 with the debut of four new products
PROLIGHTS will be at Integrated Systems Europe (ISE) from February 3-6, 2026 at Fira Barcelona for a dynamic showcase of its newest lighting solutions. At Booth 6Q500, visitors can join live demos and get access to exclusive previews, with four brand-new
Subscribe to our Newsletter
Loading...
