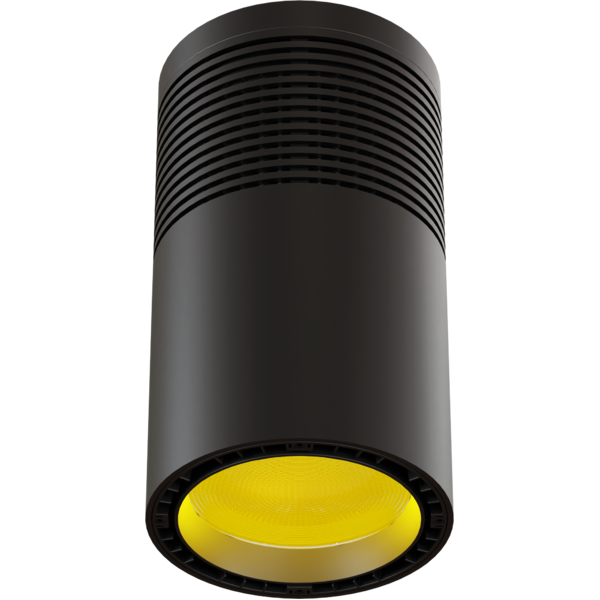

EclPendant JrFC

100W RGB+WarmWhite innovative pendant light

The EclPendant Jr is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.
The EclPendant Jr has a 100-Watt LED source. Its source varies in RGB + Warm White, 3,000K, 4,000K or 5,600K. They all have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).
The EclPendant Jr was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant Jr has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product

SPEKTRA5 YEARS WARRANTY

Main features:

  • 100W LED source power, RGB + Warm White, 3,000K, 4,000K or 5,600K with passive cooling
  • AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
  • Extensive mounting option possibilities, optics and accessories are all easily changeable
See variants

PHOTO GALLERY

EclPendant JrFC
EclPendant JrFC
EclPendant JrFC
EclPendant JrFC

Technical specifications

LIGHT SOURCE
  • Source: 100W RGB + Warm White LEDs
  • Luminous flux: 5'099 @Full
  • Lux: 794lx @5 m full
  • CRI: 94,5 @3200K; 94,8 @5600K
  • R9: 94,9 @3200K; 96,1 @5600K
  • TLCI: 98@3200K;
  • TM30 Rf: 93,6 @3200K; 92,4 @5600K
  • TM30 Rg: 105,2 @3200K; 104 @5600K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 20°
  • Field angle: 40°
  • Lens diameter: 122mm / 4.8''
  • Lens type: fresnel lens
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • Colour wheel: gel filters included
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DALI Type8, DMX512, RDM, CRMX
  • DMX channels: UNO / DUO / Basic / Standard / Extendedch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Selectable PWM: 600 to 40000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: screw terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
  • Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Low Voltage DC connector: DC 48V through screw terminal block
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: DC 48V for emergency light use
  • Max power consumption (230V): 112W
  • Output (at 230V): 24 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • IP rating: IP20
  • Cooling: fan-free with natural convection
  • Housing: Sturdy die-cast aluminium body
  • Finish: black (RAL 9004) or white (RAL 9010)
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 170x321x170mm / 6.69''x12.64''x6.69''
  • Weight: 5kg / 11.02lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLPENDANTJRFCBK
ECLPENDANTJRFCBK
Black
ECLPENDANTJRFCWH
ECLPENDANTJRFCWH
White

Accessories & Related Products

ECLPENDJRCGH
ECLPENDJRCGH
(Optional)
Optional cable glandes holder for ECLPENDANTJR
ECLPENDJRLENS60
ECLPENDJRLENS60
(Optional)
ECLPENDANTJR series 60° lens
ECLPENDJRLENS40
ECLPENDJRLENS40
(Optional)
ECLPENDANTJR series 40° lens
ECLPENDJRLENS20
ECLPENDJRLENS20
(Included)
ECLPENDANTJR series 20° lens
ECLPENDJRHGBRKBK
ECLPENDJRHGBRKBK
(Optional)
Hanging bracket for ECLPENDANTJR series, black
ECLPENDJRHGBRKWH
ECLPENDJRHGBRKWH
(Optional)
Hanging bracket for ECLPENDANTJR series, white
ECLPENDJRRECKITBK
ECLPENDJRRECKITBK
(Optional)
Ceiling recessed kit for ECLPENDANTJR series, black
ECLPENDJRRECKITWH
ECLPENDJRRECKITWH
(Optional)
Ceiling recessed kit for ECLPENDANTJR series, white
ECLPENDJRHSNOOTBK
ECLPENDJRHSNOOTBK
(Optional)
Half snoot for ECLPENDANTJR series, black
ECLPENDJRHSNOOTWH
ECLPENDJRHSNOOTWH
(Optional)
Half snoot for ECLPENDANTJR series, white
ECLPENDJRFSNOOTBK
ECLPENDJRFSNOOTBK
(Optional)
Full snoot for ECLPENDANTJR series, black
ECLPENDJRFSNOOTWH
ECLPENDJRFSNOOTWH
(Optional)
Full snoot for ECLPENDANTJR series, white
ECLPENDJRHLOUVBK
ECLPENDJRHLOUVBK
(Optional)
Honeycomb louvre for ECLPENDANTJR series, black
ECLPENDJRHLOUVWH
ECLPENDJRHLOUVWH
(Optional)
Honeycomb louvre for ECLPENDANTJR series, white
ECLPENDJRCLOUVBK
ECLPENDJRCLOUVBK
(Optional)
Concentric louvre for ECLPENDANTJR series, black
ECLPENDJRCLOUVWH
ECLPENDJRCLOUVWH
(Optional)
Concentric louvre for ECLPENDANTJR series, white
ECLPENDJRBDBK
ECLPENDJRBDBK
(Optional)
Barn door with 8 directional flaps to adjust the light beam, ECLPENDANTJR, black
ECLPENDJRBDWH
ECLPENDJRBDWH
(Optional)
Barn door with 8 directional flaps to adjust the light beam, ECLPENDANTJR, white
ECLPENDWALLBRKBK
ECLPENDWALLBRKBK
(Optional)
Wall mounting bracket for ECLPENDANT series, black
ECLPENDWALLBRKAWH
ECLPENDWALLBRKAWH
(Optional)
Ring adapter for ECLPENDWALLBRK (not included), white
ECLPENDWALLBRKWH
ECLPENDWALLBRKWH
(Optional)
Wall mounting bracket for ECLPENDANT series, white
ECLPENDWALLBRKABK
ECLPENDWALLBRKABK
(Optional)
Ring adapter for ECLPENDWALLBRK (not included), black
ECLPENDJCEILKITBK
ECLPENDJCEILKITBK
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTJR series, black
ECLPENDJCEILKITWH
ECLPENDJCEILKITWH
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTJR series, white
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpendantjrfc_LETTER_DATASHEET_(EN).pdf(25/08/2025)524KB
Letter datasheetEclpendantjrfc_A4_DATASHEET_(ITA).pdf(25/08/2025)522KB
Letter datasheetEclpendantjrfc_A4_DATASHEET_(EN).pdf(25/08/2025)525KB
Tender SpecificationEclpendantjrfc_TENDER_SPECIFICATION.pdf(03/01/2023)4MB

User manual

File name File size Download
User manualEclpendantjrfc_USER_MANUAL_EN.pdf(04/03/2026)7MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

DMX chart & personalities

File name File size Download
DMX chartEclpendantjrfc_DMX_CHARTS.pdf(08/05/2023)111KB

ECLPENDANTJRFC Firmware rev. 1.1.02.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLPENDANTJRFC_3D_SKETCHUP.zip4MB
2DECLPENDANTJRFC_2D.zip21MB
3DECLPENDANTJRFC_3D.zip9MB
2D cad symbolsECLPENDANTJRFC_2DSYMBOLS.zip222KB
Technical drawingECLPENDANTJRFC_TECHNICAL DRAWINGS.zip3MB
VectorWorksECLPENDANTJRFC_SYMBOLS.zip918KB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.02.0 STABLE 01/08/2025 Improvement DALI protocol:
  • Now you can set CCT and RGBW colors:
    • DALI-Cockpit software can be used to work with both CCT and RGBW colours.
    • Using Master Configurator software, it is only possible to work in CCT.
Note: In addition to the .prl file, a guide for using CCT/Colors via DALI with DALI-Cockpit software is attached.		 Rev. 1.0
Rev. 2.0

Info Request

News

Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
March 24, 2026
Under The Bridge Festival Illuminated from Stage to Stage with PROLIGHTS
Under The Bridge Festival is a one-day open-air music event held beneath the Spijkenisserbrug, the iconic bridge that gives the festival its name and its unmistakable industrial backdrop. With five stages and six zones spanning EDM, house, techno and
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
March 19, 2026
Skolnity's Observation Tower in Wisła Lights Up at Night with PROLIGHTS
The observation tower at Skolnity Ski & Bike Park in Wisła , Poland, part of the Wieża Widokowa network managed by Grupa Pingwina, has been equipped with a permanent architectural lighting installation featuring PROLIGHTS fixtures, supplied by Show
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
March 17, 2026
A New Dimension in Stage Lighting at Teatro Scala in Quito with PROLIGHTS
Teatro Scala in Quito , one of Ecuador's foremost venues for high-level artistic productions, has equipped its stage with a comprehensive PROLIGHTS lighting system, implemented by Sonotec , the official PROLIGHTS distributor in Ecuador.  The installation
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
March 12, 2026
Walnut Street Theatre Upgrades Its Lighting System with PROLIGHTS
Philadelphia's Walnut Street Theatre is one of the most historic venues in American theatre. Founded in 1808, it is the longest continually operating theatre in the English-speaking world and hosts a diverse program of productions each season, welcoming
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
March 10, 2026
PROLIGHTS HaluPix Duo Lights Up Guus Meeuwis' 30th Anniversary Show
Thirty years after the release of Het is een Nacht , Dutch singer-songwriter Guus Meeuwis headlined the AFAS DOME in Antwerp , one of Belgium's leading indoor arenas, for the first time with a major solo show. Across two memorable nights, his greatest
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
February 26, 2026
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
PROLIGHTS introduces Jet Beam120IP , a budget-friendly, high-power, laser-based IP65 beam moving head built to deliver impressive aerial looks without compromising on performance. Designed for professional indoor and outdoor productions, Jet Beam120IP
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
February 23, 2026
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
PROLIGHTS is pleased to announce the launch of  EclPar DotFC and EclPar DotVW , two new ultra-compact, fan-free pinspots engineered to bring true brightness and precision control to highlights, accents, and discreet scenic illumination without compromising
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
February 19, 2026
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
Italian singer-songwriter Ultimo has returned to Italy's major stadiums with “ Ultimo Stadi 2025 - La Favola Continua ”, a completely sold-out tour that once again confirms the artist's ability to connect with massive audiences through music and a
The Brightest Modular Blinder for Oasis' Big Return
February 17, 2026
The Brightest Modular Blinder for Oasis' Big Return
Oasis' Live '25 Tour marked one of the most highly anticipated comebacks in music history. Across 41 shows, the band performed a set of iconic hits, taking the tour across 13 countries over five months and bringing their unmistakable Britpop legacy back
Major Lighting Upgrade for St Hilda's Performing Arts Centre in Western Australia
February 11, 2026
Major Lighting Upgrade for St Hilda's Performing Arts Centre in Western Australia
A major lighting upgrade has been completed at the Joy Shepherd Performing Arts Centre , the centrepiece performance space of St Hilda's Anglican School for Girls in Perth , Western Australia. Led by Theatre Manager Noah Gliosca , the project introduces
Music & Lights presenta: LED Display & Lighting Open Day
February 11, 2026
Music & Lights presenta: LED Display & Lighting Open Day
Music & Lights è lieta di presentare l'evento LED Display & Lighting Open Day , due giornate interamente dedicate alle più recenti tecnologie LED display e lighting, rivolte ai professionisti del settore rental, system integrator, service e installatori.
PROLIGHTS is heading to ISE 2026 with the debut of four new products
January 30, 2026
PROLIGHTS is heading to ISE 2026 with the debut of four new products
PROLIGHTS will be at Integrated Systems Europe (ISE) from February 3-6, 2026 at Fira Barcelona for a dynamic showcase of its newest lighting solutions. At Booth 6Q500, visitors can join live demos and get access to exclusive previews, with four brand-new
Subscribe to our Newsletter
Loading...
