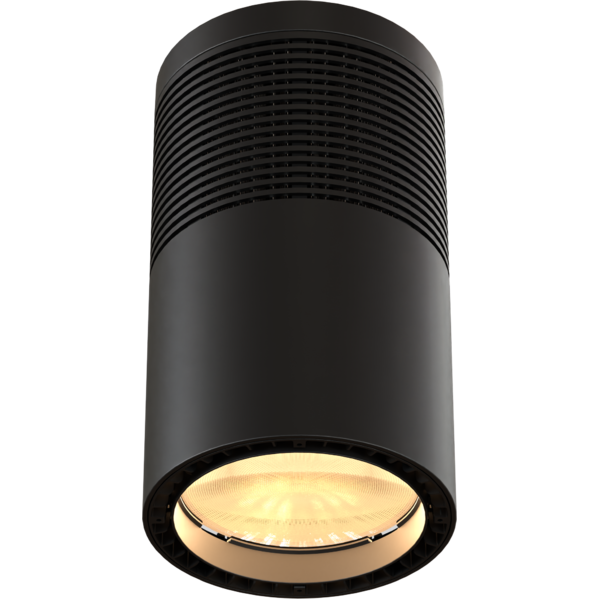

EclPendant JrVW

100W Variable White innovative pendant light

The EclPendant JrVW is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a full range of optics, accessories, mounting options and control.
The EclPendant JrVW has a 100-Watt LED source Variable White that have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).
The EclPendant JrVW was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant JrVW series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant JrVW has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product


5 YEARS WARRANTY

Main features:

  • 100W LED source power, Variable White with passive cooling
  • AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
  • Extensive mounting option possibilities, optics and accessories are all easily changeable
See variants

PHOTO GALLERY

EclPendant JrVW
EclPendant JrVW
EclPendant JrVW
EclPendant JrVW

Technical specifications

LIGHT SOURCE
  • Source: 100W Variable White LED
  • CCT: 2'700K - 6'500K
  • Luminous flux: (2'700K) 6'092 lm; (6'500K) 8'287 lm; (FULL) 7'819
  • Lux: (2'700K) 1'104 lx; (6'500K) 1'468 lx; (FULL) 1'388lx @5 m
  • CRI: 96,5 @2'700K; 95,4 @6'500K; 96,2 @ full
  • R9: 93,9 @2'700K; 86,5 @6'500K; 92,3 @ full
  • TLCI: 96 @2'700K; 96 @6'500K; 97 @ full
  • TM30 Rf: 95,3 @2'700K; 90,5 @6'500K; 92,9 @ full
  • TM30 Rg: 103,3 @2'700K; 100,5 @6'500K; 103,6 @ full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 24°
  • Field angle: 44°
  • Lens diameter: 122mm / 4.8''
  • Lens type: fresnel lens
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: linear CCT control
  • Colour wheel: built-in white presets
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004 or RAL 9010
CONTROL
  • Protocols: DALI Type8, DMX512, RDM, CRMX
  • DMX channels: 1 / 2 / 5 / 9 / 13channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: DC 48V for emergency light use
  • Max power consumption: 121W
  • Output (at 230V): 24 units on a single power line
  • Power factor: > 0,92
PHYSICAL
  • IP rating: IP20
  • Cooling: Heatsink with heat pipes, natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)
  • Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
  • Power connection: screw terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: DC 48V through screw terminal block
  • Dimensions (WxHxD): 170x321x170mm / 6.69''x12.64''x6.69''
  • Weight: 5kg / 11.02lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, cTUVus
BOX CONTENT

Versions

Code
Finishing
ECLPENDANTJRVWBK
ECLPENDANTJRVWBK
Black
ECLPENDANTJRVWWH
ECLPENDANTJRVWWH
White

Accessories & Related Products

ECLPENDJRCGH
ECLPENDJRCGH
(Optional)
Optional cable glandes holder for ECLPENDANTJR
ECLPENDJRLENS20
ECLPENDJRLENS20
(Included)
ECLPENDANTJR series 20° lens
ECLPENDJRLENS40
ECLPENDJRLENS40
(Optional)
ECLPENDANTJR series 40° lens
ECLPENDJRLENS60
ECLPENDJRLENS60
(Optional)
ECLPENDANTJR series 60° lens
ECLPENDJRHGBRKBK
ECLPENDJRHGBRKBK
(Optional)
Hanging bracket for ECLPENDANTJR series, black
ECLPENDJRHGBRKWH
ECLPENDJRHGBRKWH
(Optional)
Hanging bracket for ECLPENDANTJR series, white
ECLPENDJRRECKITBK
ECLPENDJRRECKITBK
(Optional)
Ceiling recessed kit for ECLPENDANTJR series, black
ECLPENDJRRECKITWH
ECLPENDJRRECKITWH
(Optional)
Ceiling recessed kit for ECLPENDANTJR series, white
ECLPENDJRHSNOOTBK
ECLPENDJRHSNOOTBK
(Optional)
Half snoot for ECLPENDANTJR series, black
ECLPENDJRHSNOOTWH
ECLPENDJRHSNOOTWH
(Optional)
Half snoot for ECLPENDANTJR series, white
ECLPENDJRFSNOOTBK
ECLPENDJRFSNOOTBK
(Optional)
Full snoot for ECLPENDANTJR series, black
ECLPENDJRFSNOOTWH
ECLPENDJRFSNOOTWH
(Optional)
Full snoot for ECLPENDANTJR series, white
ECLPENDJRHLOUVBK
ECLPENDJRHLOUVBK
(Optional)
Honeycomb louvre for ECLPENDANTJR series, black
ECLPENDJRHLOUVWH
ECLPENDJRHLOUVWH
(Optional)
Honeycomb louvre for ECLPENDANTJR series, white
ECLPENDJRCLOUVBK
ECLPENDJRCLOUVBK
(Optional)
Concentric louvre for ECLPENDANTJR series, black
ECLPENDJRCLOUVWH
ECLPENDJRCLOUVWH
(Optional)
Concentric louvre for ECLPENDANTJR series, white
ECLPENDWALLBRKBK
ECLPENDWALLBRKBK
(Optional)
Wall mounting bracket for ECLPENDANT series, black
ECLPENDWALLBRKWH
ECLPENDWALLBRKWH
(Optional)
Wall mounting bracket for ECLPENDANT series, white
ECLPENDJCEILKITBK
ECLPENDJCEILKITBK
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTJR series, black
ECLPENDJCEILKITWH
ECLPENDJCEILKITWH
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTJR series, white
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpendantjrvw_LETTER_DATASHEET_(EN).pdf(25/08/2025)441KB
Letter datasheetEclpendantjrvw_A4_DATASHEET_(ITA).pdf(25/08/2025)442KB
Letter datasheetEclpendantjrvw_A4_DATASHEET_(EN).pdf(25/08/2025)442KB
Tender SpecificationEclpendantjrvw_TENDER_SPECIFICATION.pdf(19/02/2024)269KB

User manual

File name File size Download
User manualEclpendantjrvw_USER_MANUAL_EN.pdf(27/02/2024)7MB
User manualEclpendantjrvw_General_Safety_Information.pdf(12/01/2024)3MB

DMX chart & personalities

File name File size Download
DMX chartEclpendantjrvw_DMX_CHARTS.pdf(09/01/2024)117KB

ECLPENDANTJRVW Firmware rev. 1.1.00.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLPENDANTJRVW_3D_SKETCHUP.zip4MB
3DECLPENDANTJRVW_3D.zip9MB
2DECLPENDANTJRVW_2D.zip21MB
2D cad symbolsECLPENDANTJRVW_2DSYMBOLS.zip81KB
Technical drawingECLPENDANTJRVW_TECHNICAL DRAWINGS.zip3MB
VectorWorksECLPENDANTJRVW_SYMBOLS.zip1MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download
Noise ReportEclpendantjrvw_NOISE_REPORT.pdf(18/01/2024)579KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 19/04/2024 Improvements:
  • Improved RDM protocol compliance.
  • Improved Dimmer behavior.
  • Improved Dali protocol behavior.
Fixed Bugs:
  • Incorrect default values in RDM.
  • It's not possible to performe the factory reload via RDM more than once, but it's necessary to reboot the device.
  • In Standard and Basic Mode, switching the CCT channel from 0% to 100%, transition occurs in fade.
 Rev. 1.0
Rev. 2.0

Info Request

News

PROLIGHTS lights Ocean Court at the National Maritime Museum in London
December 02, 2025
PROLIGHTS lights Ocean Court at the National Maritime Museum in London
Ocean Court , the glass-roofed atrium at the heart of the National Maritime Museum in Greenwich, London, has been equipped with a new event lighting system featuring PROLIGHTS fixtures. The installation, delivered by A.C. Special Projects (ACSP ) in partnership
Music & Lights announces the exclusive distribution of Unilumin Rental in Italy
December 01, 2025
Music & Lights announces the exclusive distribution of Unilumin Rental in Italy
Music & Lights is pleased to announce the signing of an exclusive distribution agreement for the Italian market for the Rental solutions of Unilumin , a global leader in professional LED display technology. Effective immediately, Music & Lights will
PROLIGHTS launches Astra Profile1200IP: high-output IP65 LED moving profile with 54,000 lm and full framing
November 26, 2025
PROLIGHTS launches Astra Profile1200IP: high-output IP65 LED moving profile with 54,000 lm and full framing
  PROLIGHTS launches the Astra Profile1200IP , a large-format IP65 LED moving profile engineered to deliver high brightness and robust performance for large outdoor stages and arenas. At its core is a 1,400 W white LED engine driven at 1,200 W (7,000
HaluPix Duo Delivers Stunning Visual Energy at When We Were Young Festival
November 24, 2025
HaluPix Duo Delivers Stunning Visual Energy at When We Were Young Festival
The When We Were Young festival took place in Las Vegas , bringing some of the most iconic names in alternative and pop-punk music back to the stage. Among this year's highlights on the 7-Eleven Stage was the performance by Panic! At The Disco , whose
RTP upgrades its news studios in Lisbon and Porto with PROLIGHTS
November 13, 2025
RTP upgrades its news studios in Lisbon and Porto with PROLIGHTS
The new RTP news studios in Lisbon (Marechal Gomes da Costa) and Porto (Centro de Produção do Norte) have been equipped with an advanced PROLIGHTS LED lighting system, supplied and installed by SLS - Sound and Light Systems , in collaboration with Pantalha
PROLIGHTS illuminates Acea's space at the Rome Film Fest
November 04, 2025
PROLIGHTS illuminates Acea's space at the Rome Film Fest
The 19th edition of the Rome Film Fest  has once again illuminated the Eternal City, and PROLIGHTS played a key role in shaping the luminous identity of Acea 's presence as Main Partner of the event. At the Auditorium Parco della Musica, ARETI provided
A Spooky-Yet-Bright Halloween at Carved with PROLIGHTS
October 28, 2025
A Spooky-Yet-Bright Halloween at Carved with PROLIGHTS
At the enchanting Descanso Gardens in Los Angeles , California, a family-friendly, Halloween-themed immersive experience called Carved was brought to life. The event was developed using the existing infrastructure of Enchanted Forest of Light, the gardens'
PROLIGHTS introduces EclExpo FloodIP series: IP-rated floodlight family available in multiple formats
October 20, 2025
PROLIGHTS introduces EclExpo FloodIP series: IP-rated floodlight family available in multiple formats
PROLIGHTS brings its celebrated EclExpo Flood platform outdoors with two sealed IP65 base models: EclExpo Flood150IP and EclExpo Flood300IP, each available in Full Color and Variable White variants. Designed to replace classic CDM/HMI floods for trade
A gothic glow with PROLIGHTS for Netflix's Wednesday Season two premiere
October 14, 2025
A gothic glow with PROLIGHTS for Netflix's Wednesday Season two premiere
Cockatoo Island in Sydney was transformed by renowned global experience agency Rizer into a gothic playground for the Season Two launch of Netflix's Wednesday , where eerie installations and atmospheric lighting brought the show's world to life against
PROLIGHTS Introduces ArcPod 300FCLT: long-throw LED wash
October 08, 2025
PROLIGHTS Introduces ArcPod 300FCLT: long-throw LED wash
PROLIGHTS unveils ArcPod 300FCLT , a high-performance, long-throw LED wash built for large-scale architectural lighting on skyscrapers, stadiums, city towers and bridges. With native 2.5° ultra-narrow optics, the 260 W fan-free fixture delivers up to
Lumina Electronic Festival powered by PROLIGHTS
October 03, 2025
Lumina Electronic Festival powered by PROLIGHTS
The historic Albanian city of Korçë , known for its vibrant cultural scene, recently hosted the Lumina Electronic Festival , where music and technology fused into an immersive environment powered by PROLIGHTS . Lighting design by Florind Tenolli , operated
Košice State Philharmonic Upgrades to PROLIGHTS
September 26, 2025
Košice State Philharmonic Upgrades to PROLIGHTS
Set within one of Slovakia's leading cultural institutions, the Košice State Philharmonic has completed a major upgrade of its concert hall lighting, replacing legacy halogen fixtures with an all-LED system to enhance visual quality, efficiency, and
Subscribe to our Newsletter
Loading...
