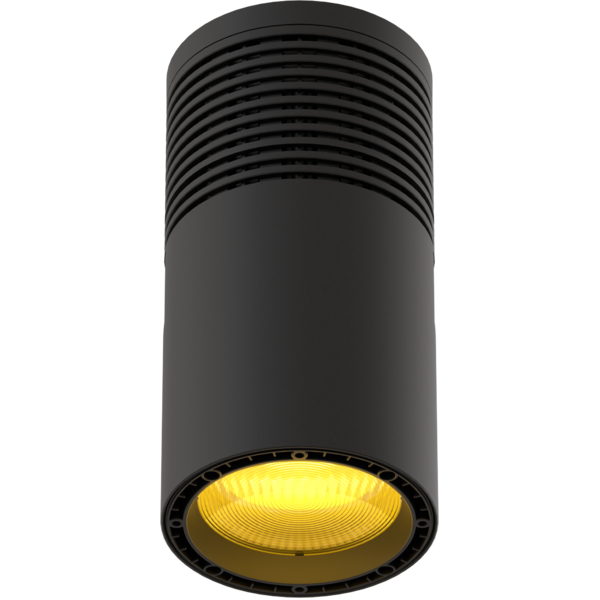

EclPendant SFC

50W RGB+WarmWhite House light with passive cooling

The EclPendant S merges elegant design with cutting-edge, eco-friendly technology, ensuring optimal illumination for any venue. This series of pendant lights offers a diverse range of LED sources, including options in RGB + Warm White, Variable White and single color (3000K, 4000K and 5600K), each featuring a 50 Watt LED that provides high-quality light output, uniform color, and remarkable durability.

Completed by a wide range of optics, accessories, and versatile mounting solutions, the EclPendant S adapts to various installation needs. Mounting alternatives include pendant, surface, stem, wall, adjustable bracket, and recessed options. It can be directly wired to mains power (100-240 VAC or 48 VDC) and integrates seamlessly with control protocols like DMX + RDM and DALI, thanks to its accessible terminal blocks.

User-friendly settings are manageable via the unit's onboard GUI, enhancing its functionality. The fixture's wide array of optics and accessories is designed for utmost flexibility and precision, allowing easy on-site changes without complications.

Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan.



* Please note: The hanging bracket is not included with the product.

SPEKTRA5 YEARS WARRANTY

Main features:

  • House light with 50W RGB + Warm White LED source with passive cooling
  • 100-240 VAC or 48 VDC power input. Control via DALI, DMX, RDM
  • Extensive mounting option, optics and accessories available
See variants

PHOTO GALLERY

EclPendant SFC
EclPendant SFC
EclPendant SFC
EclPendant SFC

Technical specifications

LIGHT SOURCE
  • Source: 50W RGBwW LEDs
  • Source CCT: 2'800K - 10'000K; WW LED: 3.200KK
  • Luminous flux: 2'637 @Full
  • Lux: 513lx @5 m full
  • CRI: 92,3 @Full; 93,2 @3200K; 92,8 @5600K
  • R9: 97,1 @Full; 96,2 @3200K; 92,5 @5600K
  • TLCI: 91 @Full; 80 @3200K; 89 @5600K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 20°
  • Field angle: 40°
  • Lens diameter: 100mm / 3.94''
  • Lens type: fresnel lens
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • Colour wheel: gel filters included
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DALI Type8, DMX512, RDM, CRMX (optional)
  • DMX channels: UNO / DUO / Basic / Standard / Extendedch
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX) (Order code SP018409)
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Other: 16bit control of dimmer and colour
BODY
  • Housing: Sturdy die-cast aluminium body
  • Finish: black (RAL 9004) or white (RAL 9010)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 to 40000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: DC 48V for emergency light use
  • Max power consumption: 60W
  • Output (at 230V): 24 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • IP rating: IP20
  • Cooling: fan-free with natural convection
  • Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)
  • Signal connection: Screw terminal block
  • Power connection: Screw terminal block
  • Dimensions (WxHxD): 135x300x135mm / 5.31''x11.81''x5.31''
  • Weight: 3,1kg / 6.83lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
ECLPENDANTSFCBK
ECLPENDANTSFCBK
Black
ECLPENDANTSFCWH
ECLPENDANTSFCWH
White

Accessories & Related Products

PLCPW7500D65W
PLCPW7500D65W
(Optional)
Power PVC cable H05VV-F 3G0,75, 1 meter lenght, white
PLCPW7500D65B
PLCPW7500D65B
(Optional)
Power PVC cable H05VV-F 3G0,75, 1 meter lenght, black
ECLPENDSLENS20
ECLPENDSLENS20
(Included)
ECLPENDANTS series 20° lens
ECLPENDSLENS40
ECLPENDSLENS40
(Optional)
ECLPENDANTS series 40° lens
ECLPENDSLENS60
ECLPENDSLENS60
(Optional)
ECLPENDANTS series 60° lens
ECLPENDSHGBRKBK
ECLPENDSHGBRKBK
(Optional)
Hanging bracket for ECLPENDANTS series, black
ECLPENDSHGBRKWH
ECLPENDSHGBRKWH
(Optional)
Hanging bracket for ECLPENDANTS series, white
ECLPENDSRECSKITBK
ECLPENDSRECSKITBK
(Optional)
Ceiling recessed kit for ECLPENDANTS series, black
ECLPENDSRECSKITWH
ECLPENDSRECSKITWH
(Optional)
Ceiling recessed kit for ECLPENDANTS series, white
ECLPENDSHSNOOTBK
ECLPENDSHSNOOTBK
(Optional)
Half snoot for ECLPENDANTS series, black
ECLPENDSHSNOOTWH
ECLPENDSHSNOOTWH
(Optional)
Half snoot for ECLPENDANTS series, white
ECLPENDSFSNOOTBK
ECLPENDSFSNOOTBK
(Optional)
Full snoot for ECLPENDANTS series, black
ECLPENDSFSNOOTWH
ECLPENDSFSNOOTWH
(Optional)
Full snoot for ECLPENDANTS series, white
ECLPENDSHLOUVREBK
ECLPENDSHLOUVREBK
(Optional)
Honeycomb louvre for ECLPENDANTS series, black
ECLPENDSHLOUVREWH
ECLPENDSHLOUVREWH
(Optional)
Honeycomb louvre for ECLPENDANTS series, white
ECLPENDSCLOUVREBK
ECLPENDSCLOUVREBK
(Optional)
Concentric louvre for ECLPENDANTS series, black
ECLPENDSCLOUVREWH
ECLPENDSCLOUVREWH
(Optional)
Concentric louvre for ECLPENDANTS series, white
ECLPENDSBDBK
ECLPENDSBDBK
(Optional)
Barndoor with 4 directional flaps to adjust the light beam for ECLPENDANTS,black
ECLPENDSBDWH
ECLPENDSBDWH
(Optional)
Barndoor with 4 directional flaps to adjust the light beam for ECLPENDANTS,white
ECLPENDSCEILKITBK
ECLPENDSCEILKITBK
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTS series, black
ECLPENDSCEILKITWH
ECLPENDSCEILKITWH
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANTS series, white
ECLPENDWALLBRKBK
ECLPENDWALLBRKBK
(Optional)
Wall mounting bracket for ECLPENDANT series, black
ECLPENDWALLBRKABK
ECLPENDWALLBRKABK
(Optional)
Ring adapter for ECLPENDWALLBRK (not included), black
ECLPENDWALLBRKWH
ECLPENDWALLBRKWH
(Optional)
Wall mounting bracket for ECLPENDANT series, white
ECLPENDWALLBRKAWH
ECLPENDWALLBRKAWH
(Optional)
Ring adapter for ECLPENDWALLBRK (not included), white
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
PLCDX53D5
PLCDX53D5
(Optional)
120 Ohm DMX cable, 2 twisted poles, external sheath with reduced diameter, 1 m
PLCPD7501P14D
PLCPD7501P14D
(Optional)
Power & DMX 120 Ohm, 1 meter length, not suitable for track adapter connection
PLCPD7501P68D
PLCPD7501P68D
(Optional)
Power & DMX 120 Ohm
PLCYA7501P14D
PLCYA7501P14D
(Optional)
YY splitter cable Power 3x0.75 mm2 + 5p IN/OUT DMX 120 Ohm, bare end, 1 meter
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpendantsfc_A4_DATASHEET_(EN).pdf(17/06/2024)396KB
Tender SpecificationEclpendantsfc_TENDER_SPECIFICATION.pdf(19/02/2024)221KB

User manual

File name File size Download
User manualEclpendantsfc_USER_MANUAL_EN.pdf(25/09/2024)6MB
User manualEclpendantsfc_General_Safety_Information.pdf(30/08/2024)2MB

DMX chart & personalities

File name File size Download
DMX chartEclpendantsfc_DMX_CHARTS.pdf(27/02/2024)311KB

ECLPENDANTSFC Firmware rev. 1.1.01.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclpendantsfc_3D.skp(29/12/2023)608KB
2DECLPENDANTSFC_2D.zip9MB
3DEclpendantsfc_CAD_3D.dwg(29/12/2023)99KB
2D cad symbolsECLPENDANTSFC_2DSYMBOLS.zip89KB
Technical drawingECLPENDANTSFC_TECHNICAL DRAWINGS.zip2MB
VectorWorksECLPENDANTSFC_SYMBOLS.zip2MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB

Tech docs

File name File size Download
Noise ReportEclpendantsfc_NOISE_REPORT.pdf(20/05/2024)558KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 27/06/2024 Fixed Bug:
  • Device freezes every time you enter the Information/Wireless Quality menu. A reboot is required.
 Rev. 1.0

Info Request

News

PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
February 26, 2026
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
PROLIGHTS introduces Jet Beam120IP , a budget-friendly, high-power, laser-based IP65 beam moving head built to deliver impressive aerial looks without compromising on performance. Designed for professional indoor and outdoor productions, Jet Beam120IP
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
February 23, 2026
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
PROLIGHTS is pleased to announce the launch of  EclPar DotFC and EclPar DotVW , two new ultra-compact, fan-free pinspots engineered to bring true brightness and precision control to highlights, accents, and discreet scenic illumination without compromising
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
February 19, 2026
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
Italian singer-songwriter Ultimo has returned to Italy's major stadiums with “ Ultimo Stadi 2025 - La Favola Continua ”, a completely sold-out tour that once again confirms the artist's ability to connect with massive audiences through music and a
The Brightest Modular Blinder for Oasis' Big Return
February 17, 2026
The Brightest Modular Blinder for Oasis' Big Return
Oasis' Live '25 Tour marked one of the most highly anticipated comebacks in music history. Across 41 shows, the band performed a set of iconic hits, taking the tour across 13 countries over five months and bringing their unmistakable Britpop legacy back
Music & Lights presenta: LED Display & Lighting Open Day
February 11, 2026
Music & Lights presenta: LED Display & Lighting Open Day
Music & Lights è lieta di presentare l'evento LED Display & Lighting Open Day , due giornate interamente dedicate alle più recenti tecnologie LED display e lighting, rivolte ai professionisti del settore rental, system integrator, service e installatori.
PROLIGHTS is heading to ISE 2026 with the debut of four new products
January 30, 2026
PROLIGHTS is heading to ISE 2026 with the debut of four new products
PROLIGHTS will be at Integrated Systems Europe (ISE) from February 3-6, 2026 at Fira Barcelona for a dynamic showcase of its newest lighting solutions. At Booth 6Q500, visitors can join live demos and get access to exclusive previews, with four brand-new
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
January 30, 2026
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
PROLIGHTS unveils Muse Profile70CT+ , a moving LED profile designed to deliver uncompromised light quality for theatres, broadcast studios, and film sets. Equipped with a powerful 1000W 6-colour LED source with additive colour mixing, Muse Profile70CT+
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
January 26, 2026
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
PROLIGHTS introduces Astra Profile300LTIP and Astra Profile500LTIP , two new IP65-rated long-throw moving profiles designed to deliver powerful output, flexible optics, and reliable performance from small rigs to large arena productions indoor or out.
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
January 19, 2026
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
PROLIGHTS expands its modular blinder range with SunRise 4FLX , a new four-cell model that transforms the classic 4-lite blinder into a high-performance solution for indoor and outdoor stages. Making its debut at ISE 2026 , SunRise  4FLX is available
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
January 15, 2026
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
After more than two years of design, research, planning, and construction, Our Wondrous Planet , the most expansive science and biodiversity gallery in Museums Victoria's history, has opened at Melbourne Museum , offering visitors a breathtaking multisensory
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
January 07, 2026
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
The Grand Egyptian Museum (GEM) , officially inaugurated on 1 November 2025 on the Giza plateau, is the world's largest museum dedicated to a single civilisation. It houses a collection of over 100,000 artefacts, with nearly 50,000 on display, just a
PROLIGHTS Illuminates the Grand Egyptian Museum
January 02, 2026
PROLIGHTS Illuminates the Grand Egyptian Museum
Near one of the Great Pyramid of Khufu at Giza has officially opened a new cultural landmark of the modern era: the Grand Egyptian Museum (GEM) . Described as the world's largest archaeological museum, the GEM houses around 100,000 artefacts spanning
Subscribe to our Newsletter
Loading...
