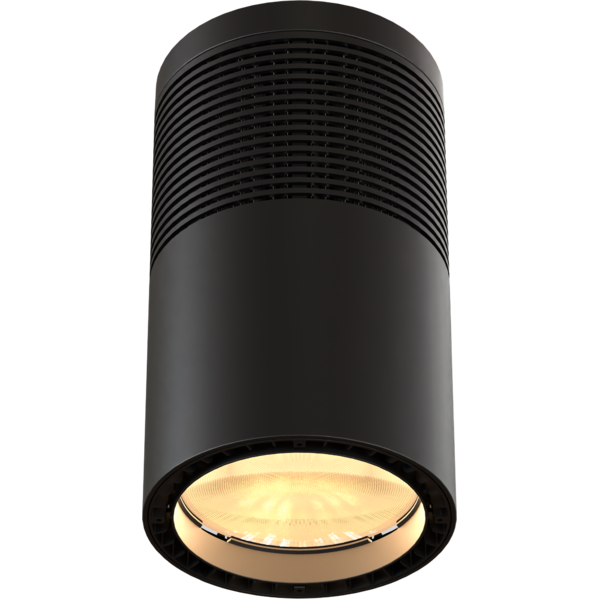

EclPendant VW

200W Variable White innovative pendant light

The EclPendant VW is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a full range of optics, accessories, mounting options and control.
The EclPendant VW has a 200-Watt LED source Variable White that have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).
The EclPendant VW was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant VW series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant VW has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product


5 YEARS WARRANTY

Main features:

  • 200W LED source power, Variable White with passive cooling
  • AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
  • Extensive mounting option possibilities, optics and accessories are all easily changeable
See variants

PHOTO GALLERY

EclPendant VW
EclPendant VW
EclPendant VW
EclPendant VW

Technical specifications

LIGHT SOURCE
  • Source: 200W Variable White LED
  • Source CCT: 2'700K - 6'500KK
  • Luminous flux: (2'700K) 9'919 lm; (6'500K) 12'487 lm; (FULL) 14'571
  • Lux: (2'700K) 1'956 lx; (6'500K) 2'529 lx; (FULL) 2'933lx @5 m
  • CRI: 95,9 @2'700K; 96,3 @6'500K; 95,1 @ full
  • R9: 95 @2'700K; 95 @6'500K; 79,9 @ full
  • TLCI: 97 @2'700K; 96 @6'500K; 97 @ full
  • TM30 Rf: 95,2 @2'700K; 90,8 @6'500K; 92,6 @ full
  • TM30 Rg: 104,2 @2'700K; 100,4 @6'500K; 104 @ full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 20°
  • Field angle: 40°
  • Lens diameter: 157mm / 6.18''
  • Lens type: fresnel lens
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: linear CCT control
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DALI Type8, DMX512, RDM, CRMX
  • DMX channels: 1 / 2 / 5 / 9 / 13ch
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Other: 16bit control of dimmer and colour
BODY
  • Housing: Sturdy die-cast aluminium body
  • Finish: black (RAL 9004) or white (RAL 9010)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 to 40000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: DC 48V for emergency light use
  • Max power consumption: 225W
  • Standby power: 34,2 W
  • Output (at 230V): 10 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: IP20
  • Cooling: fan-free with natural convection
  • Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)
  • Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
  • Power connection: screw terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: DC 48V through screw terminal block
  • Dimensions (WxHxD): 202x392x202mm / 7.95''x15.43''x7.95''
  • Weight: 7,3kg / 16.09lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, cTUVus
BOX CONTENT

Versions

Code
Finishing
ECLPENDANTVWBK
ECLPENDANTVWBK
Black
ECLPENDANTVWWH
ECLPENDANTVWWH
White

Accessories & Related Products

ECLPENDLENS20
ECLPENDLENS20
(Included)
ECLPENDANT series 20° lens
ECLPENDLENS60
ECLPENDLENS60
(Optional)
ECLPENDANT series 60° lens
ECLPENDLENS40
ECLPENDLENS40
(Optional)
ECLPENDANT series 40° lens
ECLPENDHGBRKBK
ECLPENDHGBRKBK
(Optional)
Hanging bracket for ECLPENDANT series, black
ECLPENDHGBRKWH
ECLPENDHGBRKWH
(Optional)
Hanging bracket for ECLPENDANT series, white
ECLPENDRECSKITBK
ECLPENDRECSKITBK
(Optional)
Ceiling recessed kit for ECLPENDANT series, black
ECLPENDRECSKITWH
ECLPENDRECSKITWH
(Optional)
Ceiling recessed kit for ECLPENDANT series, white
ECLPENDHSNOOTBK
ECLPENDHSNOOTBK
(Optional)
Half snoot for ECLPENDANT series, black
ECLPENDHSNOOTWH
ECLPENDHSNOOTWH
(Optional)
Half snoot for ECLPENDANT series, white
ECLPENDFSNOOTBK
ECLPENDFSNOOTBK
(Optional)
Full snoot for ECLPENDANT series, black
ECLPENDFSNOOTWH
ECLPENDFSNOOTWH
(Optional)
Full snoot for ECLPENDANT series, white
ECLPENDHLOUVREBK
ECLPENDHLOUVREBK
(Optional)
Honeycomb louvre for ECLPENDANT series, black
ECLPENDHLOUVREWH
ECLPENDHLOUVREWH
(Optional)
Honeycomb louvre for ECLPENDANT series, white
ECLPENDCLOUVREBK
ECLPENDCLOUVREBK
(Optional)
Concentric louvre for ECLPENDANT series, black
ECLPENDCLOUVREWH
ECLPENDCLOUVREWH
(Optional)
Concentric louvre for ECLPENDANT series, white
ECLPENDCEILKITBK
ECLPENDCEILKITBK
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANT series, black
ECLPENDCEILKITWH
ECLPENDCEILKITWH
(Optional)
Ceiling-mounted kit (surface) for ECLPENDANT series, white
ECLPENDWALLBRKBK
ECLPENDWALLBRKBK
(Optional)
Wall mounting bracket for ECLPENDANT series, black
ECLPENDWALLBRKWH
ECLPENDWALLBRKWH
(Optional)
Wall mounting bracket for ECLPENDANT series, white
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclpendantvw_LETTER_DATASHEET_(EN).pdf(25/08/2025)492KB
Letter datasheetEclpendantvw_A4_DATASHEET_(ITA).pdf(25/08/2025)494KB
Letter datasheetEclpendantvw_A4_DATASHEET_(EN).pdf(25/08/2025)493KB
Tender SpecificationEclpendantvw_TENDER_SPECIFICATION.pdf(19/02/2024)214KB

User manual

File name File size Download
User manualEclpendantvw_USER_MANUAL_EN.pdf(04/03/2026)7MB
User manualEclpendantvw_General_Safety_Information_EN.pdf(12/01/2024)3MB

DMX chart & personalities

File name File size Download
DMX chartEclpendantvw_DMX_CHARTS.pdf(18/01/2024)122KB

ECLPENDANTVW Firmware rev. 1.1.00.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLPENDANTVW_3D_SKETCHUP.zip3MB
3DECLPENDANTVW_3D.zip10MB
2D cad symbolsECLPENDANTVW_2DSYMBOLS.zip221KB
2DECLPENDANTVW_2D.zip18MB
Technical drawingECLPENDANTVW_TECHNICAL DRAWINGS.zip4MB
VectorWorksECLPENDANTVW_SYMBOLS.zip1MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Tech docs

File name File size Download
Noise ReportEclpendantvw_NOISE_REPORT.pdf(18/01/2024)578KB

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 19/04/2024 Improvements:
  • Improved RDM protocol compliance.
  • Improved Dimmer behavior.
  • Improved Dali protocol behavior.
Fixed Bugs:
  • Incorrect default values in RDM.
  • It's not possible to performe the factory reload via RDM more than once, but it's necessary to reboot the device.
  • In Standard and Basic Mode, switching the CCT channel from 0% to 100%, transition occurs in fade.
 Rev. 1.0
Rev. 2.0

Info Request

News

PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
February 26, 2026
PROLIGHTS introduces Jet Beam120IP: a budget-friendly IP65 phosphor-laser beam moving head for long-throw aerial effects
PROLIGHTS introduces Jet Beam120IP , a budget-friendly, high-power, laser-based IP65 beam moving head built to deliver impressive aerial looks without compromising on performance. Designed for professional indoor and outdoor productions, Jet Beam120IP
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
February 23, 2026
PROLIGHTS Launches EclPar DotFC & EclPar DotVW: Ultra-Compact, Fan-Free Pinspots with bright perfomance.
PROLIGHTS is pleased to announce the launch of  EclPar DotFC and EclPar DotVW , two new ultra-compact, fan-free pinspots engineered to bring true brightness and precision control to highlights, accents, and discreet scenic illumination without compromising
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
February 19, 2026
The Blinding Light of PROLIGHTS on Ultimo's Stadium Tour
Italian singer-songwriter Ultimo has returned to Italy's major stadiums with “ Ultimo Stadi 2025 - La Favola Continua ”, a completely sold-out tour that once again confirms the artist's ability to connect with massive audiences through music and a
The Brightest Modular Blinder for Oasis' Big Return
February 17, 2026
The Brightest Modular Blinder for Oasis' Big Return
Oasis' Live '25 Tour marked one of the most highly anticipated comebacks in music history. Across 41 shows, the band performed a set of iconic hits, taking the tour across 13 countries over five months and bringing their unmistakable Britpop legacy back
Music & Lights presenta: LED Display & Lighting Open Day
February 11, 2026
Music & Lights presenta: LED Display & Lighting Open Day
Music & Lights è lieta di presentare l'evento LED Display & Lighting Open Day , due giornate interamente dedicate alle più recenti tecnologie LED display e lighting, rivolte ai professionisti del settore rental, system integrator, service e installatori.
PROLIGHTS is heading to ISE 2026 with the debut of four new products
January 30, 2026
PROLIGHTS is heading to ISE 2026 with the debut of four new products
PROLIGHTS will be at Integrated Systems Europe (ISE) from February 3-6, 2026 at Fira Barcelona for a dynamic showcase of its newest lighting solutions. At Booth 6Q500, visitors can join live demos and get access to exclusive previews, with four brand-new
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
January 30, 2026
Muse Profile70CT+: the flagship moving profile with additive 6 colours LED source
PROLIGHTS unveils Muse Profile70CT+ , a moving LED profile designed to deliver uncompromised light quality for theatres, broadcast studios, and film sets. Equipped with a powerful 1000W 6-colour LED source with additive colour mixing, Muse Profile70CT+
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
January 26, 2026
PROLIGHTS introduces Astra Profile300LTIP & 500LTIP: IP65 long-throw LED moving profiles debuting at ISE 2026
PROLIGHTS introduces Astra Profile300LTIP and Astra Profile500LTIP , two new IP65-rated long-throw moving profiles designed to deliver powerful output, flexible optics, and reliable performance from small rigs to large arena productions indoor or out.
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
January 19, 2026
PROLIGHTS expands the Sunrise series with 4FLX: a new four-cell modular blinder, debuting at ISE 2026
PROLIGHTS expands its modular blinder range with SunRise 4FLX , a new four-cell model that transforms the classic 4-lite blinder into a high-performance solution for indoor and outdoor stages. Making its debut at ISE 2026 , SunRise  4FLX is available
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
January 15, 2026
PROLIGHTS lights up Melbourne Museum's ‘Our Wondrous Planet' multisensory journey
After more than two years of design, research, planning, and construction, Our Wondrous Planet , the most expansive science and biodiversity gallery in Museums Victoria's history, has opened at Melbourne Museum , offering visitors a breathtaking multisensory
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
January 07, 2026
The Tutankhamun Galleries at the Grand Egyptian Museum Lit by PROLIGHTS
The Grand Egyptian Museum (GEM) , officially inaugurated on 1 November 2025 on the Giza plateau, is the world's largest museum dedicated to a single civilisation. It houses a collection of over 100,000 artefacts, with nearly 50,000 on display, just a
PROLIGHTS Illuminates the Grand Egyptian Museum
January 02, 2026
PROLIGHTS Illuminates the Grand Egyptian Museum
Near one of the Great Pyramid of Khufu at Giza has officially opened a new cultural landmark of the modern era: the Grand Egyptian Museum (GEM) . Described as the world's largest archaeological museum, the GEM houses around 100,000 artefacts spanning
Subscribe to our Newsletter
Loading...
