HALUPIXDUOPACK
PROLIGHTS

HaluPix Duo Pack

ORDER CODE: HALUPIXDUOPACK

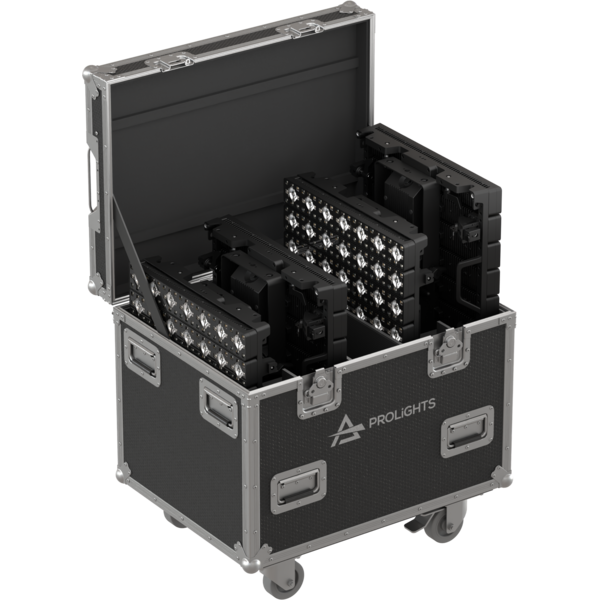

Pack with 4 HALUPIXDUO, flight case, 4 power cables

The HaluPix DUO is a dual layer LED matrix that seamlessly integrates lighting and video capabilities into a modular design. This twin-source unit offers high-power, long-throw white beams alongside high-brightness video and strobe features, with full pixel-level control. This integration facilitates diverse and dynamic lighting setups, suitable for a variety of professional stages and TV applications.
Each unit of HaluPix DUO is a 50x50cm (20x20 inches) building block. It comprises two distinct layers of light sources: 441 (21x21) RGB+WW pixels with a 120° beam spread, and 49 (7x7) WarmWhite 4° beam sources. The total power draw is 500W, which can be distributed between either or both groups of light sources according to user preference. Additionally, each emitter is individually pixel controllable, enabling the display of video content on either one or both sources. This offers exceptional brightness and unmatched colors.
The modular frame of HaluPix DUO, akin to LED tile structures, allows seamless interlocking of multiple units. This maintains a consistent pixel pitch across both source groups when using several devices. The frame is designed for versatility, supporting various configurations such as flat or curved, hanging or ground stacking.
HaluPix DUO also excels as an all-weather lighting solution. Its IP65-rated design ensures reliability and durability in both indoor and outdoor applications, protecting against water and dust.
In terms of connectivity, HaluPix DUO comes with an integrated power supply and user interface. It supports a variety of lighting protocols including DMX, RDM, sACN, Art-Net and RDMnet, offering unparalleled flexibility for any setup.

The pack includes:

  • 4 x HALUPIXDUO
  • 1 x flight case (FCLHALUPIXDUO)
  • 4 x power cables


HALUPIXDUOPACK weight: 108 kg

Main features:

    {DESC_CARATTERISTICHE}
See variants

PHOTO GALLERY

HaluPix Duo Pack
HaluPix Duo Pack
HaluPix Duo Pack
HaluPix Duo Pack
HaluPix Duo Pack
HaluPix Duo Pack
HaluPix Duo Pack

Technical specifications

LIGHT SOURCE
  • Light source: 7 x 7 4° 2700K LEDs + 21 x 21 120° RGB+WW LEDs
  • Luminous flux: 11'388 lm (total) @Full
  • Luminous flux: 7'391 lm (beam layer) | 12'555 lm (pixel layer) @Full
  • Lux: (total) 23'686lx @5 m full
  • Lux: (beam layer) 51'268 lx | (pixel layer) 173lx @5 m full
  • CRI: (beam layer) > 80 @2700K; (pixel layer) 94 @3200K; 91,5 @5600K
  • R9: (pixel layer) 94,8 @3200K; 95,8 @5600K
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: (beam layer) 3,6°; (pixel layer) 116°
  • Field angle: (beam layer) 6,8°; (pixel layer) 155°
  • Pixel pitch: (BEAMs) 72 mm | (PIXELs) 24mm / 0''
  • Additional optics: available optional optics for beam LEDs 12°, 24°
COLOUR SYSTEM
  • Colour mixing: (beam layer) Warm White (2700K), (pixel layer) RGB + Warm White
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Pixel patterns: pre-programmed static and dynamic pixel patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static dimmer, colors and color temperature
CONTROL
  • Supported Protocols: DMX512, RDM, ArtNet, RDMnet, sACN (IGMP v2), CRMX (optional)
  • DMX channels: from 12 channels to 1855ch modular and user-customizable DMX architecture (MCA)
  • Pixel control: pixel2pixel control
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: up to 6 independent selectable dimmer curves per source
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO (not included) or via Ethernet with DMX-Workshop
CONNECTIONS
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Data connection: Seetronic Ethernet IP in/out connectors
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 500W
  • Output (at 230V): 4 units on a single power line
  • Output (at 120V): 2 units on a single power line
  • Standby power: 14,8 W
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: fan-free with natural convection
  • Housing: Weatherproof IP65 construction with magnesium alloy
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 500x500x133mm / 19.69''x19.69''x5.24''
  • Weight: 108kg / 238.1lbs
INSTALLATION
  • Suspension and fixing: spigot for tripod use, bracket for truss rigging and hardware for connection of more units
  • Bracket system: spigot for tripod use and bracket for truss rigging
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
  • Curve configurations: -10° to +15° with onboard mechanics - back accessories for ground applications compatible with KAPPAX Ledwall (refer to the user manual for details)
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus

Versions

Accessories & Related Products

FCLHALUPIXDUO
FCLHALUPIXDUO
(Optional)
Flight case for 4 pcs HALUPIXDUO
HDL12
HDL12
(Optional)
Optional Beam Lenses 12° for HALUPIXDUO
HDL24
HDL24
(Optional)
Optional Beam Lenses 24° for HALUPIXDUO
OS25PLUS
OS25PLUS
(Optional)
Quick-lock omega bracket, M12 hole
OS25H3PLUS
OS25H3PLUS
(Optional)
Quick-lock omega bracket, 6 cm height, M12 hole
HDWK
HDWK
(Optional)
Wireless kit, compatible with multiple Prolights products
ECLFRSPG
ECLFRSPG
(Optional)
Spigot for PROLIGHTS fixtures
VBSPG
VBSPG
(Optional)
Spigot for HALUPIXDUO
VBJMPF
VBJMPF
(Optional)
Metal joint used to connect 4 pcs HALUPIXDUO cabinets in flat configuration, M10 hole
VBJMPC
VBJMPC
(Optional)
Metal joint used to connect 4 pcs HALUPIXDUO cabinets in curve configuration, M10 hole
VBHGB01
VBHGB01
(Optional)
Fly bar / ground bar for HALUPIXDUO, 1 column
VBHGB02
VBHGB02
(Optional)
Fly bar / ground bar for HALUPIXDUO, 2 column
KSXCJB
KSXCJB
(Optional)
Ground system back horizontal support for SIGMAX and KAPPAX series LED wall
KSXSPC
KSXSPC
(Optional)
Ground structure spacer for HALUPIXDUO
KSXBS21
KSXBS21
(Optional)
2in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBS31
KSXBS31
(Optional)
3in1 back support for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXBSC
KSXBSC
(Optional)
Back plate for SIGMAX and KAPPAX series LED wall for ground system fixing
KSXGHR
KSXGHR
(Optional)
Ground system back horizontal reinforcement for SIGMAX & KAPPAX series LED wall
OXFCIS150
OXFCIS150
(Optional)
Rigging/ground-stack structure flightcase for all LEDScreen series, 150cm
LRAURORA
LRAURORA
(Optional)
Single Universe DMX/RDM transceiver with WiFi and Bluetooth
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
<b>ÆtherBox</b> One
ÆtherBox One
(Optional)
IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
