LUMIPAR18QTOUR
PROLIGHTS
discontinued

LUMIPAR18QTOUR

ORDER CODE: LUMIPAR18QTOUR

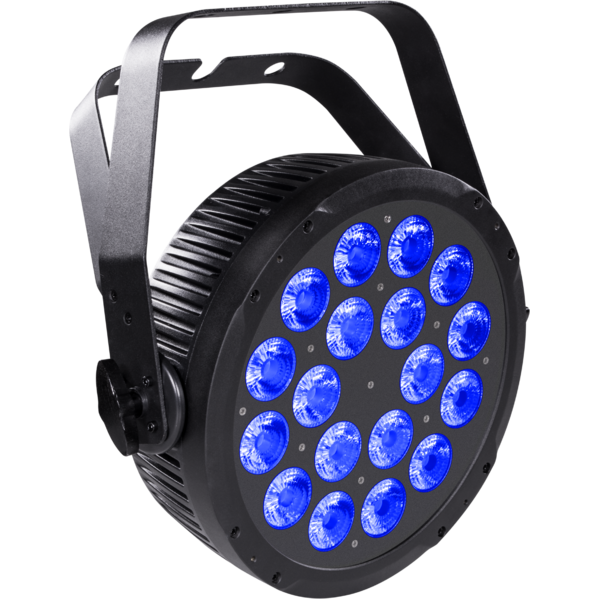

18x10 W tour proof high power RGBW full colour PAR LED

LUMIPAR18QTOUR is a super-slim PAR LED for professional use, designed to be a powerful wash light in rental/touring applications. The high-efficiency RGBW / FC LED light source, the ultra-thin design and absence of fans make LUMIPAR18QTOUR a big innovation compared to traditional PAR CANS, offering higher versatility, easy setup and reduced carrying volume.

Main features:

  • 18x10 W RGBW LEDs
  • Die-cast aluminium housing
  • Flicker-free operation for IMAG and broadcast
See variants

PHOTO GALLERY

LUMIPAR18QTOUR
LUMIPAR18QTOUR
LUMIPAR18QTOUR
LUMIPAR18QTOUR

Technical specifications

LIGHT SOURCE
  • Source: 18x10W RGBW LEDs
  • Source CCT: Tunable 2.800 K - 8.000K
  • Luminous flux: 4'815
  • Lux: 3'107lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 25°
  • Field angle: 35°
  • Lens diameter: 45mm / 1.77''
  • Additional optics: 15° (opt) - 45° (opt)
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K -10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 4 / 6 / 10ch
  • Display: Graphic User Interface
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Signal connection: XLR 3p + 5p IN/OUT connectors
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 161W
  • Output (at 230V): 15 units on a single power line
  • Max power consumption (120V): 130W
  • Output (at 120V): 8 units on a single power line
PHYSICAL
  • IP rating: IP30
  • Cooling: fan-free with natural convection
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 349x280x278mm / 13.74''x11.02''x10.94''
  • Weight: 5,66kg / 12.48lbs
INSTALLATION
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

Versions

Accessories & Related Products

UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
ARCLUMIL15D45
ARCLUMIL15D45
(Optional)
Optic lens 15°, D.45mm
ARCLUMIL25D45
ARCLUMIL25D45
(Included)
Optic lens 25°, D.45mm
ARCLUMIL45D45
ARCLUMIL45D45
(Optional)
Optic lens 45°, D.45mm

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualLumipar18qtour_USER_MANUAL_ITEN.pdf(15/10/2014)4MB

DMX chart & personalities

File name File size Download

LUMIPAR18QTOUR Firmware rev. 1.3

manufacturer fixture library (Link) Link
prolights_lumipar18qtour.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
lumipar18qtour_4ch.fdfDownload
lumipar18qtour_6ch.fdfDownload
lumipar18qtour_10ch.fdfDownload
lumipar 18q tour.sslDownload
lumipar 18q tour_mode1.sslDownload
lumipar 18q tour_mode2.sslDownload
lumipar 18q tour.ssl2Download
manufacturer fixture library (Link) Link
prolights_lumipar18qtour_ma2.zipDownload
manufacturer fixture library (Link) Link
lumipar 18q tour 4 channel.fix2Download
lumipar 18q tour 6 channel.fix2Download
lumipar 18q tour 10 channel.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
2DLumipar18qtour_CAD_2D.dwg(22/08/2018)3MB
3DLumipar18qtour_CAD_3D.dwg(09/10/2019)22MB
Technical drawingLumipar18qtour_TECHNICAL_DRAWING.pdf(09/05/2019)375KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 15/12/2018 10 second default display backlight. Rev. 1
Rev. 2
