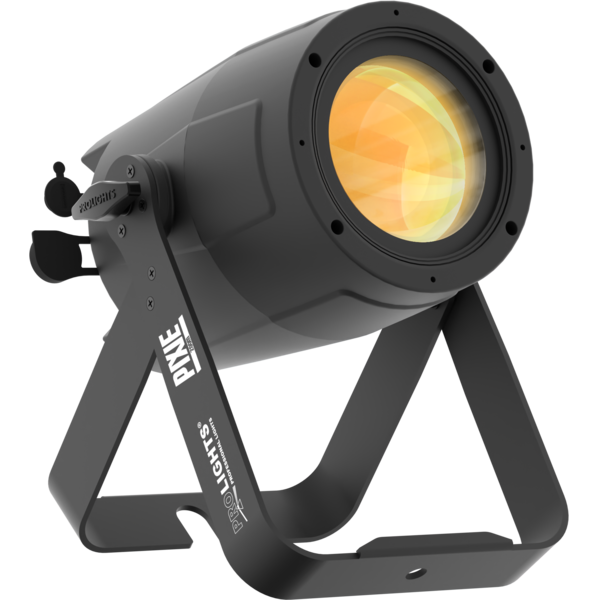

Pixie Zoom

ORDER CODE: PIXIEZOOM

60W IP65 single source full colour zoom PAR

Pixie Zoom is a single-source LED PAR featuring a 6°- 41,6° linear zoom and a fully homogenised output. Its IP65 housing and solid build allow it to be used in any event from theaters to festivals.

Main features:

  • Single 60W RGBW LED source delivers an even beam and full colour spectrum
  • Wide linear zoom from 6° to 41,6°
  • IP65 rating allowing for flexible use
See variants

PHOTO GALLERY

Pixie Zoom
Pixie Zoom
Pixie Zoom
Pixie Zoom

Technical specifications

LIGHT SOURCE
  • Source: 60W RGBW Osram LED
  • Luminous flux: (6°) 777 lm - (41,6°) 926 @Full
  • Lux: (6°) 2'996 lx - (41,6°) 208lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 6° - 41,6° motorised linear zoom
  • Lens diameter: 100mm / 3.94''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 8.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 5 / 7 / 11ch
  • RDM: for remote addressing and parameter configuration
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: included, self-charging battery backup
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 85W
  • Output (at 230V): 22 units on a single power line
  • Power factor: > 0,90
CONNECTIONS
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: pressure equalisation through GORE membrane vents
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 259x347x265mm / 10.2''x13.66''x10.43''
  • Weight: 5,5kg / 12.13lbs
INSTALLATION
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
FCLPIXIEZOOM
FCLPIXIEZOOM
(Optional)
Flightcase for 8 PIXIEZOOM
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetPixiezoom_A4_DATASHEET_(IT).pdf(30/04/2021)339KB
Letter datasheetPixiezoom_A4_DATASHEET_(EN).pdf(02/09/2021)342KB

User manual

File name File size Download
User manualPixiezoom_USER_MANUAL_ITEN.pdf(07/01/2019)1MB

DMX chart & personalities

File name File size Download
DMX chartPixiezoom_DMX_CHARTS.pdf(03/12/2018)47KB

PIXIEZOOM Firmware rev. 2.2

manufacturer fixture library (Link) Link
prolights_pixiezoom.d4Download
manufacturer fixture library (Link) Link
prolights_pixiezoom_5ch.hedDownload
prolights_pixiezoom_7ch.hedDownload
prolights_pixiezoom_11ch.hedDownload
manufacturer fixture library (Link) Link
prolights@pixiezoom_7ch@.xmlDownload
prolights@pixiezoom_11ch@.xmlDownload
prolights@pixiezoom_5ch@.xmlDownload
pixiezoom_5ch.hog4showDownload
pixiezoom_7ch.hog4showDownload
pixiezoom_7ch_3_8.hog4showDownload
manufacturer fixture library (Link) Link
pixie zoom 5 channel.fix2Download
pixie zoom 7 channel.fix2Download
pixie zoom 11 channel.fix2Download

PIXIEZOOM Firmware rev. 2.1

manufacturer fixture library (Link) Link
prolights_pixiezoom.d4Download
manufacturer fixture library (Link) Link
prolights_pixiezoom_5ch.hedDownload
prolights_pixiezoom_7ch.hedDownload
prolights_pixiezoom_11ch.hedDownload
manufacturer fixture library (Link) Link
prolights@pixiezoom_7ch@.xmlDownload
prolights@pixiezoom_11ch@.xmlDownload
prolights@pixiezoom_5ch@.xmlDownload
pixiezoom_5ch.hog4showDownload
pixiezoom_7ch.hog4showDownload
pixiezoom_7ch_3_8.hog4showDownload
manufacturer fixture library (Link) Link
pixie zoom 5 channel.fix2Download
pixie zoom 7 channel.fix2Download
pixie zoom 11 channel.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAPixiezoom_3D.rfa(23/04/2021)952KB
3D SKPPixiezoom_3D.skp(23/03/2020)2MB
2DPixiezoom_CAD_2D.dwg(28/04/2021)3MB
3DPixiezoom_CAD_3D.dwg(24/03/2020)318KB
2D cad symbolsPixiezoom_CAD_2DSYMBOLS.dwg(09/03/2020)62KB
Technical drawingPixiezoom_TECHNICAL_DRAWING.pdf(28/04/2021)269KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)387KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.2 STABLE 31/05/2021 Improved display management
2.1 STABLE 05/12/2018 Added Studio Mode Added Silent Mode
