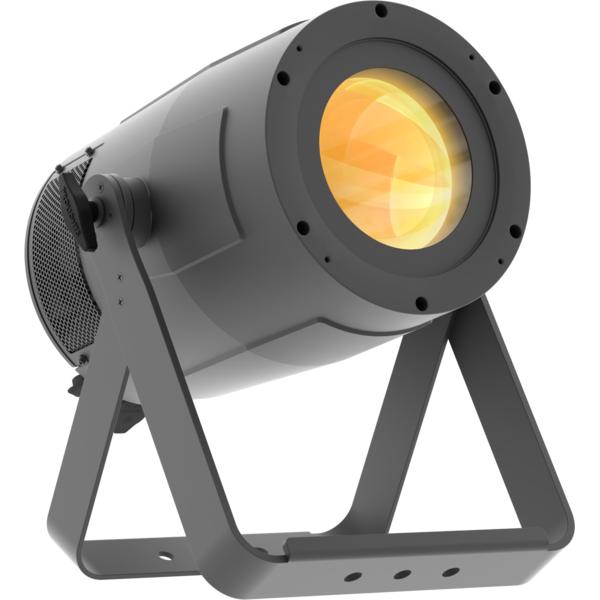

Pixie ZoomXB

ORDER CODE: PIXIEZOOMXB

280W IP65 single source full colour zoom PAR

Pixie ZoomXB is a super bright single-source IP rated LED PAR featuring a 7° - 42° linear zoom and a fully homogenised output. Pixie ZoomXB is equipped with a proprietary 280W RGB + Warm White LED module which delivers a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning. Pixie ZoomXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being IP rated and offering a wide zoom range, the Pixie ZoomXB offers unprecedented flexibility and is a truly indispensable fixture for every rental company.

SPEKTRA

Main features:

  • 280W proprietary RGB + Warm White LED delivering high CRI, TLCI, TM30 values
  • 7° to 42° linear zoom with superior evenness
  • IP65 for temporary installation and WDMX on-board
See variants

PHOTO GALLERY

Pixie ZoomXB
Pixie ZoomXB
Pixie ZoomXB
Pixie ZoomXB

Technical specifications

LIGHT SOURCE
  • Source: 280W RGB + Warm White LEDs
  • Source CCT: @full 6.000K
  • Luminous flux: (7°) 2'516 lm - (42°) 2'757 @Full
  • Lux: (7°) 6'531 lx - (42°) 477lx @5 m full
  • CRI: 91 @3.200 K; 88,6 @5.600 K
  • R9: 80 @3.200 K; 82,5 @5.600 K
  • TLCI: 80 @5.600 K
  • TM30 Rf: 89 @3.200 K; 88 @5.600 K
  • TM30 Rg: 108 @3.200 K; 108 @5.600 K
  • Source life expectancy: > 30.000 h
OPTICS
  • Zoom range: 7° - 42° motorised linear zoom
  • Lens diameter: 125mm / 4.92''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 8.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM, W-DMX
  • DMX channels: 5 / 7 / 11ch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: included, self-charging battery backup
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade with: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 265W
  • Output (at 230V): 10 units on a single power line
  • Power factor: >0,95
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: heat pipe with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 335x418x342mm / 13.19''x16.46''x13.46''
  • Weight: 11,8kg / 26.01lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and floor positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b> One
ÆtherBox One
(Optional)
IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
FCLPIXIEZOOMXB
FCLPIXIEZOOMXB
(Optional)
Flightcase for 4 pcs of PIXIEZOOMXB
pixiezoomxbbd
pixiezoomxbbd
(Optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetPixiezoomxb_A4_DATASHEET_(EN).pdf(06/09/2024)430KB

User manual

File name File size Download
User manualPixiezoomxb_USER_MANUAL.pdf(26/10/2019)14MB
User manualPixiezoomxb_Wireless_Protocol_Compatibilit_EN.pdf(12/06/2023)4MB

DMX chart & personalities

File name File size Download
DMX chartPixiezoomxb_DMX_CHARTS.pdf(26/10/2019)53KB

PIXIEZOOMXB Firmware rev. 1.4

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@pixiezoomxb@5ch.xmlDownload
prolights@pixiezoomxb@7ch.xmlDownload
prolights@pixiezoomxb@11ch.xmlDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAPixiezoomxb_3D.rfa(23/04/2021)988KB
3D SKPPixiezoomxb_3D.skp(23/03/2020)2MB
2DPixiezoomxb_CAD_2D.dwg(28/04/2021)9MB
3DPixiezoomxb_CAD_3D.dwg(24/03/2020)356KB
2D cad symbolsPixiezoomxb_CAD_2DSYMBOLS.dwg(09/03/2020)62KB
Technical drawingPixiezoomxb_TECHNICAL_DRAWING.pdf(28/04/2021)825KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(20/05/2026)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)648KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

Methods are listed in the product specs - ELECTRONICS > Firmware upgrade.

Method / Device Extension Required software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) UPBOX1 and UPBOX2 are still usable - check compatibility on the product accessories page. UPBOX2 requires drivers from this link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO - see the products list.

Update procedure
  1. Check the update methods on your product (ELECTRONICS> Firmware upgrade).
  2. Download the firmware and the dedicated software.
  3. Follow the update guide included in the firmware folder.

Need help?
support@prolights.it

Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 26/11/2024 Improvement:
  • Improved power management.
 Rev. 1.0
