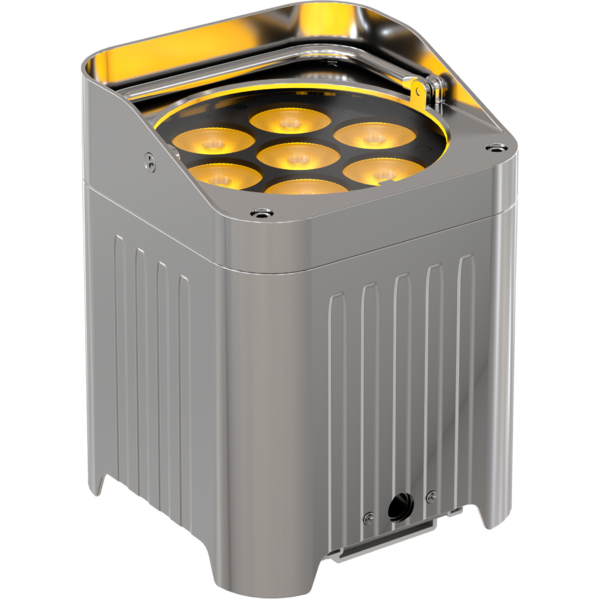

Smart BatPlusNeo

Battery Uplighter with 60W LED source RGB+WW, IP rated

The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat DNA with state-of-the-art technologies and upgrades.

Equipped with 7x RGB+WW emitters, the Smart BatPlus Neo offers a significant performance boost. Delivering up to 3,000 lumens, it provides double the brightness of its predecessor during a 3-hour runtime. Even when operating at full power, it achieves 20% greater output over the same runtime and an average 60% improvement in primary and mixed colors, thanks to its enhanced light source. Its advanced color-mixing capabilities ensure deeper, richer tones and precision white light with high color rendering (CRI up to 90), making it a versatile and reliable choice for lighting professionals.

With a smaller footprint and available in both the classic chrome and a sleek black finish, the Neo adapts effortlessly to various event designs while maintaining its hallmark reliability and adaptability.

Its advanced Battery Management System (BMS) ensures safer recharging, selectable runtime, optimized performance and robust handling.

The Smart BatPlus Neo supports a comprehensive range of accessories and optical modifiers, offering unparalleled flexibility for diverse applications. Its intuitive magnetic mounting system allows users to attach and adjust accessories easily for precise light focusing.

Main features:

  • IP rated battery uplighter with 7x10W RGB+WW LEDs
  • CRMX wireless supported
  • Legacy mode ensures backward compatibility with previous Smartbat+ DMX personality and color setting
See variants

PHOTO GALLERY

Smart BatPlusNeo
Smart BatPlusNeo
Smart BatPlusNeo
Smart BatPlusNeo
Smart BatPlusNeo
Smart BatPlusNeo
Smart BatPlusNeo
Smart BatPlusNeo

Technical specifications

LIGHT SOURCE
  • Source: 7x10W RGB + Warm White LED
  • Luminous flux: 2'927 lm @Full
  • Lux: 1'493lx @5 m full
  • CRI: Up to 90
  • R9: Up to 80
  • TLCI: Up to 80
  • TM30 Rf: > 90
  • TM30 Rg: < 107
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 11°
  • Field angle: 21°
  • Additional optics: see available accessories
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control range from 2.800K to 10.000K, + / - green correction, tungsten emulation
  • White presets: 2.700 K -10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: CRMX+W-DMX, RDM
  • DMX channels: 4/6/10/3 ch in legacy mode | 1/5/11/17ch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
  • Master/Slave: for multi-unit sync, set one unit as wireless TX (master DMX) and all others as slave receivers.
MOVEMENT
  • Tilt: (up to) 20° with adjustable foot support
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
BATTERY
  • Battery: 16,8V lithium
  • Estimated battery life: up to 3 / 6 / 8 / 12 / 18 / 24 h (selectable)
  • Recharge connection: magnetic fast-charge in case
  • Recharge time: 4h (max)
  • Battery level indicator: shown on display
CONNECTIONS
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Data connection: CRMX transceiver compatible with CRMX and W-DMX G3/G4s
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz (SBPLUSNEOPOWER charger not included)
  • Max power consumption (230V): 66W
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: fan-free with natural convection
  • Housing: Sturdy die-cast aluminium body
  • Finish: black or mirror
  • Operating temperature: Ta 0 to +45 °C (+32 to +113 °F)
  • Dimensions (WxHxD): 138x180x147mm / 5.43''x7.09''x5.79''
  • Weight: 3,4kg / 7.5lbs
INSTALLATION
  • Suspension and fixing: M12 threaded insert for easy clamp installation
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Code
Finishing
SMARTBATPLUSNEO
SMARTBATPLUSNEO
Chrome
SMARTBATPLUSNEOBK
SMARTBATPLUSNEOBK
Black

Accessories & Related Products

FCLSMARTBATPNEO
FCLSMARTBATPNEO
(Optional)
Flight case for 6 SMARTBATPLUSNEO, battery charger included
<b>IR</b> Controller
IR Controller
(Optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
SBPNEOL10
SBPNEOL10
(Included)
Lens for SMARTBATPLUSNEO series, 10°
SBPNEOL20
SBPNEOL20
(Optional)
Lens for SMARTBATPLUSNEO series, 20°
SBPNEOL35
SBPNEOL35
(Optional)
Lens for SMARTBATPLUSNEO series, 35°
SBPNEOL60
SBPNEOL60
(Optional)
Lens for SMARTBATPLUSNEO series, 60°
SBPNEOFILT20
SBPNEOFILT20
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 20°
SBPNEOFILT40
SBPNEOFILT40
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 40°
SBPNEOFILT60
SBPNEOFILT60
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 60°
SBPNEOFILT1060
SBPNEOFILT1060
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 10°x60°
SBPNEOFILT3060
SBPNEOFILT3060
(Optional)
Light diffusion filter for SMARTBATPLUSNEO series, 30°x60°
SBPNEOFF
SBPNEOFF
(Optional)
Filter frame for SMARTBATPLUSNEO series
SBPNEOSNOOT
SBPNEOSNOOT
(Optional)
Snoot for SMARTBATPLUSNEO series
SBPNEOPOWER
SBPNEOPOWER
(Optional)
SMARTBATPLUSNEO recharging base
SBPUPBOXI
SBPUPBOXI
(Optional)
Interface between UPBOX1 and SMARTBATPLUS and SMARTBATPLUSNEO for make firmware upgrade
SETMA5M3F
SETMA5M3F
(Optional)
Male 5-pin XLR adapter <=> female 3-pin XLR
C6018A
C6018A
(Optional)
Selflock slim clamp, 200 kg load, 48-80 mm tubes, M12 bolt incl, aluminium
<b>ÆtherBox</b> One
ÆtherBox One
(Optional)
IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6018B
C6018B
(Optional)
Selflock slim clamp, 200 kg load, 48-80 mm tubes, M12 bolt incl, black
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetSmartbatplusneo_A4_DATASHEET_(ITA).pdf(22/08/2025)333KB
Letter datasheetSmartbatplusneo_LETTER_DATASHEET_(EN).pdf(22/08/2025)335KB
Letter datasheetSmartbatplusneobk_A4_DATASHEET_(EN).pdf(22/08/2025)335KB
Tender SpecificationSmartbatplusne_TENDER_SPECIFICATION.pdf(21/01/2025)287KB

User manual

File name File size Download
User manualSmartbatplusne_USER_MANUAL_EN.pdf(26/03/2026)3MB
User manualGENERAL_BATTERY_SAFETY_INFO.pdf(27/04/2023)3MB
User manualSmartbatplusne_General_Safety_Information.pdf(11/04/2025)3MB

DMX chart & personalities

File name File size Download
DMX chartSmartbatplusne_DMX_CHARTS.pdf(26/03/2026)151KB

SMARTBATPLUSNE Firmware rev. 1.1.07.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
smartbat_plusneo.hog5libDownload
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPSmartbatplusneo_3D.skp(02/08/2024)736KB
3DSmartbatplusneo_CAD_3D.dwg(02/08/2024)416KB
2DSmartbatplusneo_CAD_2D.dwg(20/12/2024)1MB
Technical drawingSmartbatplusneo_TECHNICAL_DRAWING.pdf(20/12/2024)151KB
VectorWorksSMARTBATPLUSNE_SYMBOLS.zip929KB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.07.0 STABLE 20/01/2026

Improvements:

  • Improved charging management
  • Improved battery reading/usage.

Fixed Bug:

  • After installing the firmware and performing a Factory Reload, the default settings sometimes aren't restored correctly.
