SMARTBATWASHPACK
PROLIGHTS

Smart BatWashPack

ORDER CODE: SMARTBATWASHPACK

15x20W LED Wash Light, IP65 rated, with an RGB + Warm White LED source, wirelessly controlled with battery or wired with mains power

The SmartBat Wash is a high-powered LED Wash Light, that can be operated wirelessly or wired.
This IP65 Wash Light has 15 x 20W RGB + Warm White LED emitters, it's SPEKTRA calibrated to guarantee consistency, high-quality white values (CRI >93), a dynamic array of true colours with smooth colour mixing, and a powerful 6,282 lumen output.
The SmartBat Wash is extremely flexible, and it can be used wirelessly with the built-in battery, using CRMX, W-DMX and RDM or, alternatively, wired with power and data cables, bypassing the battery, and enabling higher brightness levels.
The beam angle can easily be adjustable through a magnetic beam shaper filter, allowing a wider coverage whilst keeping a high output. The SmartBat Wash has all the software features of the Ecl range, sharing the same user settings and capabilities.

 The pack includes:

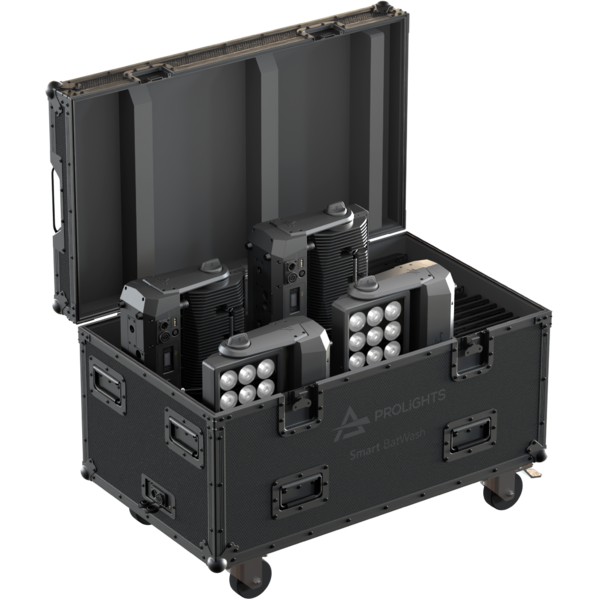

1 x FLIGHT CASE with AC SEETRONIC IP65 power IN/OUT connector outside and 4 x AC power OUT connectors inside
4 x SMARTBATWASH with 25° magnetics filter on-board
4 x barndoors (SBWBD)
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power IN connector)
4 x 0,25 meters link power cable (SEETRONIC IP65 power OUT connector - SEETRONIC IP65 power IN connector)
4 x omega clamp (OS25)
1 x User Manual


SPEKTRA

Main features:

  • High-powered IP65 LED Wash Light, wireless (CRMX+W-DMX)/wired control, battery/AC power
  • 15x20W RGB + Warm White LED source, powerful 6,282 lumen output high CRI (>93)
  • Range of holographic filters that modify the shape of the beam angle
See variants

PHOTO GALLERY

Smart BatWashPack
Smart BatWashPack
Smart BatWashPack
Smart BatWashPack
Smart BatWashPack
Smart BatWashPack
Smart BatWashPack
Smart BatWashPack
Smart BatWashPack
Smart BatWashPack

Technical specifications

LIGHT SOURCE
  • Source: 15x20W RGB + Warm White LED
  • Luminous flux: 6'300 lm @full
  • Lux: 4'451lx @5 m full
  • CRI: > 95 @3200K ; > 93 @5600K
  • R9: > 98 @3200K ; > 93 @5600K
  • TLCI: > 84 @5600K
  • TM30 Rf: 94.2 @3200K ; > 92 @5600K
  • TM30 Rg: 104.4 @3200K ; > 105 @5600K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 10°
COLOUR SYSTEM
  • Colour mixing: RGBWW
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2'800K - 10'000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX + WDMX
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
BATTERY
  • Battery: 16,8V lithium
  • Estimated battery life: up to 3 / 6 / 8 / 12 / 16 / 18 h (selectable)
  • Recharge connection: Directly from the mains power or magnetic fast-charge in case
  • Recharge time: 5h (max)
  • Battery level indicator: shown on display
  • Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase
CONNECTIONS
  • Power connection: magnetic DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN/OUT connector
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 180W
  • Output (at 230V): (Data for SMARTBATWASHPACK) 2 units on a single power line
  • Output (at 120V): (Data for SMARTBATWASHPACK) 1 units on a single power line
  • Power factor: >0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Cooling: fan-free with natural convection
  • Housing: Sturdy die-cast aluminium body
  • Finish: black (RAL 9004)
  • Operating temperature: Ta 0 to +45 °C (+32 to +113 °F)
  • Dimensions (WxHxD): 381x344x143mm / 15''x13.54''x5.63''
  • Weight: 9,8kg / 21.61lbs
INSTALLATION
  • Suspension and fixing: any position with quick-lock omega brackets
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC

Versions

Accessories & Related Products

OS25PLUS
OS25PLUS
(Optional)
Quick-lock omega bracket, M12 hole
FCLSMARTBATWASH
FCLSMARTBATWASH
(Included)
Flight case for 4 SMARTBATPLUSWASH, internal AC battery charging
SBWFILTER25
SBWFILTER25
(Included)
25° symmetric light diffusion filter for SMARTBATWASH
SBWFILTER40
SBWFILTER40
(Optional)
40° symmetric light diffusion filter for SMARTBATWASH
SBWFILTER1060
SBWFILTER1060
(Optional)
10x60° asymmetric light diffusion filter for SMARTBATWASH
SBWBD
SBWBD
(Included)
Black&White& White barn door 4 directional flaps to adjust the light beam, comp. SMARTBATWASH
SBWPOWER
SBWPOWER
(Optional)
Single charger for SMARTBATWASH
<b>IR</b> Controller
IR Controller
(Optional)
RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
