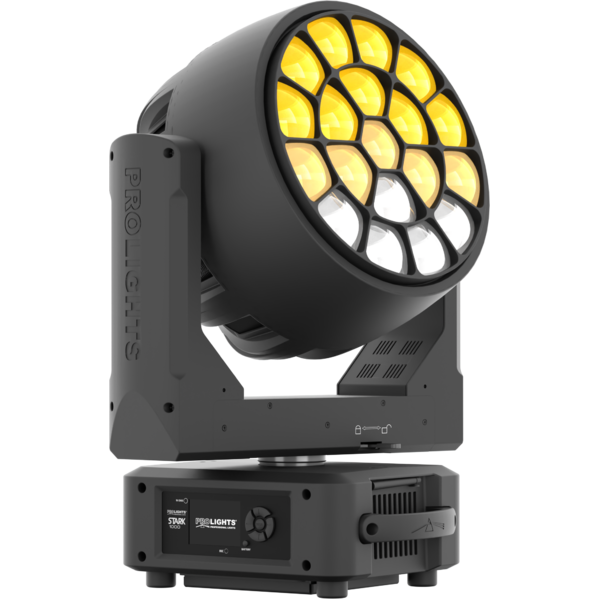

Stark 1000

ORDER CODE: STARK1000

19x40W high power LED wash/beam light with pixel mapping

Stark 1000 is a new generation, high output, LED wash light designed to bring the workhorse LED wash light up-to-date. Featuring 19 of Osrams new 40W RGBW Ostar LEDs it delivers massive output with a huge colour range and an extensive toolkit of effects.

Main features:

  • 19 LED RGBW/FC Osram 40W
  • Massive 4° to 38° linear zoom range from beam to wash
  • Individual control of calibrated pixels with on-board FX generator for fast and precise effects
  • Liquid cooling system for efficient cooling with virtually no noise

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 19x40W RGBW Osram Ostar LEDs
  • Source CCT: Tunable 2.000 K ~ 10.000K
  • Luminous flux: (4°) 6'420 lm - (38°) 6'893 @Full
  • Lux: (4°) 38'175lx @5 m full
  • Lux: (38°) 1'895lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 4° - 38° motorised linear zoom
  • Lens diameter: 275mm / 10.83''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
CONTROL
  • Supported Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 16 / 26 / 27 / 36 / 98ch
  • Pixel control: pixel2pixel control
  • Wireless Control: Included Wireless Solution receiver
  • RDM: for remote addressing and parameter configuration
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (not included)
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: THEATRE mode for silent operation and fan control throught DMX
MOVEMENT
  • Pan: 540° / 630° - 16-bit resolution
  • Tilt: 233° - 16-bit resolution
  • Position feedback: automatic repositioning after external movement
  • Pan / tilt lock: for transport and maintenance
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: included, self-charging battery backup
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 615W
  • Max power consumption (120V): 615W
  • Power factor: 0,96
CONNECTIONS
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
PHYSICAL
  • IP rating: IP20
  • Cooling: heat pipe with low-noise fan
  • Housing: Aluminium structure with high-resistance polycarbonate cover
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 431x564x248mm / 16.97''x22.2''x9.76''
  • Weight: 18kg / 39.68lbs
INSTALLATION
  • Suspension and fixing: any position with quick-lock omega brackets
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

OS24PLUS
OS24PLUS
(Optional)
Quick-lock omega bracket, M12 hole
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
FSHLW02
FSHLW02
(Optional)
1U Foam shell compatible with DIAMOND37, STARK1000

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetStark1000_LETTER_DATASHEET_(EN).pdf(28/09/2021)493KB
Letter datasheetStark1000_A4_DATASHEET_(IT).pdf(30/04/2021)538KB
Letter datasheetStark1000_A4_DATASHEET_(EN).pdf(13/09/2021)493KB

User manual

File name File size Download
User manualStark1000_USER_MANUAL_ITEN.pdf(29/11/2019)3MB

DMX chart & personalities

File name File size Download
DMX chartStark1000_DMX_CHARTS.pdf(29/11/2019)254KB

STARK1000 Firmware rev. 2.2.00

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@stark1000_26ch_fx(2.0)@.xmlDownload
prolights@stark1000_98ch_pixfx(2.0)@.xmlDownload
prolights@stark1000_wash@wash.xmlDownload
prolights@stark_1000@ring.xmlDownload
manufacturer fixture library (Link) Link
stark1000_hog3.zipDownload
stark_1000.hog4showDownload
stark1000 wash_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
stark 1000 fx.fix2Download
stark 1000 pix-fx.fix2Download
stark 1000 wash.fix2Download
manufacturer fixture library (Link) Link

STARK1000 Firmware rev. 1.5.00

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@stark1000_26ch_fx(2.0)@.xmlDownload
prolights@stark1000_98ch_pixfx(2.0)@.xmlDownload
prolights@stark1000_wash@wash.xmlDownload
prolights@stark_1000@ring.xmlDownload
manufacturer fixture library (Link) Link
stark1000_hog3.zipDownload
stark_1000.hog4showDownload
stark1000 wash_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
stark 1000 fx.fix2Download
stark 1000 pix-fx.fix2Download
stark 1000 wash.fix2Download
manufacturer fixture library (Link) Link

CAD symbols & drawings

File name File size Download
3D RFAStark1000_3D.rfa(23/04/2021)748KB
3D SKPStark1000_3D.skp(13/03/2020)2MB
2DStark1000_CAD_2D.dwg(11/05/2021)3MB
3DStark1000_CAD_3D.dwg(09/10/2019)1MB
2D cad symbolsStark1000_CAD_2DSYMBOLS.dwg(09/03/2020)68KB
Technical drawingStark1000_TECHNICAL_DRAWING.pdf(11/05/2021)370KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)607KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.2.00 STABLE 04/11/2019 Firmware version for units with LED PCB type D
Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx
Improved strobe and pattern sync between different fixtures.
Rev. 2 Not noted on unit's label
1.5.00 STABLE 04/11/2019 Firmware version for units with LED PCB type C
Firmware compatiblity can be checked considering the starting number of the firmware release already installed on the unit.
Unit with firmware version 1.x.xx can be updated only with 1.x.xx version and not with 2.x.xx
Matched completly all functions and all dmx modes: added RING and FX 16 BIT modes. Improved strobe and pattern sync between different fixtures.
Rev. 1 Not noted on unit's label
