Z7SPOT
PROLIGHTS
end of life

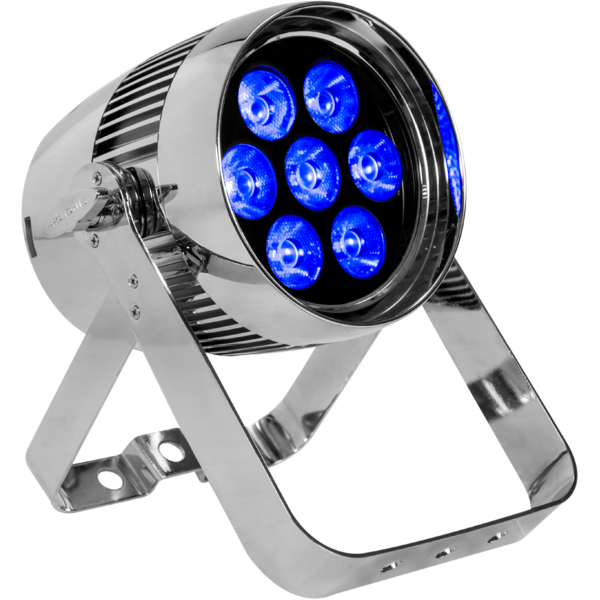

Z 7Spot

ORDER CODE: Z7SPOT

High power battery operated LED PAR

Z 7Spot is a new generation battery operated fixture that marks a new step in wireless lighting technology, being one of the brightest portable LED PAR in the event industry. Z 7Spot is encased in waterproof IP rating housing allowing for use in any working condition and features 7x10 W high power RGBW full colour CREE LEDs to achieve high-brightness - it can also be used for temporary architectural installations.

Main features:

  • Huge light output from an LED battery luminaire with 7x10 W CREE XML RGBW LEDs
  • Wireless DMX control, 8 hours battery life on full white, and IP65 rating for incredible versatility
  • On board mains and DMX connectors for standard use

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 7x10W RGBW LEDs
  • Luminous flux: 1'429
  • Lux: 4'081lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 15°
  • Field angle: 23°
  • Additional optics: Magnetic holder for diffusion filters or gels
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512, W-DMX
  • DMX channels: 4 / 6 / 10ch
  • Display: black OLED touch display
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
BATTERY
  • Battery: 14,8V lithium
  • Battery life in colour change mode up to: 19h
  • Battery life in single colour mode up to: R: 20 h - G: 15 h - B: 15 h - W: 15h
  • Battery life in full-mode up to: 7h
  • Recharge connection: power cable and / or magnetic fast-charge in case
  • Recharge time: 6h (max)
  • Battery level indicator: shown on display
CONNECTIONS
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: integrated W-DMX receiver
  • Data connection: W-DMX receiver
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
PHYSICAL
  • IP rating: IP65 (front) - IP54 (bottom) for temporary outdoor use
  • Cooling: fan-free with natural convection
  • Housing: Sturdy die-cast aluminium body
  • Finish: mirror finishing
  • Operating temperature: Ta 0 to +35 °C (+32 to +95 °F)
  • Dimensions (WxHxD): 272x347x215mm / 10.71''x13.66''x8.46''
  • Weight: 7,25kg / 15.98lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
<b>ÆtherBox</b> One
ÆtherBox One
(Optional)
IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
FCLZ7SPOT
FCLZ7SPOT
(Optional)
Flight case with battery charger for 6 Z7SPOT
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetZ7spot_A4_DATASHEET_(IT).pdf(04/05/2021)213KB
Letter datasheetZ7spot_A4_DATASHEET_(EN).pdf(02/09/2021)239KB

User manual

File name File size Download
User manualZ7spot_USER_MANUAL_ITEN.pdf(01/08/2017)2MB

DMX chart & personalities

File name File size Download
DMX chartZ7spot_DMX_CHARTS.pdf(01/02/2018)46KB

Z7SPOT Firmware rev. 1.4

manufacturer fixture library (Link) Link
prolights_z7spot.d4Download
manufacturer fixture library (Link) Link
prolights_z7spot_4ch.hedDownload
prolights_z7spot_6ch.hedDownload
prolights_z7spot_10ch.hedDownload
manufacturer fixture library (Link) Link
z7spot_4ch.fdfDownload
z7spot_6ch.fdfDownload
z7spot_10ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@z7_spot@4_channel@initial.xmlpDownload
prolights@z7_spot@6_channel@initial.xmlpDownload
prolights@z7_spot@10_channel@initial.xmlpDownload
manufacturer fixture library (Link) Link
z7 spot 4 channel.fix2Download
z7 spot 6 channel.fix2Download
z7 spot 10 channel.fix2Download

Photometrics

CAD symbols & drawings

File name File size Download
3DZ7spot_CAD_3D.dwg(10/10/2019)41MB
2DZ7spot_CAD_2D.dwg(28/04/2021)2MB
Technical drawingZ7spot_TECHNICAL_DRAWING.pdf(28/04/2021)409KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 05/12/2018 10 second default display backlight
