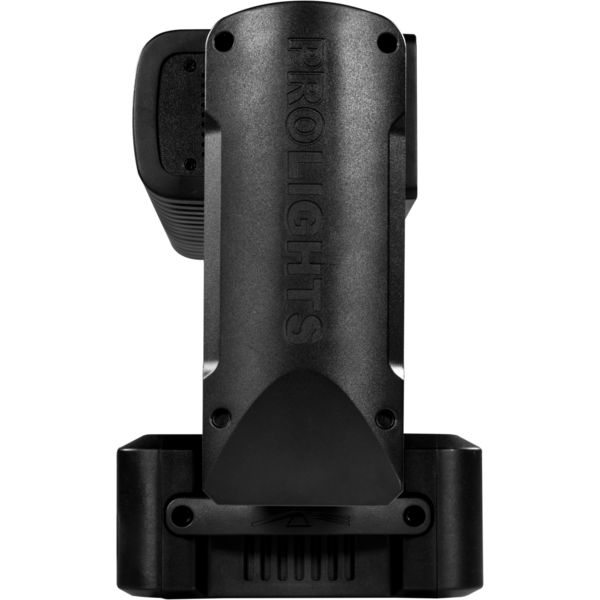

Air 6Pix
ORDER CODE: AIR6PIX
Share me

Immagine Principale
  • AIR6PIX
  • AIR6PIX
  • AIR6PIX
  • AIR6PIX
  • AIR6PIX
  • AIR6PIX
  • AIR6PIX

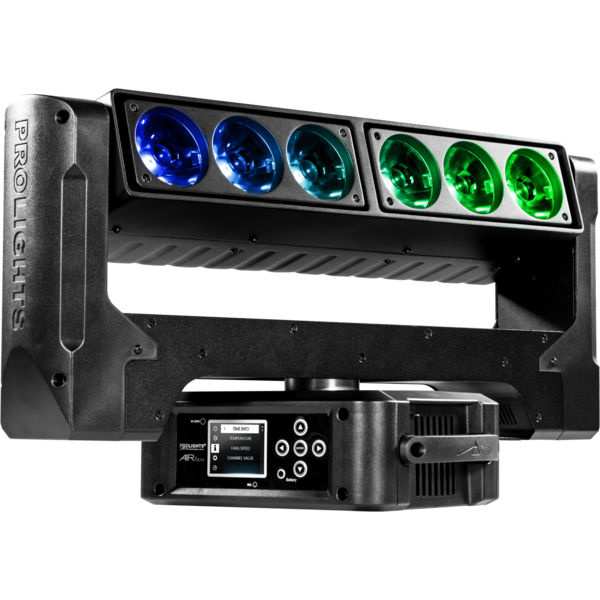

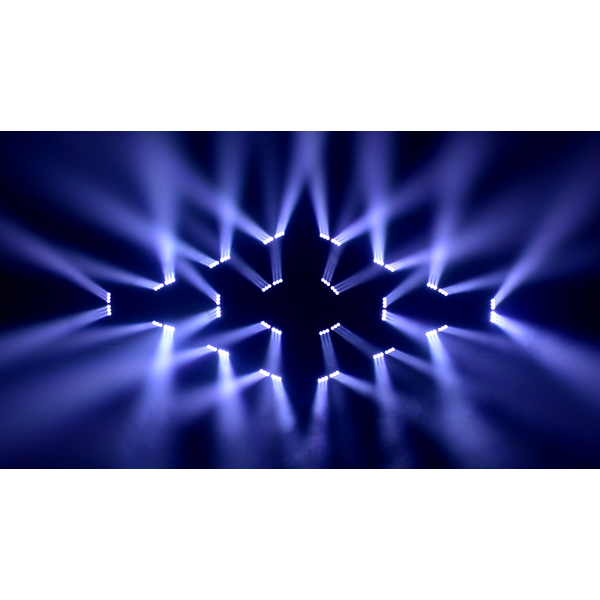

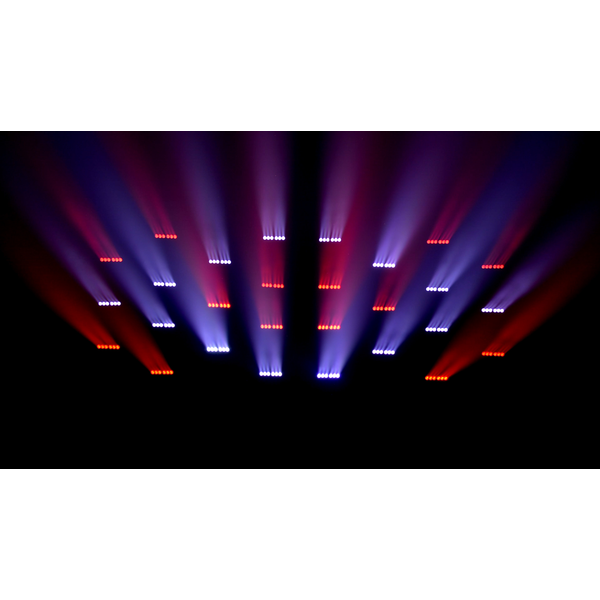

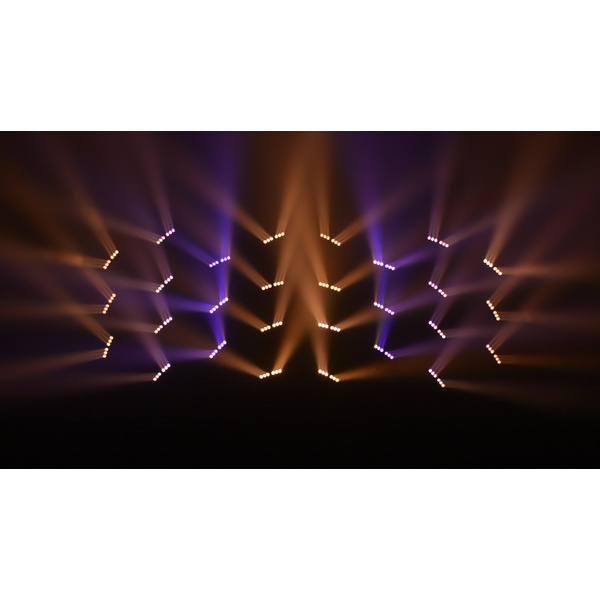

    • Air 6Pix is a moving batten designed to deliver a powerful blade of beams. Each of the 4,5° RGBW LED pixels are individually controllable and both sides pivot to create classic ACL 'fan' and 'knot' looks. With infinite rotation of both pan and tilt, the only limit is the designer's imagination.

    Features:

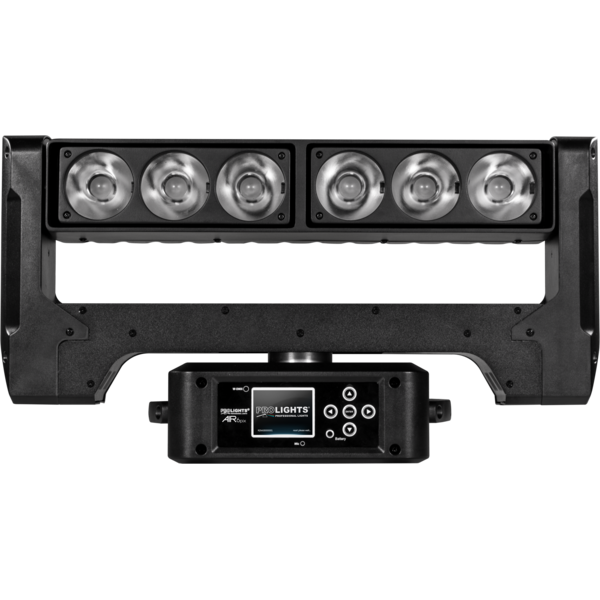

    6x40W RGBW LED with 67 mm lenses each deliver a bright, consistent 4,5° beam
    Infinite pan and tilt rotation plus beam pivot provides movement on 3 axis
    Individual pixel control with an on-board generator for precise and fast to create effects

    LIGHT SOURCE
    • Source:
      6x40
      W
      RGBW LEDs
    • Lux:
      85'611
      lx
      @3 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      4,5
      °
    • Lens diameter:
      67
      mm
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.800 K ~ 9.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Special features:
      pivot angle - 5° to + 15°
    BODY
    • Pan angle:
      630
      °
      with 360° continuous rotation
    • Tilt angle:
      265
      °
      with 360° continuous rotation
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net
    • DMX channels:
      23 / 25 / 49
      channel
    • Pixel control:
      pixel2pixel control
    • Wireless Control:
      optional, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      216
      W
    • Max power consumption (at 120V):
      216
      W
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      any position with quick-lock omega brackets

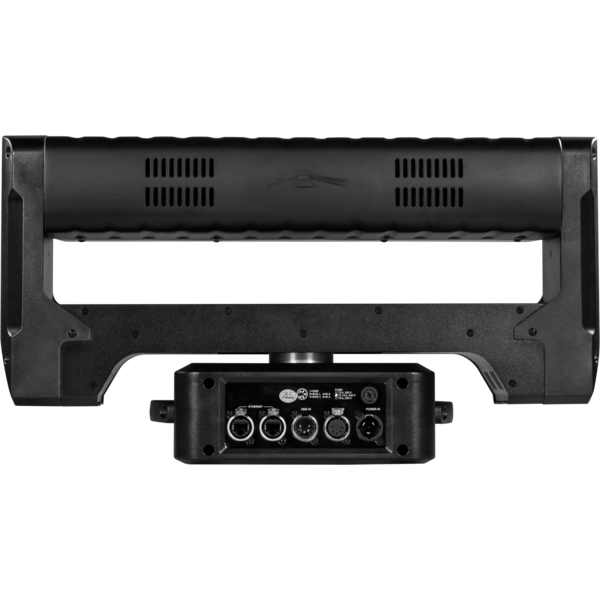

    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    • Power connection:
      Neutrik powerCON TRUE1 IN connector
    • Dimensions (WxHxD):
      550x320x200
      mm
    • Weight:
      12
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x AIR6PIX
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 2 x OS24
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    AIR6PIX (optional)
    {ProdottiDaAccessorio}
    UPBOX2P5UPBOX2P5
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
    AIR6PIX (optional)
    {ProdottiDaAccessorio}
    TOUR53415L03TOUR53415L03
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    AIR6PIX (optional)
    {ProdottiDaAccessorio}
    958225L03958225L03
    3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
    AIR6PIX (optional)
    {ProdottiDaAccessorio}
    9513FXWL039513FXWL03
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
    AIR6PIX (optional)
    {ProdottiDaAccessorio}
    9533FXWL039533FXWL03
    Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m
    AIR6PIX (optional)
    {ProdottiDaAccessorio}
    RSR0630BRSR0630B
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    AIR6PIX (optional)
    {ProdottiDaAccessorio}
    C6016BC6016B
    Quick-trigger slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
    AIR6PIX (include)
    {ProdottiDaAccessorio}
    OS24OS24
    Quick-lock omega bracket, M10 hole
    AIR6PIX (optional)
    {ProdottiDaAccessorio}
    FCLAIR6PIXFCLAIR6PIX
    Flight case for 4pcs of AIR6PIX
    AIR6PIX (optional)
    {ProdottiDaAccessorio}
    WSA40501WSA40501
    WDMX, antenna 2.4Ghz 2dBi omnidirectional, folding, SMA-male, indoor
    AIR6PIX (optional)
    {ProdottiDaAccessorio}
    UPBOX2P5UPBOX2P5
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    Air6pix_USER_MANUAL_ITEN.pdf 3MB

    DMX chart & personalities

    File name File size Download
    Air6pix_DMX_CHARTS.pdf 55KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VECTORWORKS_SYMBOLS.vwx 324KB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    AIR6PIX Firmware rev. 1.1.05
    manufacturer fixture library (Link) Link
    prolights_air6pix.d4Download
    manufacturer fixture library (Link) Link
    prolight_air6pix_elem.hedDownload
    manufacturer fixture library (Link) Link
    air6pix_23ch.fdfDownload
    air6pix_25ch.fdfDownload
    air6pix_49ch.fdfDownload
    manufacturer fixture library (Link) Link
    air6pix_ma2.zipDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    air6pix_martin.zipDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    air 6pix basic.fix2Download
    air 6pix extended.fix2Download
    air 6pix standard.fix2Download
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    prolights_air6pix_full_4,5°.ies 30KB
    Air6pix_PHOTOMETRICS.pdf 166KB
    Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    Air6pix_3D_REVIT.rvt 505KB
    Air6pix_3D_SKETCHUP.skp 309KB
    Air6pix_2D.dwg 1006KB
    Air6pix_3D.dwg 601KB
    Air6pix_2DSYMBOLS.dwg 69KB
    Air6pix_TECHNICAL_DRAWING.pdf 203KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX2P5
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.1.05 STABLE 05/11/2019 Improved color change on dimming effects Rev. 1
