AM860
Share me

Immagine Principale
  • AM860
  • AM860

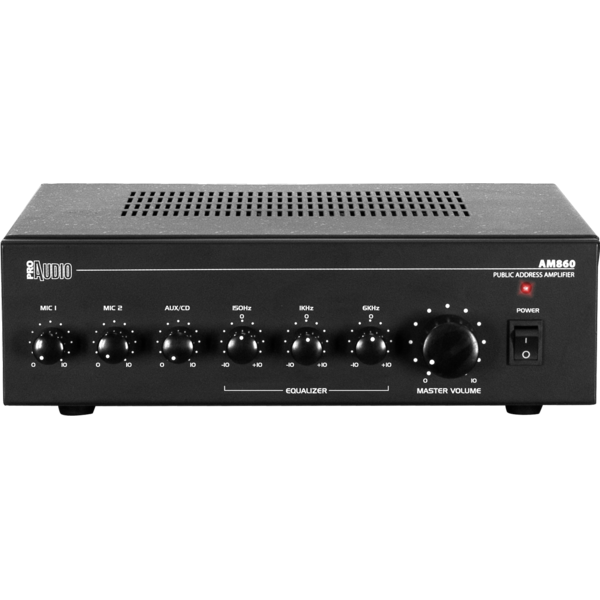

  • Mixer-amplifier designed for mixing and broadcasting voice announcements and music in PA systems

    Features:
    Low impedance outputs (4-16Ohm) and constant voltage outputs (70/100V)
    Inputs: 2 Mic, 1 Aux / CD with selector
    Priority function
    3 band EQ controls
    Independent level controls for input signals

    AMPLIFIED MIXER
    • Channels:
      1
    • Circuit class:
      analog
    OUTPUT
    • Power at constant voltage (70/100V):
      60
      W
    • Power at low impedance (4 Ohm):
      60
      W
    AUDIO SPECIFICATIONS
    • Frequency responce:
      100 - 20000
      Hz @ 8 Ohm
      (±0.5 dB)
    • THD+N:
      <0.5
      %
    • Input impedance:
      10
    • Signal/Noise rate:
      >90
      dB
    POWER SUPPLY STAGE
    • Type:
      Trasformer
    • Operating voltage/frequency:
      230V (+/- 5%) 50Hz
    PROTECTIONS
    • Output:
      Soft-start, short circuit, DC, overheat
    FUNCTIONS
    • Tone controls output:
      150Hz, 1kHz, 6kHz, (±10dB)
    • Input volume control:
      mic1, mic2, aux/cd
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR/Jack bal. pin RCA unbal
    • Output signal:
      screw terminal block
    • Power connection:
      VDE
    PHYSICAL
    • Dimensions (WxHxD):
      270x90x260
      mm
    • Rack unit:
      2
    • Weight:
      5
      kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
