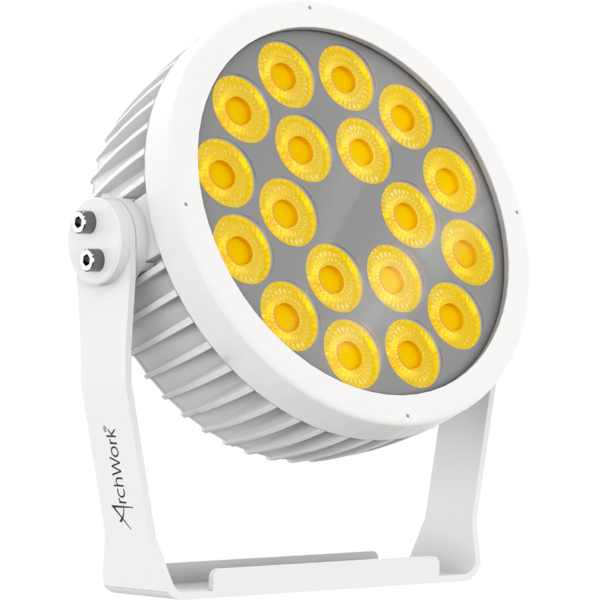

ARCPAR18
Share me

IP66

Immagine Principale
  • ARCPAR18
  • ARCPAR18
  • ARCPAR18
  • ARCPAR18
  • ARCPAR18
  • ARCPAR18
  • ARCPAR18
  • ARCPAR18
  • ARCPAR18
    Code Color Synthesis Avail.
    ARCPAR18FC Full Color
    ARCPAR18TU Tungsten
    ARCPAR18DY Daylight

    ArcPar 18FC is an exterior wash light with 18x8 W RGBW / FC LED's source engineered for outdoor installations where a high-performance projector with superior brightness and chromatic precision is required. The round shape design and the super-slim profile allows the ArcPar 18FC to be easily integrated into any architectural design whether it be indoor or outdoor (IP66) due to the construction of chassis in die-cast aluminium and tempered glass.

    Features:
    18x8 W RGBW / FC LEDs
    Slim profile and fanless
    IP66 for outdoor installations

    LIGHT SOURCE
    • Source:
      18x8
      W
      RGBW / FC LEDs
    • Luminous flux:
      3'831
      lm
      @full
    • Lux:
      (15°) 4'367
      lx
      @3 m full
    • Lux:
      (15°) 1'572
      lx
      @5 m full
    • Source life expectancy:
      50.000 hrs (L70 @25° C / 77° F)
    OPTICS
    • Beam angle:
      15
      °
    • Field angle:
      22
      °
    • Additional optics:
      25° - 45° (optional)
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      3.200 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9003
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      4 / 6 / 10
      channel
    • Display:
      touch - sensitive LED display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      Selectable dimming modes available
    • Strobe / shutter:
      1 ~ 30
      Hz, electronic
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      128
      W
    • Output (at 230 V):
      12
      units on a single power line
    PHYSICAL
    • Cooling:
      pressure and temperature balance through GORE membrane vents
    • Sospension and fixing:
      bracket for hanging and positioning
    • Adaptors:
      XLR and Schuko 16A adaptors included
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP signal IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      317x337x132
      mm
    • Weight:
      6,5
      kg
