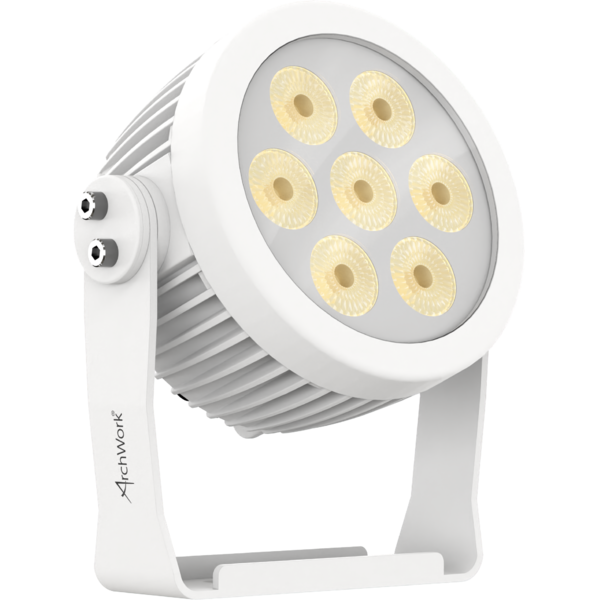

ArcPar 7
ORDER CODE: ARCPAR7
Share me

IP66

Immagine Principale
  • ARCPAR7
  • ARCPAR7
  • ARCPAR7
  • ARCPAR7
  • ARCPAR7
  • ARCPAR7
  • ARCPAR7
  • ARCPAR7
  • ArcPar 7
    Code Color Synthesis Avail.
    ARCPAR7FC Full Color
    ARCPAR7TU
    Tungsten
    ARCPAR7DY
    Daylight

    ArcPar 7 is a compact exterior wash light with 7x8W RGBW/FC LED's source engineered for outdoor installations where a small but bright accent luminaire with a superior chromatic precision is required. The round shape design and the super-slim profile allows the ArcPar 7 to be easily integrated into any architectural design whether it be indoor or outdoor (IP66) due to the construction of chassis in die-cast aluminium and tempered glass.

    Features:
    7x8W RGBW/FC LEDs
    Slim profile and fanless
    IP66 for outdoor installations

    LIGHT SOURCE
    • Source:
      7x8
      W
      RGBW / FC LEDs
    • Luminous flux:
      1'933
      lm
      @full
    • Lux:
      (15°) 2'450
      lx
      @3 m full
    • Lux:
      (15°) 882
      lx
      @5 m full
    • Source life expectancy:
      50.000 hrs (L70 @25° C / 77° F)
    OPTICS
    • Beam angle:
      15
      °
    • Field angle:
      27
      °
    • Additional optics:
      25° - 45° (optional)
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      3.200 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9003
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      4 / 6 / 10
      channel
    • Display:
      touch - sensitive LED display
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      55
      W
    • Output (at 230V):
      30
      units on a single power line
    • Power factor:
      0,98
    PHYSICAL
    • Cooling:
      pressure and temperature balance through GORE membrane vents
    • Suspension and fixing:
      bracket for hanging and positioning
    • Adaptors:
      XLR and Schuko 16A adaptors included
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP signal IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      240x263x133
      mm
    • Weight:
      4,9
      kg
    BOX CONTENT
    • 1 x ARCPAR7
    • 1 x SCHUKO - IP connection adapter
    • 1 x 5p XLR - IP connection male adapter
    • 1 x 5p XLR - IP connection female adapter
    • User Manual
    ITEMS REF.
