ARCPOD27Q
Share me

IP66

Immagine Principale
  • ARCPOD27Q
  • ARCPOD27Q
  • ARCPOD27Q
  • ARCPOD27Q
  • ArcPod 27Q is a compact high-power exterior wash light featuring an outstanding brightness of 11'500 lumens. It is equipped with 27x10 W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 27Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 27Q an incredibly flexible and versatile device for any outdoor install.

    Features:
    27x10 W RGBW / FC LEDs delivering 11'500 lumens
    LED emitters controllable in 3 linear sections
    Compact form factor and fanless

    LIGHT SOURCE
    • Source:
      27x10
      W
      RGBW / FC LEDs
    • Luminous flux:
      11'480
      lm
      @full
    • Lux:
      (15°) 11'276
      lx
      @3 m full
    • Lux:
      (15°) 4'060
      lx
      @5 m full
    • Source life expectancy:
      50.000 hrs (L70 @25° C / 77° F)
    OPTICS
    • Beam angle:
      15
      °
    • Field angle:
      28
      °
    • Additional optics:
      10° - 25° - 45° (optional)
    • Other:
      barn doors not included
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CTC:
      CTC control through dedicated DMX channel
    • Colour wheel:
      virtual colour wheel with presets
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • FX generator:
      up to 3 linear
      controllable sections
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Tilt angle:
      0 ~ 130
      °
      with manual regulation
    • Body:
      sturdy die-cast aluminium body conceived for long-time durability
    • Body colour:
      RAL 7012
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      5 / 7 / 10 / 13 / 17
      channel
    • Pixel control:
      up to 3 linear
      controllable sections
    • RDM:
      RDM ready for fixture remote monitor and settings
    • Display:
      user interface through DATAMASTER external coder (not included)
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronized operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • Flicker:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Power supply:
      100-240 V – 50/60 Hz
    • Power consumption (at 230 V):
      268
      W
    • Power consumption (at 120 V):
      275
      W
    • Output (at 230 V):
      9
      units on a single power line
    • Output (at 120 V):
      5
      units on a single power line
    • Power factor:
      0,994
    PHYSICAL
    • Cooling:
      passive cooling and fan-free
    • Adaptors:
      XLR and Schuko 16A adaptors included
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP signal IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      455x258x83
      mm
    • Weight:
      9
      kg
    Product Code
    Accessory Code
    Description
    ARCPOD27Q (optional)
    ARCPOD48Q (optional)
    SOLAR48Q (optional)
    SOLAR27Q (optional)

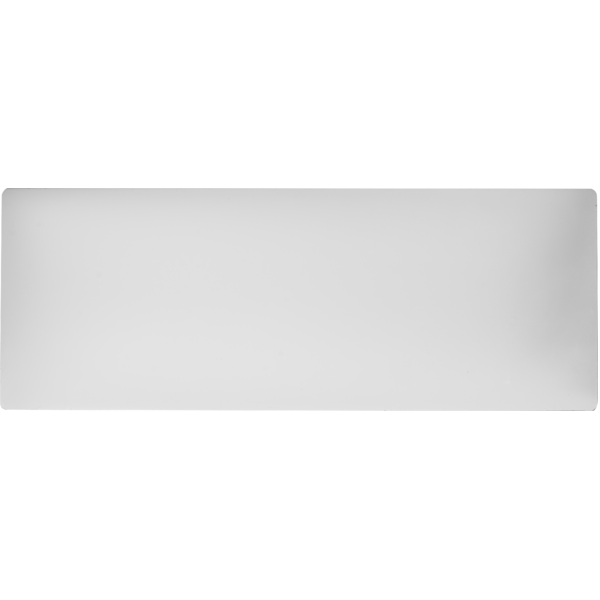

    10° lens for SOLAR27Q, ARCPOD27Q, SOLAR48Q, ARCPOD48Q, ARCPOD15Q and ARCPOD96Q
    ARCPOD27Q (include)
    ARCPOD48Q (include)
    SOLAR48Q (optional)
    SOLAR27Q (optional)
    15° lens for SOLAR27Q, ARCPOD27Q, SOLAR48Q, ARCPOD48Q, ARCPOD15Q and ARCPOD96Q
    ARCPOD27Q (optional)
    SOLAR27Q (include)
    SOLAR48Q (include)
    ARCPOD48Q (optional)
    25° lens for SOLAR27Q, ARCPOD27Q, SOLAR48Q, ARCPOD48Q, ARCPOD15Q and ARCPOD96Q
    ARCPOD27Q (optional)
    ARCPOD48Q (optional)
    SOLAR48Q (optional)
    SOLAR27Q (optional)
    45° lens for SOLAR27Q, ARCPOD27Q, SOLAR48Q, ARCPOD48Q, ARCPOD15Q and ARCPOD96Q
    ARCPOD27Q (optional)
    SOLAR27Q (optional)
    Black barn door 4 directional flaps to adjust the light beam, SOLAR27Q,ARCPOD27Q
    ARCPOD27Q (optional)
    ARCPOINT1 (optional)
    ARCPOD48Q (optional)
    RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
    ARCPOD27Q (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    IP67 power extension cable for ARCHWORK projectors, L.03 m
    ARCPOD27Q (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    IP67 power extension cable for ARCHWORK projectors, L.05 m
    ARCPOD27Q (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    IP67 DMX extension cable for ARCHWORK projectors, L.10 m
    ARCPOD27Q (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    IP67 power extension cable for ARCHWORK projectors, L.2 0m
    ARCPOD27Q (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    IP67 DMX extension cable for ARCHWORK projectors, L.03 m
    ARCPOD27Q (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    IP67 DMX extension cable for ARCHWORK projectors, L.05 m
    ARCPOD27Q (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    IP67 power extension cable for ARCHWORK projectors, L.10 m
    ARCPOD27Q (optional)
    MOSAICOXL (optional)
    MOSAICOJR (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    IP67 DMX extension cable for ARCHWORK projectors, L.20 m
    ARCPOD27Q (optional)
    SMARTBOOK (optional)
    DATAMASTER (optional)
    LUMIPAR7IP (optional)
    JETBEAM2 (optional)
    SUNRISE4 (optional)
    UVPANEL18 (optional)
    SUNBAR2000FC (optional)
    PIXBAR3E (optional)
    WDBOX (optional)
    UVSTRIP18 (optional)
    LUMIPAR7QTOUR (optional)
    LUMIPIX15IP (optional)
    SUNRISE2L (optional)
    SUNRISE2 (optional)
    6BEAMQ (optional)
    LUMIPAR12IP (optional)
    HALUSTRIP (optional)
    WIFIBOX (optional)
    POLAR3000 (optional)
    PIXROLL12TRI (optional)
    SUNBAR2500MAX (optional)
    ACCENT1Q (optional)
    PINSPOTD (optional)
    LUMI4COB (optional)
    ARTNETNODE (optional)
    Z8STRIP (optional)
    Z7SPOT (optional)
    PIXIEZOOM (optional)
    CHROMAPIX (optional)
    POLAR500 (optional)
    PIXIEWASH (optional)
    LUMIPIX6TRI (optional)
    POLAR1000 (optional)
    PIXPAN16 (optional)
    CHROMAROCK (optional)
    RA2000PROFILE (optional)
    PIXIEWASHXB (optional)
    PIXIEZOOMXB (optional)
    TRUSSPOD3BAT (optional)
    BATPAR180 (optional)
    HALUPIX (optional)
    HALUROCK (optional)
    TRUSSPOD3T (optional)
    JETSPOT4Z (optional)
    ECLIPSEFRESNELJ (optional)
    BATSTRIP160 (optional)
    SMARTDISK (optional)
    SMARTTORCH (optional)
    PIXIESPOT (optional)
    MINIVERSAPAR (optional)
    MINIECLFRFC (optional)
    ECLFR2K (optional)
    MINIECLFR (optional)
    ECLIPSEFRESNELTW (optional)
    JETBEAM1 (optional)
    JETSPOT1 (optional)
    ECLIPSEJR (optional)
    ECLFR2KTW (optional)
    ARCPOINT1 (optional)
    ECLJRG2 (optional)
    FLATPAR3H (optional)
    DISPLAYCOBFC (optional)
    MOBIBLAST (optional)
    LUMIPAR7HPRO (optional)
    LION (optional)
    FLATPAR3Q (optional)
    FLATPAR6H (optional)
    VERSAPAR (optional)
    DISPLAYCOBDY (optional)
    DISPLAYCOBWW (optional)
    LUMIPIX12UQPRO (optional)
    FLATCOB80 (optional)
    ARIA700SPOT (optional)
    FLATCOB40 (optional)
    ECLIPSEFRESNEL (optional)
    ARIA700PROFILE (optional)
    LUMIPAR18VWPRO (optional)
    LUMIPAR12UH (optional)
    LUMIPAR12UAW (optional)
    LUMIPAR7UTRI (optional)
    LUMIPIX12QTOUR (optional)
    LUMIPACK12UQ (optional)
    LUMIPAR6UQ (optional)
    LUMIPACK6UQ (optional)
    FLATCOB80UV (optional)
    LUMIPAR12UTRI (optional)
    LUMIPACK7UTRI (optional)
    LUMIPAR12HPRO (optional)
    STUDIOCOBPLUSUV (optional)
    SUNBLAST3000FC (optional)
    ARCPOD8 (optional)
    DISPLAYCOBTRWDWW (optional)
    ARCPOD36 (optional)
    LUMIPACK12UTRI (optional)
    ARCPAR18 (optional)
    ARCSHINE12 (optional)
    ARCSHINE6 (optional)
    LUMIPIX12TRIIP (optional)
    AQUA (optional)
    VISUALGOB (optional)
    ARCPOD21 (optional)
    DISPLAYCOBTRWDDY (optional)
    LUMI4UTRI (optional)
    SUNBLAST3500MAX (optional)
    SOLAR21 (optional)
    LUMIPIX12UQ (optional)
    QUADRO18UTRI (optional)
    LUMIPIX8H (optional)
    LUMIPIX12UT (optional)
    POLAR700 (optional)
    ARCPAR7 (optional)
    DISPLAYCOBTRWDFC (optional)
    LUMIPAR12UQ (optional)
    STUDIOCOBPDY2 (optional)
    LUMIPAR12UQPRO (optional)
    ECLIPSEJZIP (optional)
    STUDIOCOBPLUSTU (optional)
    LUMIPIX16H (optional)
    STUDIOCOBPLUSFC (optional)
    ARENACOB4FC (optional)
    ARENACOB4HALO (optional)
    STUDIOCOBPLUSDY (optional)
    STUDIOCOBPLUSTW (optional)
    STUDIOCOBFC (optional)
    STUDIOCOBWW (optional)
    ECLIPSEPARFC (optional)
    STUDIOCOBTU (optional)
    SOLAR (optional)
    TABLEDW (optional)
    SMARTBATTENQ (optional)
    STUDIOCOBCW (optional)
    STUDIOCOBUV (optional)
    STUDIOCOBDY (optional)
    ECLIPSEPAR (optional)
    LUMIPIX12QIP (optional)
    ECLIPSE (optional)
    RA3000PROFILE (optional)
    TABLEDC (optional)
    MOSAICOJR (optional)
    MOSAICOXL (optional)
    SOLAR48Q (optional)
    SMARTBATIP (optional)
    SMARTBAT (optional)
    SMARTBATHEX (optional)
    ECLPANELTWC (optional)
    ECLIPSEHD (optional)
    ECLIPSEHD2 (optional)
    ECLIPSEFC (optional)
    ECLIPSEHDTWC (optional)
    SOLAR27Q (optional)
    ARCPOD48Q (optional)
    MOSAICO (optional)
    Firmware uploader kit, USB IN, 3-pin XLR DMX OUT, USB OUT

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Arcpod27q_3D.rvtDownload
    Arcpod27q_3D.skpDownload
    Arcpod27q_CAD_2D.dwgDownload
    Arcpod27q_CAD_3D.dwgDownload
    Arcpod27q_CAD_2DSYMBOLS.dwgDownload
    Arcpod27q_TECHNICAL_DRAWING.pdfDownload

    Fixture Libraries / DMX Charts

    ARCPOD27Q Firmware rev. 3.2
    AVOLITES Titan
    manufacturer fixture libraryLink
    CHAMSYS
    prolights_arcpod27q_5ch.hedDownload
    prolights_arcpod27q_7ch.hedDownload
    prolights_arcpod27q_10ch.hedDownload
    prolights_arcpod27q_13ch.hedDownload
    ARCPOD27Q Firmware rev. 2.2
    AVOLITES Titan
    manufacturer fixture libraryLink
    CHAMSYS
    prolights_arcpod27q_5ch.hedDownload
    prolights_arcpod27q_7ch.hedDownload
    prolights_arcpod27q_10ch.hedDownload
    prolights_arcpod27q_13ch.hedDownload
    VECTOR WORKS
    LIBRARY
    VECTORWORKS_LIBRARY.vwxDownload
    SYMBOLS
    Arcpod27q_VECTORWORKS_SYMBOLS.vwxDownload

    Photometrics

    archwork_arcpod27q_blue_10°.iesDownload
    archwork_arcpod27q_blue_15°.iesDownload
    archwork_arcpod27q_blue_20°.iesDownload
    archwork_arcpod27q_blue_25°.iesDownload
    archwork_arcpod27q_blue_45°.iesDownload
    archwork_arcpod27q_blue_without filter.iesDownload
    archwork_arcpod27q_full_10°.iesDownload
    archwork_arcpod27q_full_15°.iesDownload
    archwork_arcpod27q_full_20°.iesDownload
    archwork_arcpod27q_full_25°.iesDownload
    archwork_arcpod27q_full_45°.iesDownload
    archwork_arcpod27q_full_without filter.iesDownload
    archwork_arcpod27q_green_10°.iesDownload
    archwork_arcpod27q_green_15°.iesDownload
    archwork_arcpod27q_green_20°.iesDownload
    archwork_arcpod27q_green_25°.iesDownload
    archwork_arcpod27q_green_45°.iesDownload
    archwork_arcpod27q_green_without filter.iesDownload
    archwork_arcpod27q_red_10°.iesDownload
    archwork_arcpod27q_red_15°.iesDownload
    archwork_arcpod27q_red_20°.iesDownload
    archwork_arcpod27q_red_25°.iesDownload
    archwork_arcpod27q_red_45°.iesDownload
    archwork_arcpod27q_red_without filter.iesDownload
    archwork_arcpod27q_white_10°.iesDownload
    archwork_arcpod27q_white_15°.iesDownload
    archwork_arcpod27q_white_20°.iesDownload
    archwork_arcpod27q_white_25°.iesDownload
    archwork_arcpod27q_white_45°.iesDownload
    archwork_arcpod27q_white_without filter.iesDownload
    Arcpod27q_PHOTOMETRICS_REPORT.pdfDownload

    Software Upgrades

    Tech Docs

    ManualDownload
    Arcpod27q_A4_DATASHEET.pdfDownload
