ARCPOD36
ORDER CODE: ARCPOD36
Share me

IP66

Immagine Principale
  • ARCPOD36
  • ARCPOD36
  • ARCPOD36
  • ARCPOD36
  • ARCPOD36
  • ARCPOD36
  • ARCPOD36
  • ARCPOD36
  • Code Color Synthesis Avail.
    ARCPOD36FC Full Color
    ARCPOD36TU
    Tungsten
    ARCPOD36DY
    Daylight

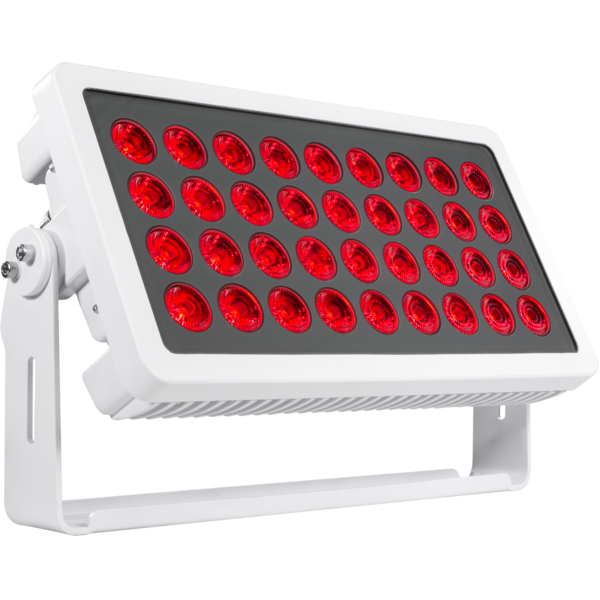

    ARCPOD36 is a wash light with a 36x8 W RGBW / FC LEDs source designed for outdoor installations where a high performing projector with reliable brightness and chromatic precision is required. The rectangular shape design and the super-slim profile allow the ARCPOD36 to be easily integrated into any architectonic context whilst also integrate with outdoor (IP66) projects and installations due to the construction of chassis in die-cast aluminium and tempered glass with no fans for ventilation. ARCPOD36 is a compact projector capable of lighting large spaces, both as a stage wash in outdoor events and for architectural lighting projects

    Features:
    4D (RGBW) colour mixing
    DMX virtual colour wheel
    CTC
    235 W power consumption and LED source expected life of over 50.000 hours
    User menu and settings are accessed through a 4 button touch-sensitive LED interface while 3 different DMX modes (4 - 10 channel) available

    LIGHT SOURCE
    • Source:
      36x8
      W
      RGBW / FC LEDs
    • Luminous flux:
      @full 7'769
      lm
    • Lux:
      15° @full 9'429
      lx
      @3 m
    • Lux:
      15° @full 3'395
      lx
      @5 m
    • Source life expectancy:
      50.000 hrs (L70 @25° C / 77° F)
    OPTICS
    • Beam angle:
      15
      °
    • Field angle:
      22
      °
    • Additional optics:
      25° / 45° (optional)
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      3.200 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9003
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      4 / 6 / 10
      channel
    • Display:
      touch - sensitive LED display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240 V 50/60 Hz
    • Max power consumption:
      235
      W
    • Output (at 230V):
      6
      units on a single power line
    PHYSICAL
    • Cooling:
      pressure and temperature balance through GORE membrane vents
    • Suspension and fixing:
      bracket for hanging and positioning
    • Adaptors:
      XLR and Schuko 16A adaptors included
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP signal IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      579x338x114
      mm
    • Weight:
      16,66
      kg
    BOX CONTENT
    • 1 x ARCPOD36
    • 1 x SCHUKO - IP connection adapter
    • 1 x 5p XLR - IP connection male adapter
    • 1 x 5p XLR - IP connection female adapter
    • User Manual
