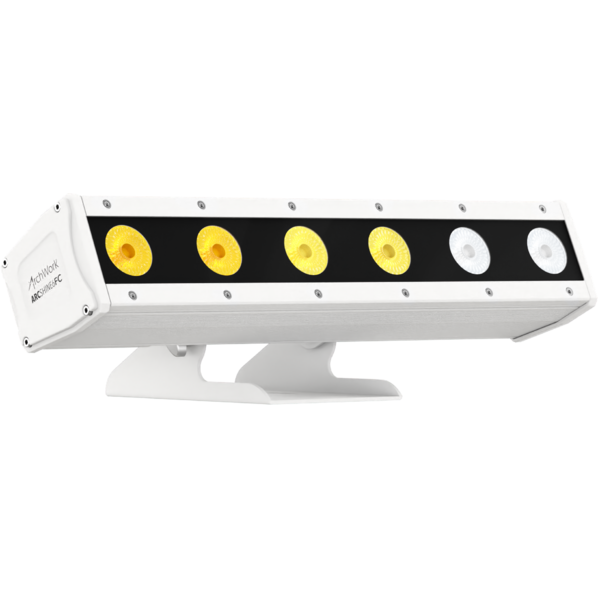

ArcShine 6
ORDER CODE: ARCSHINE6
Share me

IP66

Immagine Principale
  • ARCSHINE6
  • ARCSHINE6
  • ARCSHINE6
  • ARCSHINE6
  • ARCSHINE6
  • ARCSHINE6
  • ARCSHINE6
  • ARCSHINE6
  • ARCSHINE6
  • ArcShine 6
    Code Color Synthesis Avail.
    ARCSHINE6FC Full Color
    ARCSHINE6TU
    Tungsten
    ARCSHINE6DY
    Daylight

    ArcShine 6 is a linear wall washer of 50 cm with 6x8W RGBW/FC LEDs source designed for outdoor installations where a high-performance linear projector with superb brightness and chromatic precision is required. The linear shape design and the slim profile allows the ArcShine 6 to be easily integrated into any architectural design both indoor and outdoor (IP66) due to the construction of chassis in die-cast aluminium and tempered glass. This linear luminaire also features individual pixel control of each emitters for extended dynamic and creative possibilities.

    Features:
    6x8W RGBW/FC LEDs with pixel control
    Slim profile and fanless
    IP66 for outdoor installs

    LIGHT SOURCE
    • Source:
      6x8
      W
      RGBW / FC LEDs
    • Luminous flux:
      1'621
      lm
      @full
    • Lux:
      (16°) 704 lx - (21°) 387 lx - (42°) 95
      lx
      @5 m full
    • Source life expectancy:
      50.000 hrs (L70 @25° C / 77° F)
    OPTICS
    • Beam angle:
      16,4
      °
    • Field angle:
      28,3
      °
    • Additional optics:
      25° - 45° (optional)
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • White presets:
      3.200 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9003
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      4 / 6 / 10 / 24 / 29
      channel
    • Pixel control:
      pixel2pixel control
    • Display:
      touch - sensitive LED display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      52,5
      W
    • Output (at 230V):
      32
      units on a single power line
    • Power factor:
      > 0.93
    PHYSICAL
    • Cooling:
      pressure and temperature balance through GORE membrane vents
    • Suspension and fixing:
      bracket for hanging and positioning
    • Adaptors:
      XLR and Schuko 16A adaptors included
    • Signal connection:
      moulded IP signal IN/OUT connectors
    • Power connection:
      moulded IP signal IN/OUT connectors
    • IP rating:
      66
      for outdoor installations
    • Dimensions (WxHxD):
      495x200x188
      mm
    • Weight:
      5,33
      kg
    BOX CONTENT
    • 1 x ARCSHINE6
    • 1 x SCHUKO - IP connection adapter
    • 1 x 5p XLR - IP connection male adapter
    • 1 x 5p XLR - IP connection female adapter
    • User Manual
    ITEMS REF.
