Aria 700Profile end of life
ORDER CODE: ARIA700PROFILE
Share me

Immagine Principale
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE
  • ARIA700PROFILE

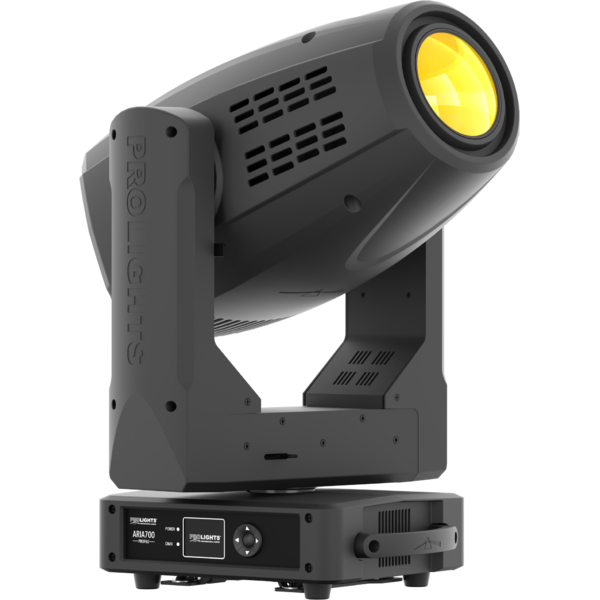

    • Aria 700Profile is a 400W theatrical LED light designed to bring refinement and silence to the stage. Featuring a custom RGBW engine which delivers an extensive colour palette and an optical system designed to allow the layering of effects. The Aria 700Profile puts the theatre into LED.

    Features:
    Full spectrum RGBW LED engine for extensive pastel colour palette and HD dimming
    A near-silent operation for use even in front of house
    Animation wheel and full-framing shutters with individual depth and angle control of each blade as well as module index

    LIGHT SOURCE
    • Source:
      400
      W
      custom RGBW LED
    • CCT:
      Tunable 2.000 K ~ 10.000
    • Luminous flux:
      (10,8°) 5'363 lm - (45,7°) 5'468
      lm
      @full
    • Lux:
      (10,8°) 8'460 lx - (45,7°) 688
      lx
      @5 m full
    • Source life expectancy:
      50.000 h
    OPTICS
    • Zoom:
      10,8° - 45,7
      °
      motorised linear zoom
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      motorised with auto-focus
    • Other:
      high-quality flat-field projection
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2000 K ~ 8000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Shutter system:
      4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 26,7 mm - image: 22 mm - thickness: 0,3 mm
    • FX generator:
      shutter macros with adjustable speed
    • Circular prism:
      3
      f
      with bi-directional rotation, indexing
    • Frost:
      linear 0 - 100% frost filter
    • Iris:
      5 - 100
      %
      motorised iris
    BODY
    • Pan angle:
      540
      °
    • Tilt angle:
      250
      °
    • Pan/Tilt resolution:
      bit
      16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net, W-DMX
    • DMX channels:
      33 / 38 / 39
      channel
    • Wireless Control:
      included, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display with autoflip
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      390
      W
    • Output (at 230V):
      8
      units on a single power line
    • Power factor:
      > 0,94
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Pan / tilt lock:
      for transportation and maintenance
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Dimensions (WxHxD):
      408x676x257
      mm
    • Weight:
      26
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x ARIA700PROFILE
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 2 x OS25
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ARIA700PROFILE (optional)
    {ProdottiDaAccessorio}
    9533FXWL039533FXWL03
    Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
    ARIA700PROFILE (optional)
    {ProdottiDaAccessorio}
    TOUR53415L03TOUR53415L03
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    ARIA700PROFILE (optional)
    {ProdottiDaAccessorio}
    958225L03958225L03
    3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
    ARIA700PROFILE (optional)
    {ProdottiDaAccessorio}
    9513FXWL039513FXWL03
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
    ARIA700PROFILE (optional)
    {ProdottiDaAccessorio}
    LRLUNALRLUNA
    Single Universe DMX transceiver with Bluetooth
    ARIA700PROFILE (optional)
    {ProdottiDaAccessorio}
    RSR1235BRSR1235B
    Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
    ARIA700PROFILE (optional)
    {ProdottiDaAccessorio}
    C6016BC6016B
    Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
    ARIA700PROFILE (optional)
    {ProdottiDaAccessorio}
    FCLARIA700FCLARIA700
    Flight case for 2x ARIA700, foam shells included
    ARIA700PROFILE (optional)
    {ProdottiDaAccessorio}
    FSHARIA700FSHARIA700
    1U Foam shell compatible with ARIA700
    ARIA700PROFILE (include)
    {ProdottiDaAccessorio}
    OS25OS25
    Quick-Lock omega bracket, M10 hole
    ARIA700PROFILE (optional)
    {ProdottiDaAccessorio}
    OS25D13OS25D13
    Quick-Lock omega bracket, M12 hole
    ARIA700PROFILE (optional)
    {ProdottiDaAccessorio}
    UPBOX1UP5UPBOX1UP5
    Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

    Data sheet & specs

    File name File size Download
    Letter datasheet Aria700profile_A4_DATASHEET_(EN).pdf 528KB
    Letter datasheet Aria700profile_A4_DATASHEET_(IT).pdf 511KB
    Letter datasheet Aria700profile_LETTER_DATASHEET_(EN).pdf 530KB

    User manual

    File name File size Download
    User manual Aria700profile_USER_MANUAL_ITEN.pdf 2MB
    User manual Aria700profile_Wireless_Protocol_Compatibilit_EN.pdf 4MB

    DMX chart & personalities

    File name File size Download
    DMX chart Aria700profile_DMX_CHARTS.pdf 58KB
    VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VectorWorks VECTORWORKS_SYMBOLS.vwx 413KB
    VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
    ARIA700PROFILE Firmware rev. 1.4
    manufacturer fixture library (Link) Link
    prolights_aria700profile.d4Download
    manufacturer fixture library (Link) Link
    prolights_aria700profile_33ch.hedDownload
    prolights_aria700profile_38ch.hedDownload
    manufacturer fixture library (Link) Link
    aria700_prof_ext38chch_f2_0.fdfDownload
    aria700_prof_std33ch_f2_0.fdfDownload
    manufacturer fixture library (Link) Link
    prolights@aria700_prof_33ch_sv1.1@std.xmlDownload
    prolights@aria700_prof_38ch_fv1.1@ext.xmlDownload
    manufacturer fixture library (Link) Link
    aria700ext.hog4showDownload
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    aria 700 profile extended.fix2Download
    aria 700 profile standard.fix2Download
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    VectorWorks prolights_aria700profile_ ies files.zip 10KB
    LDT prolights_aria700profile_ldt files.zip 9KB
    PDF Photometrics Aria700profile_PHOTOMETRICS_REPORT.pdf 3MB
    Dialux Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    3D RFA Aria700profile_3D_REVIT.rfa 844KB
    3D SKP Aria700profile_3D_SKETCHUP.skp 3MB
    2D Aria700profile_2D.dwg 13MB
    3D Aria700profile_3D.dwg 1MB
    2D cad symbols Aria700profile_2DSYMBOLS.dwg 313KB
    Technical drawing Aria700profile_TECHNICAL_DRAWING.pdf 567KB

    Tech docs

    File name File size Download
    Gobos Document Aria700profile_GOBOS.pdf 492KB

    Software

    File name File size Download
    Software Professional Uploader 0KB

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX1UP5 {CodiceUpBox}
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.4 STABLE 01/04/2019 NEW MODULE PROFILE Improved Firmware Functionality for better Focus and Zoom operation. Rev. 2
    1.4 STABLE 31/03/2019 OLD MODULE PROFILE Improved Firmware Functionality for better Focus and Zoom operation.
