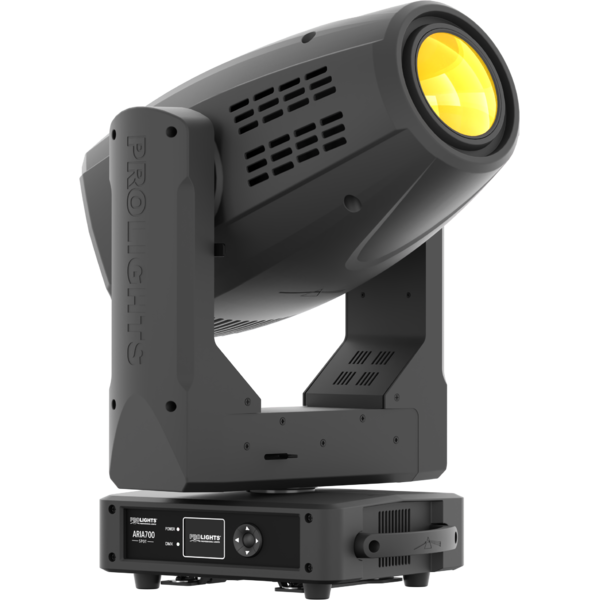

  • ARIA700 is a 400 W theatrical LED luminaire designed to bring refinement and silence to the stage. Featuring a custom RGBW engine delivering an extensive colour palette and an optical system designed to allow the layering of effects. The ARIA700 puts the theatre into LED.

    Features:
    Full spectrum RGBW LED engine for extensive pastel colour palette and HD dimming
    A near-silent operation for use even in front of house
    Animation core module with index, depth and rotation

    LIGHT SOURCE
    • Source:
      400
      W
      custom RGBW LED
    • CCT:
      Tunable 2.000 K ~ 10.000
      K
    • Luminous flux:
      6'153
      lm
    • Lux:
      (10°) 22'361 lx - (45°) 2'166
      lx
      @3 m full
    • Lux:
      (10°) 7'880 lx - (45°) 780
      lx
      @5 m full
    • Source life expectancy:
      50.000 h
    OPTICS
    • Zoom:
      10° - 45
      °
      motorised linear zoom
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      motorised with auto-focus
    • Other:
      high-quality flat-field projection
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CTC:
      CTC control through dedicated DMX channel
    • White presets:
      2.000 K ~ 8.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 26,7 mm - image: 22 mm - thickness: 0,3 mm
    • Fixed gobos:
      8
      fixed gobos + open
    • Gobo size:
      outer: 29,5 mm - image: 22 mm - thickness: 0,3 mm
    • Circular prism:
      3
      f
      with bi-directional rotation, indexing
    • Frost:
      linear 0 - 100% frost filter
    • Iris:
      5 - 100
      %
      motorised iris
    BODY
    • Pan angle:
      540
      °
    • Tilt angle:
      270
      °
    • Pan/Tilt resolution:
      bit
      16 bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with hi-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net, W-DMX
    • DMX channels:
      23 / 28 / 29
      channel
    • W-DMX:
      included, wireless solution receiver
    • RDM:
      RDM ready for remote monitoring and settings
    • Display:
      LCD high resolution colour display with autoflip
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      Selectable dimming modes available
    • Strobe / shutter:
      1 - 28
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240 V – 50/60 Hz
    • Max power consumption:
      435
      W
    • Max power consumption (at 120 V):
      436
      W
    • Output (at 230 V):
      4
      units on a single power line
    • Output (at 120 V):
      2
      units on a single power line
    PHYSICAL
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Sospension and fixing:
      any position with quick-lock omega brackets
    • Pan / tilt lock:
      pan / tilt locking for transportation and maintenance
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      408x676x257
      mm
    • Weight:
      22,7
      kg
