Astra Hybrid330IP new
ORDER CODE: ASTRAHYB330IP
Share me

IP65

Immagine Principale
  • ASTRAHYB330IP
  • ASTRAHYB330IP
  • ASTRAHYB330IP
  • ASTRAHYB330IP
  • ASTRAHYB330IP
  • The Astra Hybrid330IP is a versatile, compact moving light, suitable for both indoor and outdoor settings, thanks to its IP65 rating.

    Equipped with a 330W LED, this lightweight unit weighs only 25 kg. It offers a comprehensive range of features and visual effects, making it ideal for stages of various sizes. Its advanced optical system, featuring a 140 mm front lens, provides a zoom range from 3° to 50°, enabling both intense beam and spotlight functionalities.

    Key features of the Astra Hybrid330IP include linear CMY color mixing, three color wheels, an animation wheel, dual overlapping prisms, a frost effect, and two gobo wheels.

    Features:
    IP65 hybrid moving light with 330W LED source
    Linear zoom ranging from 3° to 50°
    25 kg

    LIGHT SOURCE
    • Source:
      330
      W
      high-power white LED
    • CCT:
      7.000
    • Luminous flux:
      (3°) 8'493 lm - (50°) 15'272
    • Lux:
      (3°) 114'701 lx - (50°) 1'882
      lx
      @5 m full
    • Source life expectancy:
      > 30.000 h
    OPTICS
    • Zoom:
      3° - 50
      °
      motorised linear zoom
    • Lens diameter:
      140
      mm
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      motorised
    COLOUR SYSTEM
    • Colour mixing:
      CMY colour system on 3 gradually fading colour wheels
    • CCT:
      on wheel 2.400 K and 3.200 K
    • Colour wheel:
      9
      dichroic filters on 3 independent colour wheels
    • Colour wheel:
      High CRI colour filters
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • Rotating gobos:
      8
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 20 mm - image: 16 mm - thickness: up to 3 mm
    • Fixed gobos:
      11
      fixed gobos + open
    • FX generator:
      2
      prisms overlap for spectacular aerial effects
    • Circular prism:
      8
      f
      with bi-directional rotation, indexing
    • Linear prism:
      6
      f
      with bi-directional rotation, indexing
    • Frost:
      linear 0 - 100% frost filter
    BODY
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    • Pan angle:
      540
      °
    • Tilt angle:
      270
      °
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      weatherproof IP65 construction with die-cast magnesium alloy
    • Body colour:
      RAL 9004
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net, sACN, W-DMX
    • DMX channels:
      29
      channel
    • Wireless Control:
      included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display with autoflip
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included or via USB pen drive
    • Other:
      Ethernet pass through in case of PSU or Master PCB failure
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% mechanical dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -20° C / +45° C (-4° F / +113° F)
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 50.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz (max absolutes range: 90-264V - 50/60Hz)
    • Max power consumption:
      517
      W
    • Standby power:
      85W
    • Output (at 230V):
      4
      units on a single power line
    • Power factor:
      > 0,98
    • Inrush current:
      30A @115VAC /<50A @230VAC
    PHYSICAL
    • IP rating:
      65
      (*)
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Pan / tilt lock:
      for transportation and maintenance
    • Signal connection:
      IP65
      Seetronic XLR 5p IN/OUT connectors
    • Data connection:
      IP65 Art-Net
      RJ45 IN/OUT
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Dimensions (WxHxD):
      393x684x266
      mm
    • Weight:
      25
      kg
    (*)
    • NOTE:
      Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, RCM, FCC, cTUVus
    BOX CONTENT
    • 1 x ASTRAHYB330IP
    • 2 x OSIPPLUS
    • 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
    • User manual
    Accessory Code
    Description
    optional

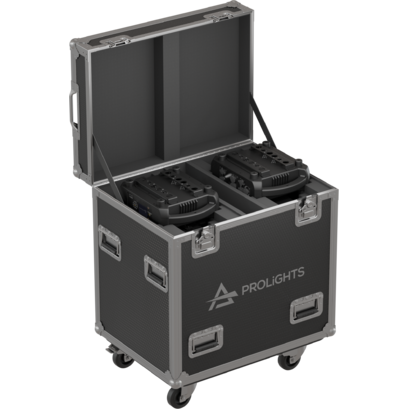

    Flight case for 2 pcs of ASTRAHYB330IP with top side loading
    optional

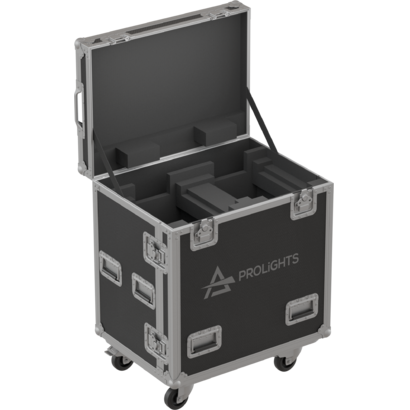

    Flight case for 2 pcs of ASTRAHYB330IP
    optional

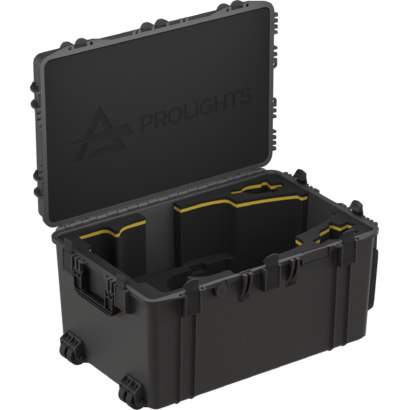

    Empty ABS case for 1 pc of ASTRAHYB330IP
    include

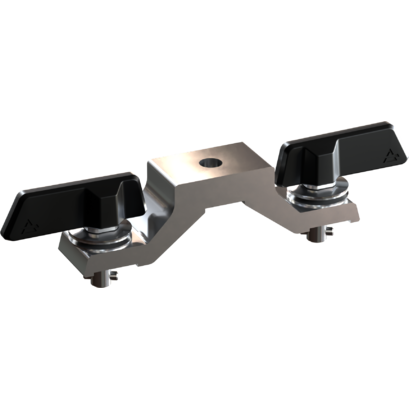

    IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
    optional

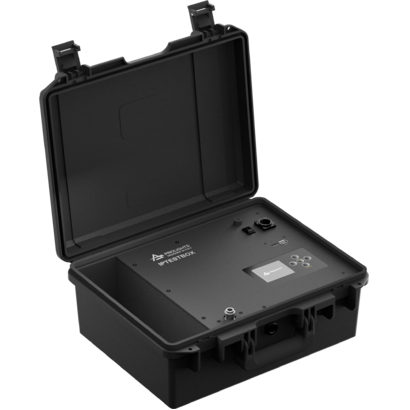

    Portable vacuum and pressure tester for ProLights IP fixtures
    optional
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
    optional
    Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
    optional
    3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
    optional

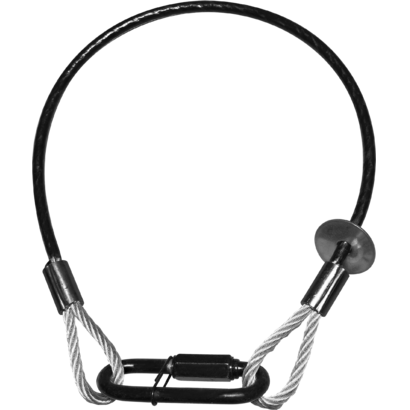

    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    optional
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
    optional
    Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
    optional
    Single Universe DMX transceiver with Bluetooth
    optional
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

    Data sheet & specs

    User manual

    DMX chart & personalities

    File name File size Download
    DMX chart Astrahyb330ip_DMX_CHARTS.pdf 857KB
    ASTRAHYB330IP Firmware rev. 1.1.07
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link

    Tech docs

    Software

    File name File size Download

    Firmware


    Firmware update instructions

    1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

    2 Download the updater software UpBox_Tool

    3 Follow the instructions in the following guide
    -------------------------------------------------------------------------------
    Notes:
    • Firmware updates require the UPBOXPRO compatible with all Prolights products
    • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
    • UpBox_Tool  software is compatible with all UPBOX interfaces
    • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
    Update Tool: UPBOXPRO UPBOXPRO
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.1.07 STABLE 16/08/2024 Improvement:
    • Improved Wireless Stability. To change TX protocol, use the following procedure:
      • Perform "TX Unlink" on ASTRAHYB330IP
      • Perform an "RX Unlink" on the device you want to connect as a receiver
      • Set the TX protocol you want to use (G3,G4S,CRMX) on ASTRAHYB330IP
      • Power Cycle ASTRAHYB330 and restart it.
      • Perform a "TX Link" on ASTRAHYB330IP to link to the receiver.
    Fixed Bugs:
    • Flip Display "Auto" does not work properly if you turn on the device when it is upside down.
