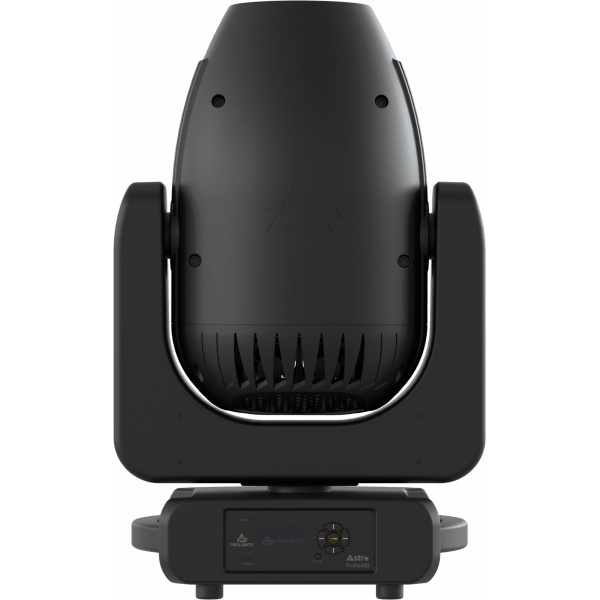

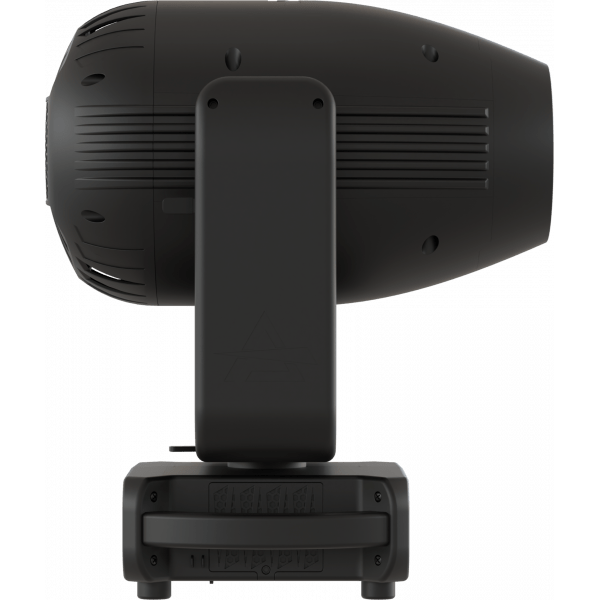

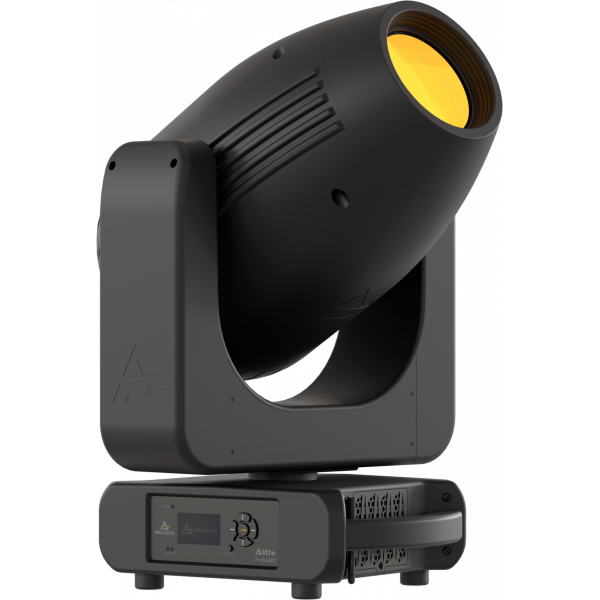

    • The Astra Profile400 is a multi-purpose indoor LED profile moving light, with an ultra-high lumen efficiency, a punchy output, and stunning effects.

    Its feature set includes framing shutters and an animation wheel, but it still has a small form factor and light weight, making the Astra Profile400 the perfect replacement for fixtures with a higher power consumption. Its light source delivers a pure white light emission at 7,000K, reaching 17.500 lumens whilst achieving a flat field beam projection.

    The Astra Profile400's optical system moves linearly from 6,5° to 50°, and it's equipped with a brand-new 400W LED source. The extensive feature set of the Astra Profile400 includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filters, prism and iris.

    Features:
    Indoor LED Moving Profile equipped with a 400W LED source (7,000K)
    6,5° to 50° linear zoom
    4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, frost filter, prism and iris

    LIGHT SOURCE
    • Source:
      400
      W
      White LED
    • CCT:
      7.000K
    • Luminous flux:
      (6,5°) 9'143 - (50°) 17'598
      lm
    • Lux:
      (6,5°) 37'468 lx (50°) 1'690
      lx
      @5 m
    • CRI:
      > 70 (CCT 5.600K and CRI > 90 with filter on color wheel)
    • Source life expectancy:
      > 30.000 h
    OPTICS
    • Zoom:
      6,5° - 50
      °
      motorised linear zoom
    • Lens diameter:
      120
      mm
    • Lens type:
      HD anti-reflection lenses with achromatic coating
    • Focus:
      motorised
    COLOUR SYSTEM
    • Colour mixing:
      linear CMY
    • CCT:
      linear CTO correction 2.700 K ~ 7.000 K
    • Colour wheel:
      open + 5,600K high CRI filter + 7
      colour filters
    DYNAMIC EFFECTS
    • Shutter system:
      4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 25,7 mm - image: 20 mm - thickness: 1,1 mm
    • Circular prism:
      4
      f
      with bi-directional rotation, indexing
    • Frost:
      linear 0 - 100% frost filter
    • Iris:
      5 - 100
      %
      motorised iris
    BODY
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    • Pan angle:
      540
      °
    • Tilt angle:
      270
      °
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, ArtNet, sACN, W-DMX + CRMX
    • DMX channels:
      29 / 39 / 54
      channel
    • Wireless Control:
      included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Other:
      16bit control of dimmer and colour
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 50.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      620
      W
    • Output (at 230V):
      4
      units on a single power line
    • Power factor:
      > 0,96
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Pan / tilt lock:
      for transportation and maintenance

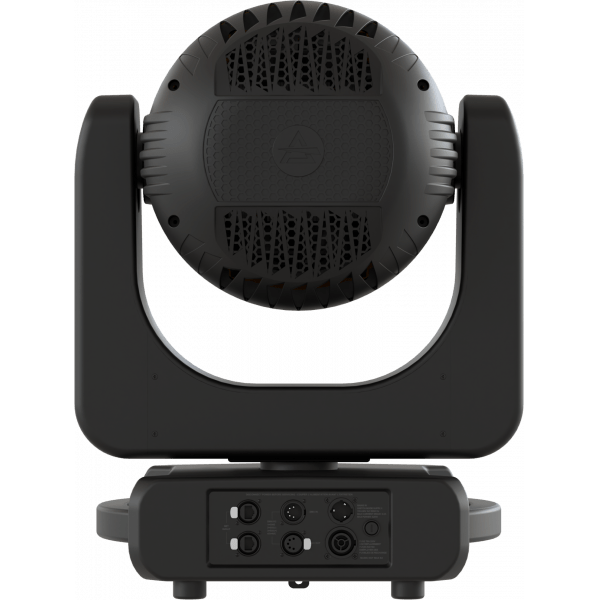

    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Dimensions (WxHxD):
      410x639x278
      mm
    • Weight:
      27,6
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x ASTRAPROFILE400
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 2 x OS24
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ASTRAPROFILE400 (optional)
    {ProdottiDaAccessorio}
    FCLASTRAP400FCLASTRAP400

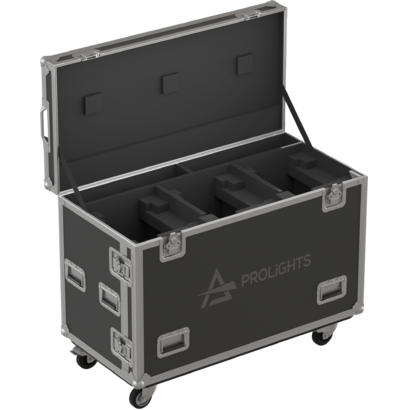

    Flight case for 3 pcs of ASTRAPROFILE400 / ASTRAHYB330
    ASTRAPROFILE400 (include)
    {ProdottiDaAccessorio}
    OS24OS24
    Quick-lock omega bracket, M10 hole
    ASTRAPROFILE400 (optional)
    {ProdottiDaAccessorio}
    OS24D13OS24D13
    Quick-lock omega bracket, M12 hole
    ASTRAPROFILE400 (optional)
    {ProdottiDaAccessorio}
    C6002BC6002B
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    ASTRAPROFILE400 (optional)
    {ProdottiDaAccessorio}
    RSR1235BRSR1235B

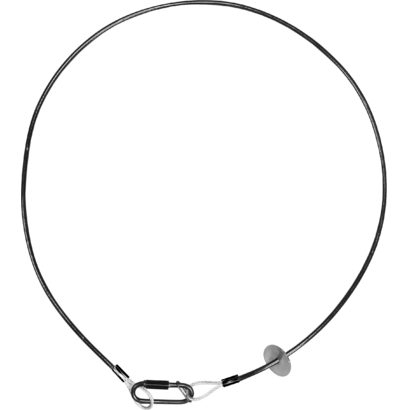

    Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
    ASTRAPROFILE400 (optional)
    {ProdottiDaAccessorio}
    9533FXWL039533FXWL03
    Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
    ASTRAPROFILE400 (optional)
    {ProdottiDaAccessorio}
    9513FXWL039513FXWL03
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
    ASTRAPROFILE400 (optional)
    {ProdottiDaAccessorio}
    958225L03958225L03
    3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
    ASTRAPROFILE400 (optional)
    {ProdottiDaAccessorio}
    TOUR53415L03TOUR53415L03
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    ASTRAPROFILE400 (optional)
    {ProdottiDaAccessorio}
    LRLUNALRLUNA

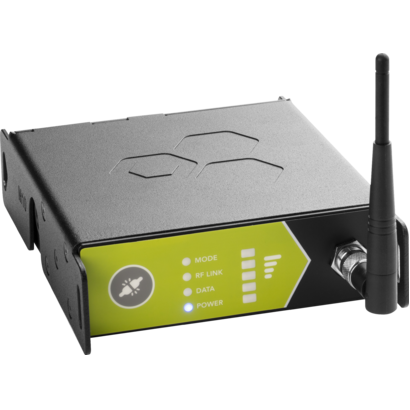

    Single Universe DMX transceiver with Bluetooth
    ASTRAPROFILE400 (optional)
    {ProdottiDaAccessorio}
    UPBOX2P5UPBOX2P5
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

    Data sheet & specs

    File name File size Download
    Letter datasheet Astraprofile400_A4_DATASHEET_(EN).pdf 615KB
    Letter datasheet Astraprofile400_LETTER_DATASHEET_(EN).pdf 546KB
    Tender Specification Astraprofile400_TENDER_SPECIFICATION.pdf 4MB

    User manual

    File name File size Download
    General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
    User manual Astraprofile400_USER_MANUAL_EN.pdf 7MB

    DMX chart & personalities

    File name File size Download
    DMX chart Astraprofile400_DMX_CHARTS.pdf 589KB
    VectorWorks VECTORWORKS_SYMBOLS.vwx 330KB
    VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
    ASTRAPROFILE400 Firmware rev. 1.0.13
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    IES prolights_astraprofile400_ldt_ies files.zip 13KB
    PDF Photometrics Astraprofile400_PHOTOMETRICS_REPORT.pdf 2MB
    Dialux Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    3D SKP Astraprofile400_3D_SKETCHUP.skp 415KB
    3D Astraprofile400_3D.dwg 523KB
    2D Astraprofile400_2D.dwg 5MB
    2D cad symbols Astraprofile400_2DSYMBOLS.dwg 70KB

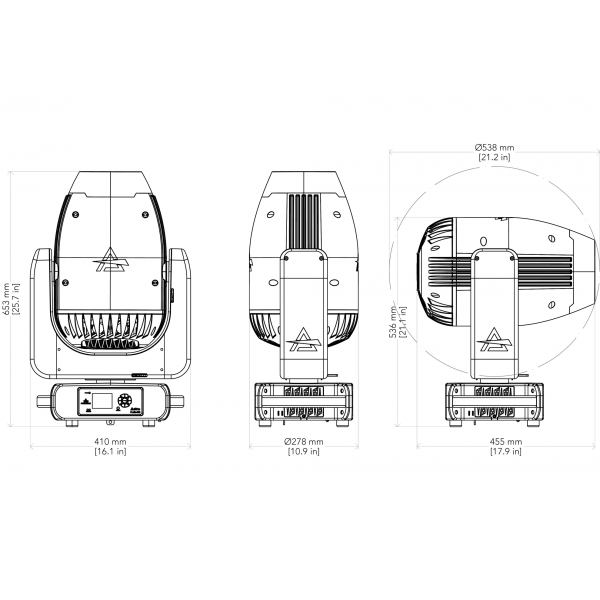

    Technical drawing Astraprofile400_TECHNICAL_DRAWING.pdf 855KB

    Tech docs

    File name File size Download
    Color Document Astraprofile400_COLOR.pdf 186KB
    Gobos Document Astraprofile400_GOBOS.pdf 352KB
    Noise Report Astraprofile400_NOISE_REPORT.pdf 724KB

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX2P5 {CodiceUpBox}
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.0.13 STABLE 04/03/2023 New functions:
    • Added "Super Silent" fan mode.
    • Channel Control DMX Value added "Fan Mode Super Silent @ 162-163"
    Improvements:
    • Improved CMY insertion.
    • Improved power management during CMY insertion.
    • Improved Fan managament.
    Note:
    • 2U1 firmware is still 1.0.12.
    • Factory reload must be done after upgrade to V1.0.13 : "LED TEMPERATURE ERROR" will occur.
