Astra Wash37Pix
ORDER CODE: ASTRAWASH37PIX
Share me

Immagine Principale
  • ASTRAWASH37PIX
  • ASTRAWASH37PIX
  • ASTRAWASH37PIX
  • ASTRAWASH37PIX
  • ASTRAWASH37PIX
  • ASTRAWASH37PIX

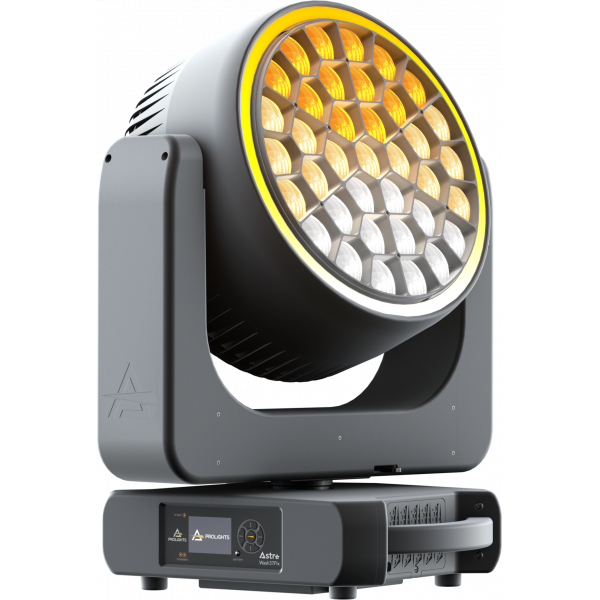

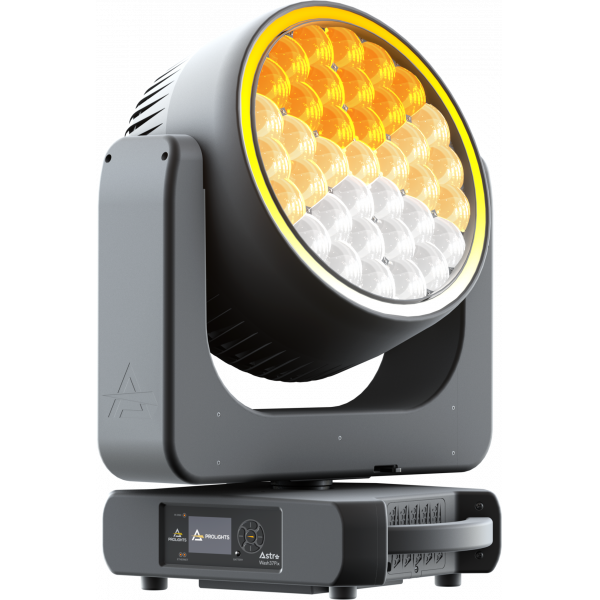

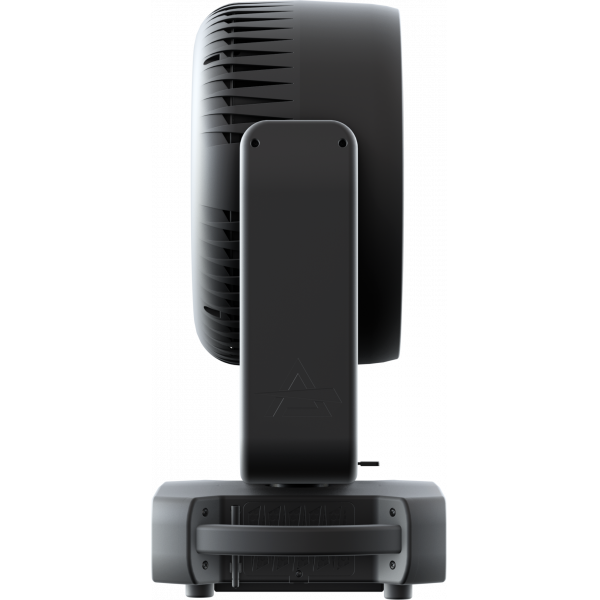

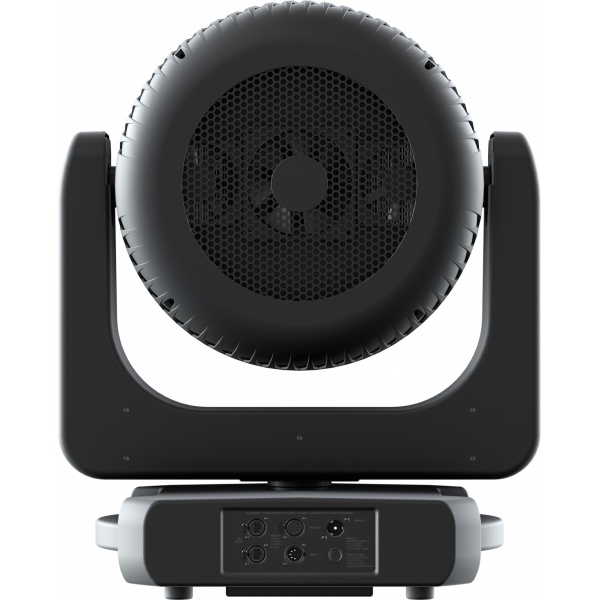

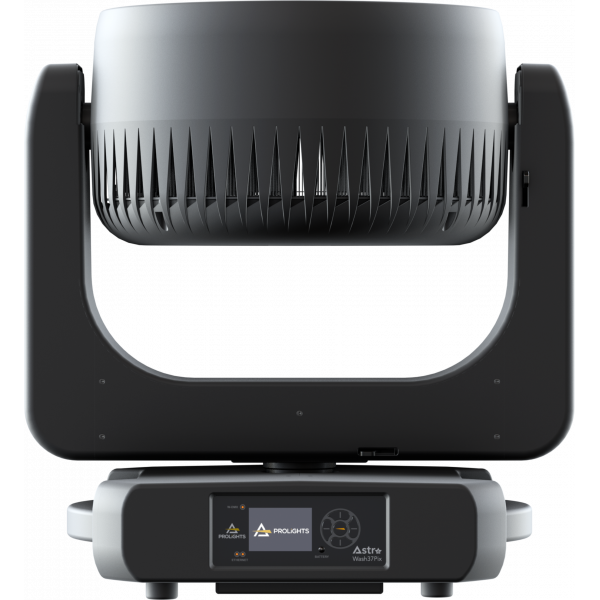

  • The Astra Wash37PIX is a powerful LED moving wash light, designed for large stages, arena tours and venues.

    The 37x40W Osram RGBW LED light source, plus the exterior pixel ring, make this fixture the most powerful LED wash in its class. The unit features an extremely high-efficiency optical system capable of zooming from 4° to 54°, creating beautiful convergence in-air effects and smooth wash spreads.

    The Astra Wash37PIX is single pixel controllable, with multiple on-board effects, and allows access to a precise and advanced white and colour control, all through DMX, CRMX+W-DMX, Art-Net, sACN, Kling-Net and RDM.

    Features:
    Silent operation, smooth and fast movements
    Zoom from 4° to 54° with high optical efficiency
    Pixel and ring control, precise white CCT, multiple FX and colour features

    LIGHT SOURCE
    • Source:
      37x40
      W
      RGBW Osram Ostar LEDs
    • Luminous flux:
      (4°) 8'452 lm - (54°) 17'898
      lm
      @full
    • Lux:
      (4°) 73'522 lx - (54°) 2'140
      lx
      @5 m full
    • Other:
      outer RGB pixel ring with frost film
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      4° - 54
      °
      motorised linear zoom
    • Lens type:
      honeycomb gapless plano-convex optics
    • Additional optics:
      diffuser on outer pixel ring
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer, colours
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Special features:
      outer RGB, pixel ring with several built in FX macros and
      linear crossfade channel from any white to any colour; virtual CTO on colours
    BODY
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    • Pan angle:
      540
      °
    • Tilt angle:
      233
      °
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      RAL 9004
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
    • DMX channels:
      main personality 23 / 30 / 44 / 52
      channel
    • Pixel control:
      OFF, ring and pixel2pixel
    • Wireless Control:
      included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display with autoflip
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +40°
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 50.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      1227
      W
    • Output (at 230V):
      3
      units on a single power line
    • Power factor:
      > 0,97
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      forced air with fan
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Pan / tilt lock:
      for transportation and maintenance
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Data connection:
      Neutrik Art-Net
      RJ45 IN/OUT
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • Dimensions (WxHxD):
      520x644x310
      mm
    • Weight:
      26,4
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x ASTRAWASH37PIX
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
    • 2 x OS24
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    Flight case for 3 pcs of ASTRAWASH37PIX
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    BlackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    Egg Crate for ASTRAWASH37PIX
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    Matt black cover for ring for ASTRAWASH37PIX
    ASTRAWASH37PIX (include)
    {ProdottiDaAccessorio}
    Quick-lock omega bracket, M10 hole
    ASTRAWASH37PIX (optional)
    {ProdottiDaAccessorio}
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

    Data sheet & specs

    File name File size Download
    Astrawash37pix_A4_DATASHEET_(EN).pdf 528KB
    Astrawash37pix_LETTER_DATASHEET_(EN).pdf 530KB
    Astrawash37pix_TENDER_SPECIFICATION.pdf 5MB

    User manual

    File name File size Download
    Astrawash37pix_USER_MANUAL_FR.pdf 5MB
    Astrawash37pix_USER_MANUAL_EN.pdf 5MB
    GENERAL_SAFETY_INFORMATION.pdf 12MB

    DMX chart & personalities

    File name File size Download
    Astrawash37pix_DMX_CHARTS.pdf 363KB
    VECTORWORKS_SYMBOLS.vwx 844KB
    PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 443MB
    ASTRAWASH37PIX Firmware rev. 1.0.15
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    prolights_astrawash37pix_ies files.zip 68KB
    prolights_astrawash37pix_ldt files.zip 41KB
    Astrawash37pix_PHOTOMETRICS_REPORT.pdf 5MB
    Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    Astrawash37pix_3D_SKETCHUP.skp 719KB
    Astrawash37pix_3D_REVIT.rfa 444KB
    Astrawash37pix_2D.dwg 8MB
    Astrawash37pix_3D.dwg 564KB
    Astrawash37pix_2DSYMBOLS.dwg 82KB

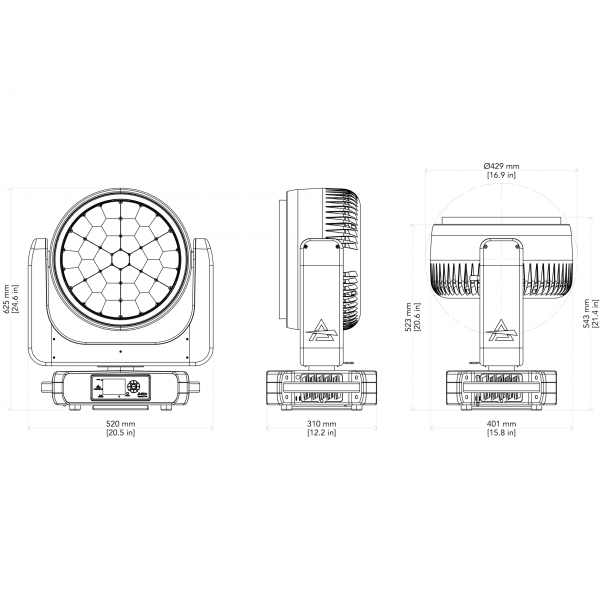

    Astrawash37pix_TECHNICAL_DRAWING.pdf 412KB

    Tech docs

    File name File size Download
    Astrawash37pix_PIXEL_NUMBERING.pdf 354KB
    Astrawash37pix_NOISE_REPORT.pdf 150KB

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX2P5
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.0.15 STABLE 15/02/2022 Fixed bugs:
    • Fixed bug: calibration data lost randomly after reload.
