Astra Wash7PixIP
ORDER CODE: ASTRAWASH7PIXIP
Share me

IP65

Immagine Principale
  • ASTRAWASH7PIXIP
  • ASTRAWASH7PIXIP
  • ASTRAWASH7PIXIP
  • ASTRAWASH7PIXIP
  • ASTRAWASH7PIXIP
  • ASTRAWASH7PIXIP
  • ASTRAWASH7PIXIP

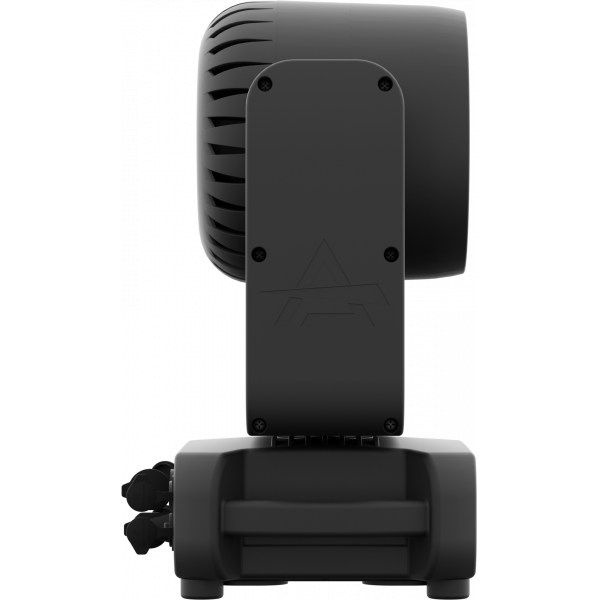

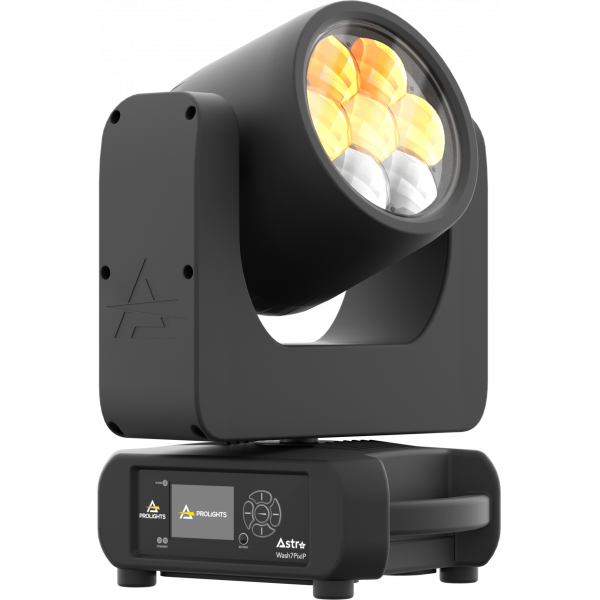

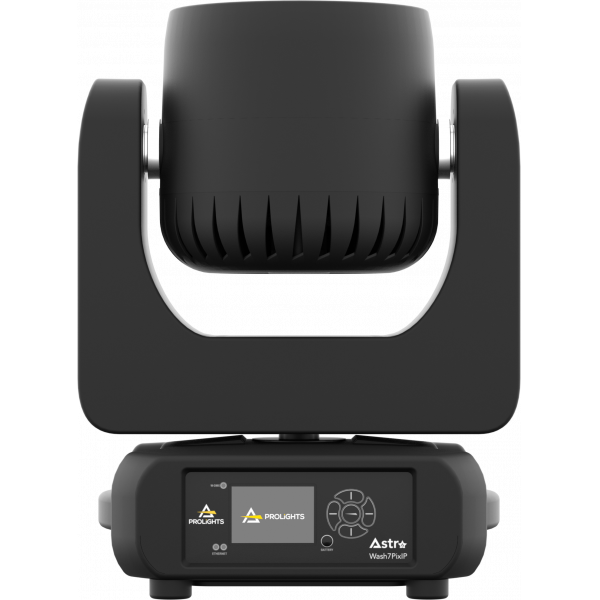

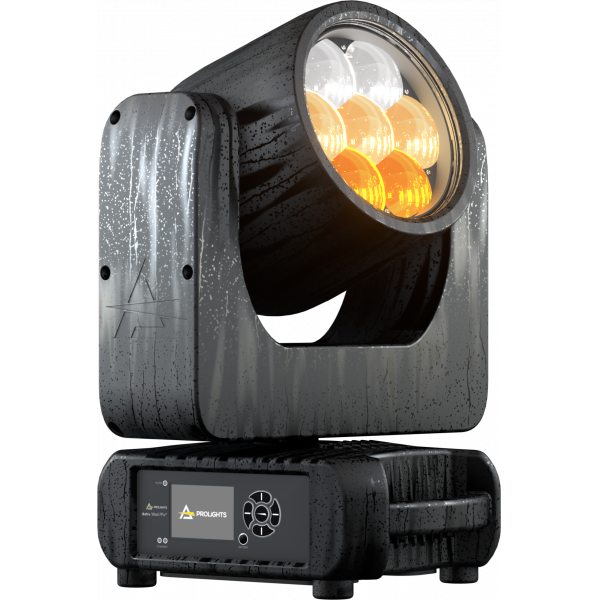

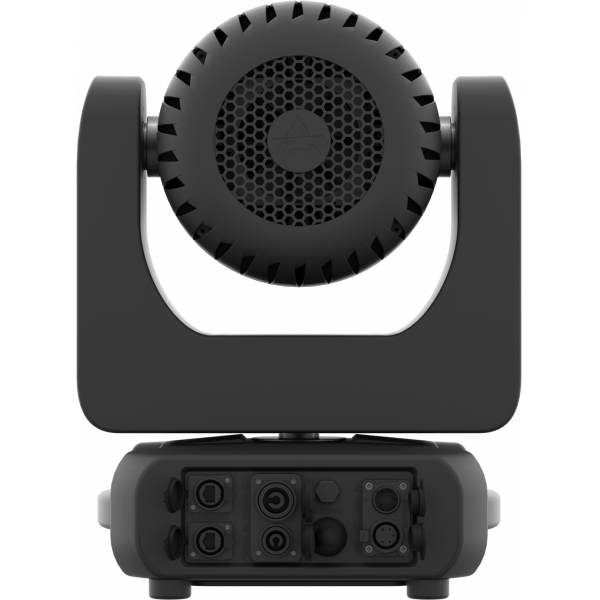

  • The Astra Wash7PIXIP is an IP65 LED moving wash light, designed in a small and lightweight body, with the same features and performances than its indoor version.

    This fixture has a 7x40W Osram RGBW LED light source, and an extremely high-efficiency optical system capable of zooming from 4° to 56°, making this luminaire extremely versatile for any application as a beam or wash light.

    The Astra Wash7PIXIP is single pixel controllable, with multiple on-board FX, along with precise and advanced white and colour control, all through DMX/RDM, W-DMX, Art-Net, sACN and Kling-Net.

    Features:
    IP65 with a compact form factor and fast movements
    Zoom from 4° to 56° with a high-optical efficiency
    Pixel control, precise white CCT, multiple FXs and colour features

    LIGHT SOURCE
    • Source:
      7x40
      W
      RGBW Osram Ostar LEDs
    • Luminous flux:
      (4°) 2'013 lm - (56°) 3'543
      lm
      @full
    • Lux:
      (4°) 18'360 lx - (56°) 364
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      4° - 56
      °
      motorised linear zoom
    • Lens type:
      honeycomb gapless plano-convex optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    BODY
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    • Pan angle:
      540
      °
    • Tilt angle:
      233
      °
    • Pan/Tilt resolution:
      16
      bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      weatherproof IP65 construction
    • Body colour:
      RAL 9004
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
    • DMX channels:
      main personality 24 / 27 / 39
      channel
    • Pixel control:
      OFF, ring and pixel2pixel selectable options
    • Wireless Control:
      included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display with autoflip
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -20° ~ +45°
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 50.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      220
      W
    • Output (at 230V):
      13
      units on a single power line
    • Power factor:
      > 0,93
    PHYSICAL
    • IP rating:
      65
      for temporary outdoor use (*)
    • Cooling:
      forced air with fan
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Data connection:
      Seetronic Art-Net
      RJ45 IN/OUT
    • Power connection:
      Seetronic powerCON TRUE IP65 IN

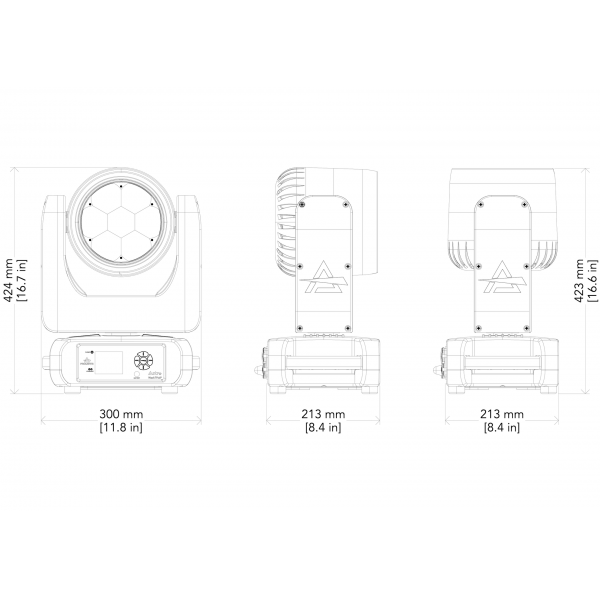

    • Dimensions (WxHxD):
      300x424x213
      mm
    • Weight:
      13,2
      kg
    (*)
    • NOTE:
      Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x ASTRAWASH7PIXIP
    • 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
    • 2 x OSIP
    • 1 x Antenna
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ASTRAWASH7PIXIP (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    ASTRAWASH7PIXIP (optional)
    {ProdottiDaAccessorio}
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    ASTRAWASH7PIXIP (optional)
    {ProdottiDaAccessorio}

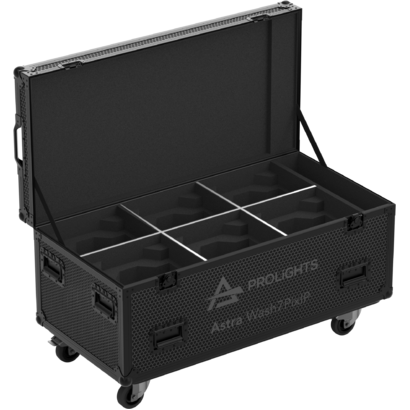

    Flight case for 6 pcs of ASTRAWASH7PIXIP
    ASTRAWASH7PIXIP (optional)
    {ProdottiDaAccessorio}
    Single Universe DMX transceiver with Bluetooth
    ASTRAWASH7PIXIP (optional)
    {ProdottiDaAccessorio}

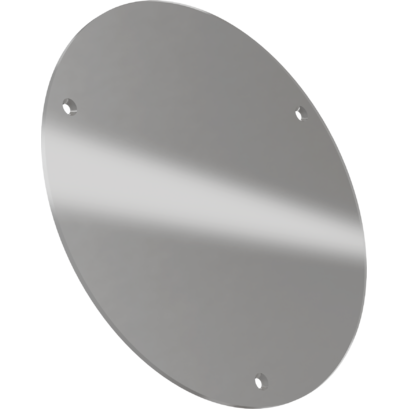

    Smooth filter for ASTRAWASH7PIX and ASTRAWASH7PIXIP
    ASTRAWASH7PIXIP (optional)
    {ProdottiDaAccessorio}

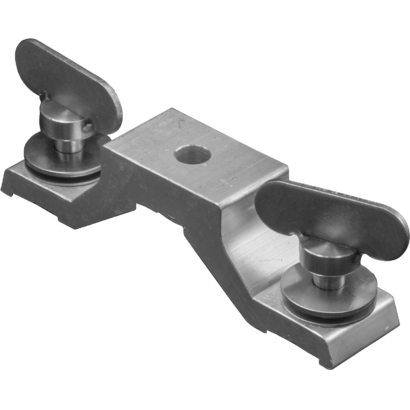

    IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
    ASTRAWASH7PIXIP (include)
    {ProdottiDaAccessorio}
    IP65 quick-lock omega bracket compatible with IP65 moving heads, M10 hole
    ASTRAWASH7PIXIP (optional)
    {ProdottiDaAccessorio}
    Portable vacuum and pressure tester for ProLights IP fixtures
    ASTRAWASH7PIXIP (optional)
    {ProdottiDaAccessorio}
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

    Data sheet & specs

    File name File size Download
    Letter datasheet Astrawash7pixip_LETTER_DATASHEET_(EN).pdf 5MB
    Letter datasheet Astrawash7pixip_A4_DATASHEET_(EN).pdf 5MB
    Tender Specification Astrawash7pixip_TENDER_SPECIFICATION.pdf 5MB

    User manual

    File name File size Download
    User manual Astrawash7pixip_USER_MANUAL_EN.pdf 4MB
    General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
    User manual Astrawash7pixip_Wireless_Protocol_Compatibilit_EN.pdf 4MB

    DMX chart & personalities

    File name File size Download
    DMX chart Astrawash7pixip_DMX_CHARTS.pdf 120KB
    VectorWorks VECTORWORKS_SYMBOLS.vwx 741KB
    VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
    VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
    ASTRAWASH7PIXIP Firmware rev. 1.0.19
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    IES prolights_astrawash7pixip_ies files.zip 48KB
    LDT prolights_astrawash7pixip_ldt files.zip 27KB
    PDF Photometrics Astrawash7pixip_PHOTOMETRICS_REPORT.pdf 5MB
    Dialux Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    3D SKP Astrawash7pixip_3D_SKETCHUP.skp 343KB
    3D RFA Astrawash7pixip_3D_REVIT.rfa 444KB
    2D Astrawash7pixip_2D.dwg 4MB
    3D Astrawash7pixip_3D.dwg 542KB
    2D cad symbols Astrawash7pixip_2DSYMBOLS.dwg 55KB
    Technical drawing Astrawash7pixip_TECHNICAL_DRAWING.pdf 284KB

    Tech docs

    File name File size Download
    General safety info Astrawash7pixip_PIXEL_NUMBERING.pdf 190KB

    Software

    File name File size Download

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX2P5 {CodiceUpBox}
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.0.19 STABLE 07/09/2023 Fixed Bug:
    • Main and Pixel addresses are not handled correctly in some combinations.

    Info Request
