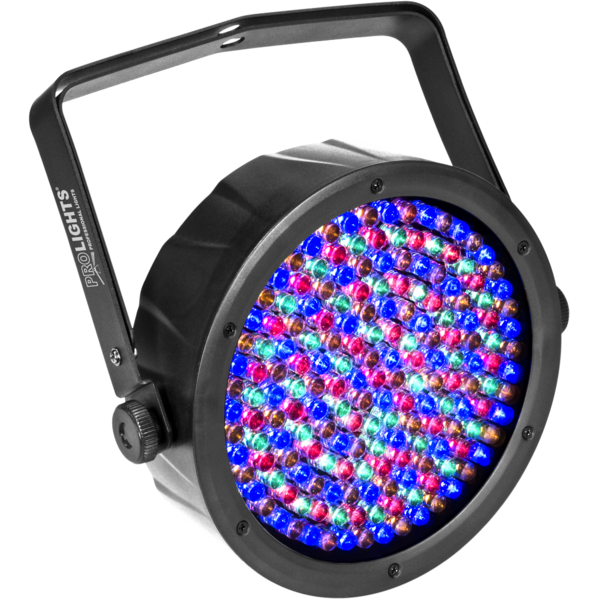

  • BATPAR180 is a LED projector with a superslim design, designed to be used completely wireless through the lithium battery and built-in infrared controller.
    BATPAR180 employs 180 mini-LED RGBA, with battery life of over 6 hours continuously. The design of BATPAR180 makes this projector an ideal choice as a light truss, accent lighting, blinder or changers, in clubs, events, furniture, or any place difficult to reach by wiring.

    Light source and optics
    • 180 LED (10 mm / 0,06 W) RGBA (39 red, 39 green, 51 blue, 51 amber)
    • Beam angle: 20°
    • Field angle: 30°
    • Color synthesis: mixing RGBA (> 16 million colors)
    • LEDs average life span:> 50,000 hours

    Electronics and features
    • 100% working wireless with lithium battery and IR control
    • Lithium battery is long-lived, rechargeable, lightweight
    • Electronic protection for battery management allows you to extend the life and increase the recharge cycles
    • Battery life: 7 hours
    • Charging time: 5 hours
    • Control Panel with LED display (4-digits)
    • Several DMX configurations (4, 8 channels) for professional or simplified control
    4 channels: RGBA
    8 channels: RGBA, macro, auto, strobe, dimmer
    • Mode IR: Built-in infrared receiver for remote controller
    • Automatic Mode: 6 preset programs with automatic speed adjustment
    • Mode static colors: color reproduction static
    • Master/Slave: For the control of several units linked in a chain
    • Linear passage "stepless" DMX values
    • Frequency diode anti-flicker (400Hz) for video recordings

    Structure and Power supply
    • Cast aluminum body, degree of protection: IP33
    • Forced air cooling
    • Double-bracket for mounting suspension or placement from the ground
    • Power supply :100-240V 50/60Hz
    • Average consumption: 16,2W (output up to 46 projectors)
    • Weight: 2 kg
    • Dimensions (WxHxD): 312x96x345 mm
