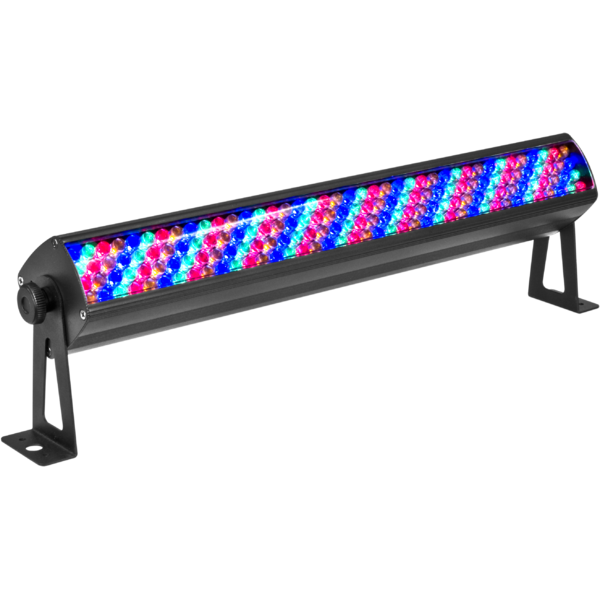

  • BATSTRIP160 is a linear LED projector designed for use completely wireless through the internal lithium battery pack and the infrared controller for remote control. The battery provides up to 7 continuous hours using and its design appears to be ideal for applications in clubs, trade show, corporate events, event furniture.

    Light source and optics
    • 160 LED (10 mm / 0,06 W) RGBA (40 red, 40 green, 40 blue, 40 amber)
    • Beam angle: 16°
    • Field angle: 48°
    • Color synthesis: mixing RGBA (> 16 million colors)
    • LEDs average life span:> 50,000 hours

    Electronics and features
    • 100% working wireless with lithium battery and IR control
    • Lithium battery is long-lived, rechargeable, lightweight
    • Electronic protection for battery management allows you to extend the life and increase the recharge cycles
    • Battery life: 7 hours
    • Charging time: 5 hours
    • 4 independent control section (4 pix)
    • Control Panel with LED display (4-digits)
    • Several DMX configurations (2, 4, 5, 8, 10, 18 channels) for professional or simplified control
    2 channels: Auto, Auto speed
    4 channels: RGBA
    5 channels: Dimmer, RGBA
    8 channels: Dimmer, RGBA, cars, speed, strobe
    10-channel: Dimmer, RGBA (2pix), strobe
    18 channels, dimmer, RGBA (4pix), strobe
    • Mode IR: Built-in infrared receiver for remote controller
    • Auto mode: 17 preset programs with automatic speed adjustment
    • Mode static colors: color reproduction static
    • Master / Slave: For the control of several units linked in a chain
    • Linear passage "stepless" DMX values
    • Frequency diode anti-flicker (400Hz) for video recordings

    Structure and power supply
    • Cast aluminum body, degree of protection: IP20
    • LED bar with low profile, only 65 mm thick
    • Projector fanless and structure designed for heat dissipation by natural convection
    • Double-bracket for mounting suspension or placement from the ground
    • Power supply :100-240V 50/60Hz
    • Average consumption: 15,3 W (output up to 46 projectors)
    • Weight: 3 kg
    • Dimensions (WxHxD): 569x73x159 mm
