Diamond 19TW
ORDER CODE: DIAMOND19TW
Share me

Immagine Principale
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW
  • DIAMOND19TW

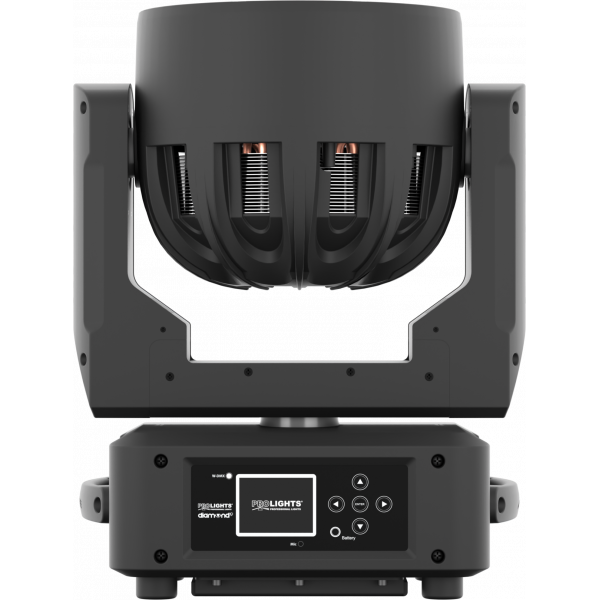

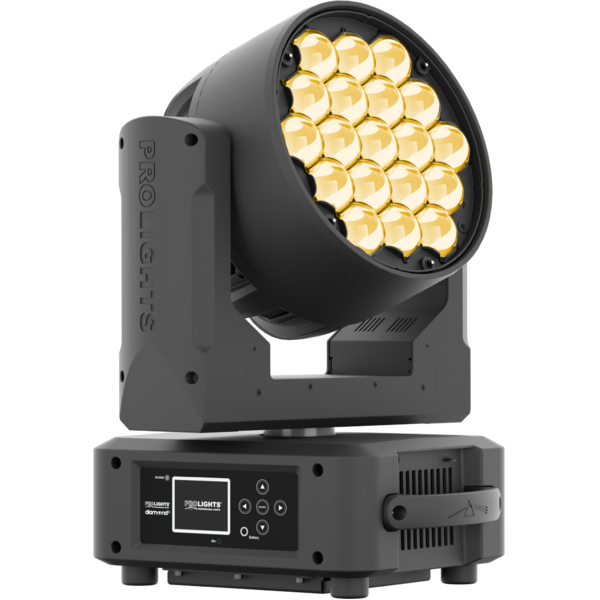

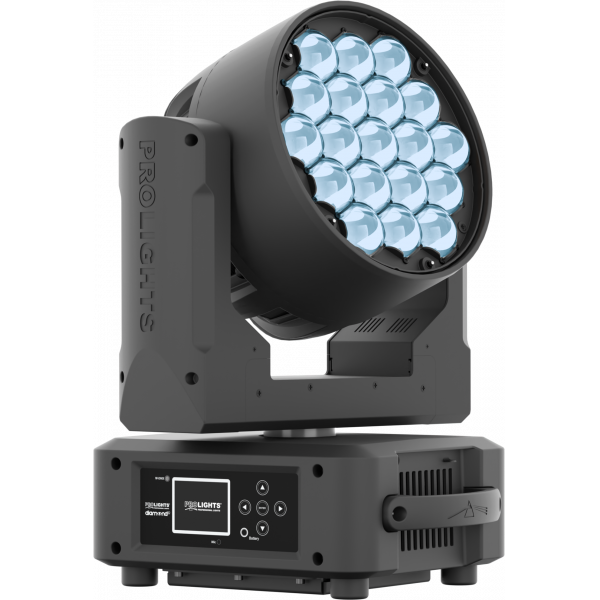

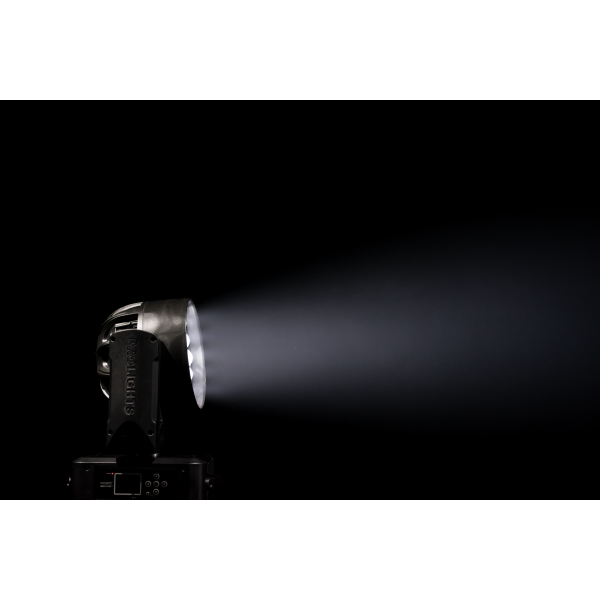

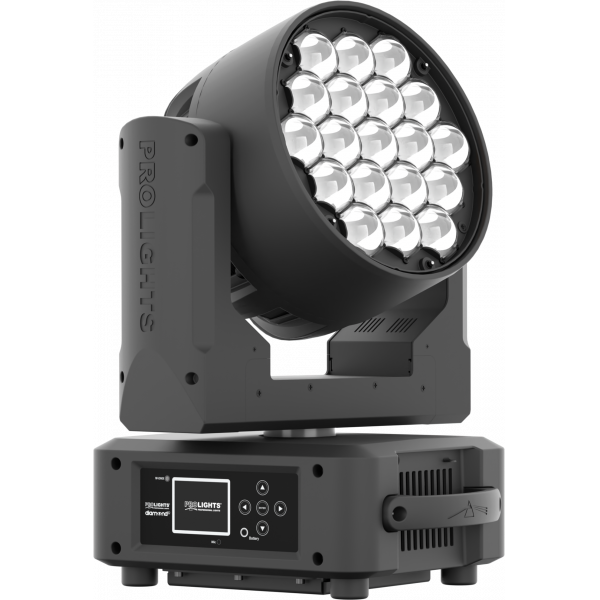

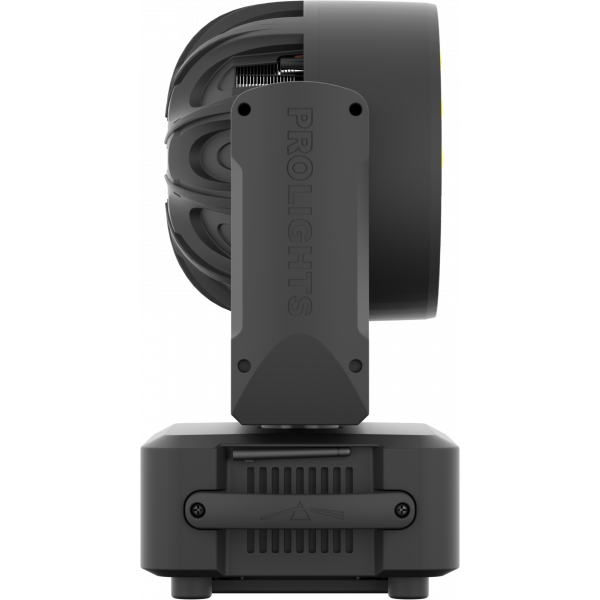

    • Diamond 19TW is a tunable white version of the stunning Diamond 19 delivering a consistent 2.600 K - 8.000 K output. The 7° - 42,4° zoom, even beam and precise colour calibration create a true workhorse fixture for an exhibition, corporate or broadcast environment.

    Features:
    19x15W CW / WW Tunable White Osram Ostar LEDs
    CRI in the range from 70 to 90 (CT dependant)
    7° - 42,4° zoom range
    CT from 2.600 K - 8.000 K
    Liquid cooling system for minimal noise

    LIGHT SOURCE
    • Source:
      19x15
      W
      Warm White + Cold White Osram Ostar LED
    • CCT:
      2.600 K - 8.000
    • Luminous flux:
      4'810
      lm
      @full
    • Lux:
      (6°) 5'859 lx - (40°) 1'089
      lx
      @5 m full
    • CRI:
      97 @2.600 K
    • R9:
      87 @2.600 K
    • Other:
      TM30: 93 @2.600 K - TLCI: 94 @2.600 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      7° - 40
      °
      motorised linear zoom
    • Lens type:
      honeycomb gapless plano-convex optics
    COLOUR SYSTEM
    • Colour mixing:
      tunable white
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.600 K ~ 8.000
      K
    • Colour wheel:
      built-in white presets
    BODY
    • Pan angle:
      630
      °
    • Tilt angle:
      265
      °
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      12/13/14/20
      channel
    • Wireless Control:
      included, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      316
      W
    • Output (at 230V):
      6
      units on a single power line
    • Power factor:
      0,90
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      any position with quick-lock omega brackets

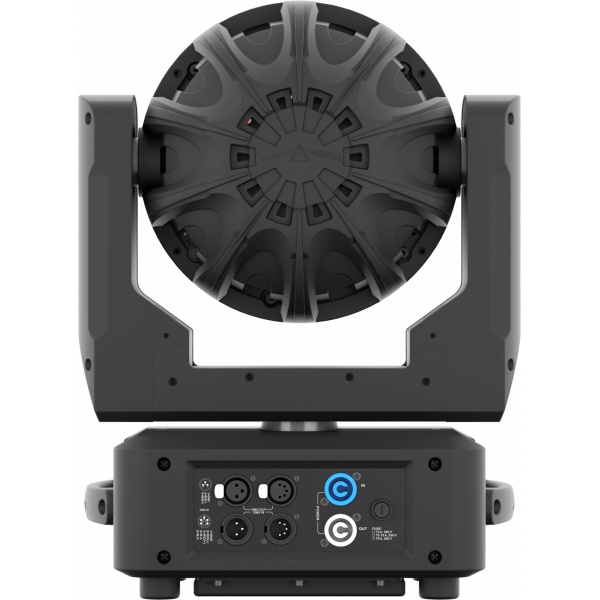

    • Signal connection:
      Amphenol XLR 3p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Dimensions (WxHxD):
      338x449x235
      mm
    • Weight:
      11
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x DIAMOND19TW
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
    • 2 x OS24
    • User Manual
