Diamond 37
ORDER CODE: DIAMOND37
Share me

Immagine Principale
  • DIAMOND37
  • DIAMOND37
  • DIAMOND37
  • DIAMOND37
  • DIAMOND37
  • DIAMOND37
  • DIAMOND37

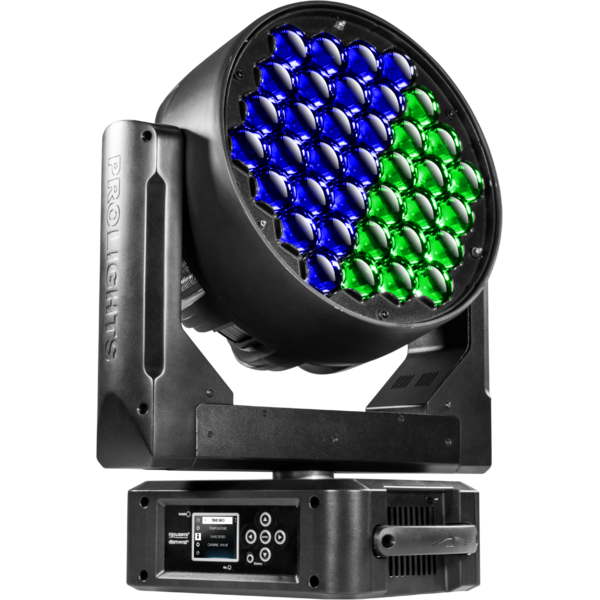

    • Diamond 37 is the largest of the stunning Diamond LED pixel wash family. As a wash light, the 6° - 66° zoom, even beam coupled with the fantastic colour range create a true workhorse fixture. For the next level, individual control of each LED pixel with switch system, tied with the Diamond's clever optical design and its onboard effects provide 'eye candy' effects both to look at and in the air.

    Powerful, consistent and clever; the Diamond 37 makes a statement even on the largest stage.

    Features:
    37x15W Osram Ostar RGBW LEDs provide an extensive and consistent colour range
    Individual control of pixels (on/off switch) with on-board FX generator for fast, precise effects
    Liquid cooling system for efficient cooling with virtually no noise

    LIGHT SOURCE
    • Source:
      37x15
      W
      RGBW Osram Ostar LEDs
    • Lux:
      (6°) 15'530 lx - (66°) 5'200
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      6° - 66
      °
      motorised linear zoom
    • Lens diameter:
      298
      mm
    • Lens type:
      honeycomb gapless plano-convex optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.700 K ~ 9.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Special features:
      Pixels controlled through On/Off switch for simplified control and budget friendly
    BODY
    • Pan angle:
      630
      °
    • Tilt angle:
      265
      °
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512, RDM, Art-Net, W-DMX
    • DMX channels:
      19 / 22 / 41 / 170
      channel
    • Pixel control:
      pixel2pixel control through on/off switch
    • Wireless Control:
      included, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      520
      W
    • Max power consumption (at 120V):
      520
      W
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    • Power connection:
      Neutrik powerCON TRUE1 IN connector
    • Dimensions (WxHxD):
      427x559x235
      mm
    • Weight:
      16
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    ITEMS REF.
    Accessory Code
    Description
    DIAMOND37 (include)
    DIAMOND7 (include)
    PIXIEWASH (include)
    STARK400 (include)
    RUBYFCX (include)
    STARK1000 (include)
    STARK1000CC (include)
    STARK400CC (include)
    STARKBAR1000 (include)
    STARKBLADE8 (include)
    PIXIEWASHXB (include)
    AIR5FAN (include)
    DIAMOND19TW (include)
    AIR18Z (include)
    AIR6PIX (include)
    DIAMOND19CC (include)
    DIAMOND19 (include)
    JETSPOT4Z (include)
    RUBY (include)
    JADE (include)
    PIXIESPOT (include)
    MINIRUBY (include)
    RAZOR440 (include)
    LUMA1500SP (include)
    LUMA1500SH (include)
    ONYX (include)
    CRYSTAL (include)
    MOONSTONE (include)
    JETWASH7 (include)
    ASTRAWASH37PIX (include)
    ASTRAWASH19PIX (include)
    ASTRAWASH7PIX (include)
    ASTRAHYB420 (include)
    JETWASH19 (include)
    {CODEs}OS24
    Quick-lock omega bracket.
    DIAMOND37 (include)
    MOONSTONE (optional)
    STARK400CC (include)
    STARK400 (include)
    STARK1000CC (include)
    STARK1000 (include)
    LUMA1500SP (include)
    SMARTBATPLUS (include)
    AIR6PIX (optional)
    DIAMOND19TW (include)
    DIAMOND19CC (optional)
    DIAMOND19 (include)
    ONYX (optional)
    DIAMOND7 (optional)
    JADE (include)
    AIR18Z (optional)
    LUMA1500SH (include)
    RUBY (optional)
    AIR5FAN (optional)
    RAZOR440 (include)
    {CODEs}WR24ANG5
    WIRELESS SOLUTION, nano RX DMX 3.3V/5V-18V MCX
    DIAMOND37 (include)
    ARCLED4312WX (include)
    DIAMOND19CC (optional)
    DIAMOND19 (include)
    DIAMOND19TW (include)
    DIAMOND7 (optional)
    WR24ANG5 (optional)
    CRYSTAL (optional)
    LUMA1500SH (include)
    STARK1000 (include)
    STARK400 (include)
    AIR18Z (optional)
    LUMA1500SP (include)
    ONYX (optional)
    MOONSTONE (optional)
    RAZOR440 (include)
    AIR6PIX (optional)
    JADE (include)
    STARK1000CC (optional)
    CROMOWASH601 (optional)
    STARK400CC (optional)
    RUBY (optional)
    LUXOR (optional)
    AIR5FAN (optional)
    {CODEs}WSA40501
    WDMX, antenna 2.4Ghz 2dBi omnidirectional, folding, SMA-male, indoor
    DIAMOND37 (optional)
    STARK1000CC (optional)
    STARK1000 (optional)
    {CODEs}FCL100037
    DISCONTINUED
    *Flight case for 2x STARK1000 or DIAMOND37
    DIAMOND37 (optional)
    {CODEs}FCLDIAMOND37
    End of life
    Flight case for 2pcs of DIAMOND37
    DIAMOND37 (optional)
    STARK1000CC (optional)
    STARK1000 (optional)
    {CODEs}FSHLW02
    End of life
    1U Foam shell compatible with DIAMOND37, STARK1000
    DIAMOND37 (optional)
    AIR6PIX (optional)
    STARKBAR1000 (optional)
    PANORAMAIPAB (optional)
    STARKBLADE8 (optional)
    STARK1000 (optional)
    MODULAWASH (optional)
    MODULASPOT (optional)
    MINIRUBY (optional)
    PIXIEBEAM (optional)
    AIR6PIX (optional)
    DIAMOND7 (optional)
    AIR18Z (optional)
    MOONSTONE (optional)
    CRYSTAL (optional)
    ONYX (optional)
    STARK400 (optional)
    SMARTMODULA (optional)
    LUMA1500SP (optional)
    ASTRAWASH37PIX (optional)
    ASTRAHYB420 (optional)
    SMARTOWERPACK (optional)
    ASTRAWASH7PIX (optional)
    SMARTOWER (optional)
    ASTRAWASH19PIX (optional)
    LUMA1500SH (optional)
    JETWASH7 (optional)
    JETWASH19 (optional)
    DIAMOND19CC (optional)
    DIAMOND19TW (optional)
    DIAMOND19 (optional)
    RAZOR440 (optional)
    ASTRAWASH7PIXIP (optional)
    RUBY (optional)
    JADE (optional)
    PANORAMAIPWBX (optional)
    PANORAMAIPSPOT (optional)
    RUBYFCX (optional)
    ASTRABEAM260IP (optional)
    AIR5FAN (optional)
    ECLEXPOFL300VW (optional)
    ECLCTPLUS (optional)
    ECLFS (optional)
    ECLCTPLUSIP (optional)
    ECLFW (optional)
    ECLFWVW (optional)
    ECLFWIPVW (optional)
    ECLFWIP (optional)
    {CODEs}UPBOX2P5
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Diamond37_CAD_2D.dwgDownload
    Diamond37_CAD_3D.dwgDownload
    Diamond37_TECHNICAL_DRAWING.pdfDownload

    Fixture Libraries / DMX Charts

    DIAMOND37 Firmware rev. 1.1.02
    AVOLITES Titan
    prolights_diamond37.d4Download
    CHAMSYS
    prolights_diamond37_19ch.hedDownload
    prolights_diamond37_22ch.hedDownload
    prolights_diamond37_41ch.hedDownload
    prolights_diamond37_170ch.hedDownload
    DIGILITE
    diamond37_19ch.fdfDownload
    diamond37_22ch.fdfDownload
    diamond37_41ch.fdfDownload
    diamond37_170ch.fdfDownload
    DMXControlCenter
    diamond37_ssl2.zipDownload
    ETC Eos Family
    manufacturer fixture libraryLink
    Grand Ma 2
    prolights@diamond_37@extended_1.xmlDownload
    prolights@diamond_37@extended_2.xmlDownload
    prolights@diamond_37@standard.xmlDownload
    prolights@diamond_37@basic.xmlDownload
    HOG Consoles
    diamond37_hog3.zipDownload
    MARTIN M-Series
    manufacturer fixture libraryLink
    OBSIDIAN Onyx
    manufacturer fixture libraryLink
    Vista by ChromaQ
    diamond 37 basic.fix2Download
    diamond 37 extended 1.fix2Download
    diamond 37 extended 2 control.fix2Download
    diamond 37 extended 2 single pixel.fix2Download
    diamond 37 extended 2.fix2Download
    diamond 37 standard.fix2Download
    WYSIWYG
    manufacturer fixture libraryLink

    Photometrics

    prolights_diamond37_full_66°.iesDownload
    prolights_diamond37_full_6°.iesDownload
    Diamond37_PHOTOMETRICS.pdfDownload

    Software Upgrades

    Tech Docs

    Diamond37_DMX_CHARTS.pdfDownload
    Diamond37_USER_MANUAL_ITEN.pdfDownload
