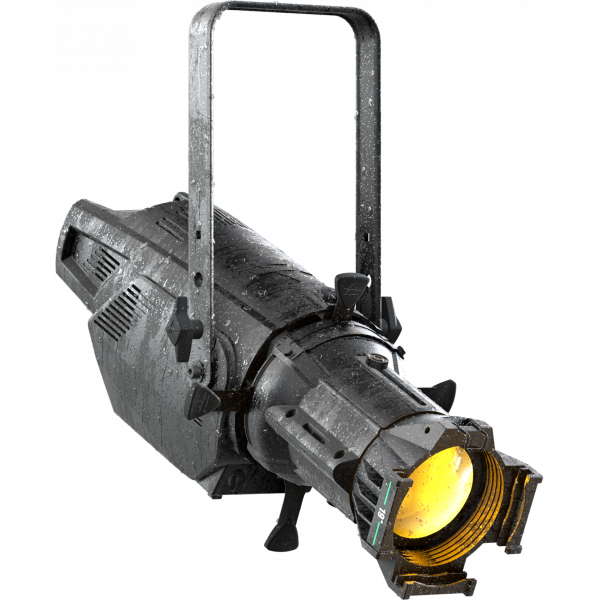

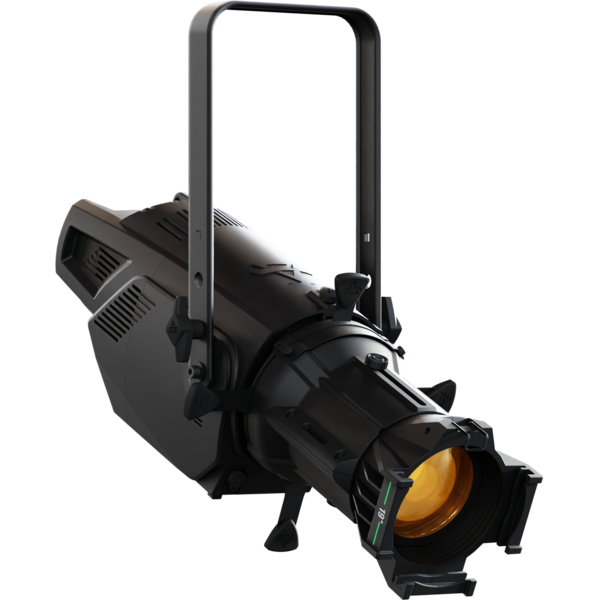

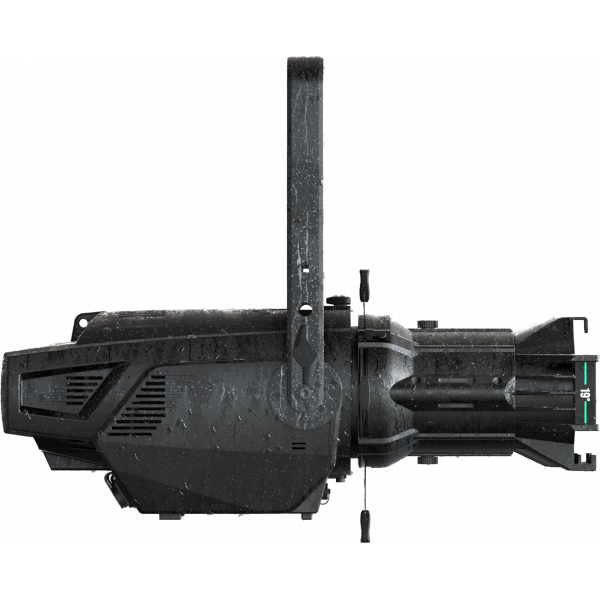

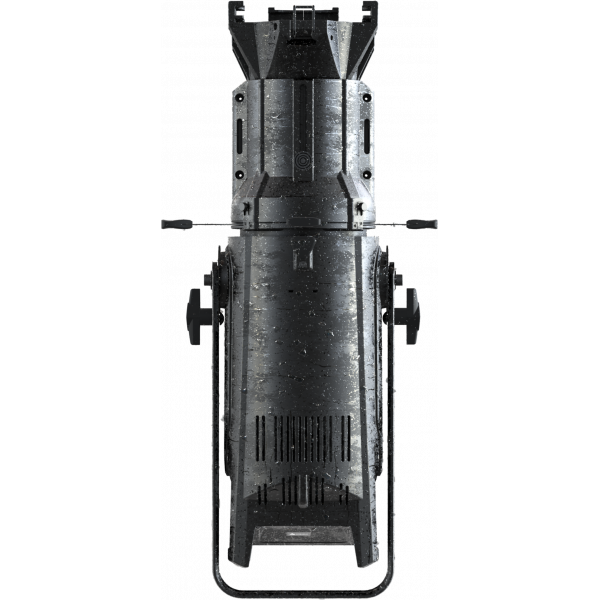

EclProfile CT+IP
ORDER CODE: ECLCTPLUSIP
Share me

IP65

Immagine Principale
  • ECLCTPLUSIP
  • ECLCTPLUSIP
  • ECLCTPLUSIP
  • ECLCTPLUSIP
  • ECLCTPLUSIP
  • EclProfile CT+IP
    Code Finishing Avail.
    ECLCTPLUSIPBK Black

    The EclProfile CT+IP is a tunable white and full colour IP LED ellipsoidal designed for exterior applications such as touring, theme parks, cruise ships, and any outdoor events.

    It uses the same 6-colour LED source than its indoor version, and IP body of the fixtures takes any of the standard lenses and accessories of the EclProfile range.

    Its custom LED array and the powerful on-board colour control allows reaching bright and high-quality whites, up to 97 CRI, keeping a consistent colour output and ensuring a total control of the light.

    The wide feature set includes special theatrical functions such as tungsten emulation on dimming and colours, LEE colour presets, virtual CTO and studio functions, such as green and magenta tuning on white presets.

    Features:
    IP rated for exterior applications
    Rotating gobo IP65 (optional)
    Linear white CCT from 2,800K to 10,000K, CRI up to 96
    Industry-standard colour gel matching, tungsten emulation on dimming, tint control (+/- green).

    LIGHT SOURCE
    • Source:
      96x3
      W
      6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
    • CCT:
      @full 5.000
    • Luminous flux:
      (5°) 3'805 lm; (10°) 4'790 lm; (14°) 5'047 lm; (19°) 5'380 lm; (26°) 6'681 lm; (36°) 6'814 lm; (50°) 5'773 lm; (70°) 7'430
      lm
      @full
    • Luminous flux:
      (zoom 15°-30°) (min angle) 5'290 lm; (max angle) 6'664 lm - (zoom 25°-50°) (min angle) 7'042 lm; (max angle) 9'817 @full
    • Lux:
      (5°) 14'638 lx; (10°) 8'663 lx; (14°) 3'812 lx; (19°) 2'530 lx; (26°) 1'759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306
      lx
      @5 m full
    • Lux:
      (zoom 15°-30°) (min angle) 3'502 lx; (max angle) 1'800 lx - (zoom 25°-50°) (min angle) 2'608 lx; (max angle) 974
      lx
      @5 m full
    • CRI:
      93,7 @3.200 K; 97,6 @5.600 K
    • R9:
      98,6 @3.200 K; 98,2 @5.600 K
    • TLCI:
      95 @5.600 K
    • TM30 Rf:
      92 @5.600 K
    • TM30 Rg:
      100,1 @5.600 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Lens type:
      high-quality glass lens optics
    • Additional optics:
      optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
    • Focus:
      manual
    • Other:
      see available accessories
    COLOUR SYSTEM
    • Colour mixing:
      RGB, Royal Blue, Mint, PC Amber
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      LEE filter emulation and RGB / HSI / CMY input mode selectable
    DYNAMIC EFFECTS
    • Rotating gobos:
      optional, see available accessories
    • Gobo size:
      B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
    • Special features:
      4 fan modes available and output management and
      linear crossfade channel from any white to any colour; virtual CTO on colours
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      RAL 9004
    CONTROL
    • Protocols:
      DMX512, RDM
    • Stand Alone:
      selection of static colours, white presets, manual colours and built-in effects with adjustable speed
    • DMX channels:
      UNO / DUO / Basic / Standard / Extended / RAW Direct / RAW 16bit / XY
      channel
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included (through dedicated software)
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Operating temperature:
      -20° ~ +45°
    • LED Control:
      flicker free operation
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      264
      W
    • Output (at 230V):
      7
      units on a single power line
    • Power factor:
      > 0,95
    PHYSICAL
    • IP rating:
      65
      for temporary outdoor application, not for fixed installations
    • Cooling:
      low noise fan
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      Seetronic XLR 5p IN/OUT connectors
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Dimensions (WxHxD):
      324x540x660
      mm
    • Weight:
      10
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM, cTUVus, FCC
    BOX CONTENT
    • 1 x ECLCTPLUSIP
    • 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
    • 1 x Calibration Report
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Rotating gobo assembly for ECL Profile fixtures, black
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Flightcase to contain 6 pcs ECLFWIP / ECLCTPLUS with lenses 19°, 26°, 36°, 50°
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Flightcase to contain 8 ECLPRLZ zoom lenses
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Smooth/homogenizer filter with aluminium frame and magnets for Ecl Profile fixtu
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Pole operated yoke for ECL Profile fixtures
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    10° lens barrel for Ecl Profile fixtures, filterframe included, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    5° PRL lens barrel for EclProfile fixtures, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    10° PRL lens barrel for EclProfile fixtures, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    14° PRL lens barrel for EclProfile fixtures, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    19° PRL lens barrel for EclProfile fixtures, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    26° PRL lens barrel for EclProfile fixtures, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    36° PRL lens barrel for EclProfile fixtures, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    50° PRL lens barrel for EclProfile fixtures, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    70° PRL lens barrel for EclProfile fixtures, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    90° PRL lens barrel for EclProfile fixtures, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Optics for ECLFC/HD profiler, TPG incl., zoom 15°-30°
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Zoom 15°-30° PRL lens barrel for EclProfile fixtures, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Zoom 25°-50° PRL lens barrel for EclProfile fixtures, black housing
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Gel filter frame for ECL Profile PRL lens barrel, comp. with 19°,26°,36° and 50°
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Optics for ECLFC/HD profiler, TPG incl., zoom 25°-50°
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Gobo holder for ECL Profile fixtures, B size
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Gobo holder for ECL Profile fixtures, A size
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Iris accessory for ECL Profile fixtures
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Soft edge filter and holder kit for ECL Profile fixtures
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Hexagonal head screw, to adapt ECLLZ lenses on ECLCTPLUS, ECLFW and ECLFS
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    28mm spigot for fixtures, M12 bolt
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    28mm spigot for fixtures, M10 bolt
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Portable vacuum and pressure tester for ProLights IP fixtures
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
    ECLCTPLUSIP (optional)
    {ProdottiDaAccessorio}
    Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

    Data sheet & specs

    File name File size Download
    Letter datasheet Eclctplusip_A4_DATASHEET_(EN).pdf 688KB
    Letter datasheet Eclctplusip_LETTER_DATASHEET_(EN).pdf 645KB
    Tender Specification Eclctplusip_TENDER_SPECIFICATION.pdf 5MB

    User manual

    File name File size Download
    User manual Eclctplusip_FIRMWARE_UPDATE.pdf 631KB
    User manual Eclctplusip_USER_MANUAL_EN.pdf 11MB
    User manual Eclctplusip_USER_MANUAL_FR.pdf 11MB
    General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB

    DMX chart & personalities

    File name File size Download
    DMX chart Eclctplusip_DMX_CHARTS.pdf 82KB
    VectorWorks +Eclprl05_VECTORWORKS_SYMBOLS.vwx 722KB
    VectorWorks +Eclprl10_VECTORWORKS_SYMBOLS.vwx 697KB
    VectorWorks +Eclprl14_VECTORWORKS_SYMBOLS.vwx 646KB
    VectorWorks +Eclprl19_VECTORWORKS_SYMBOLS.vwx 639KB
    VectorWorks +Eclprl26_VECTORWORKS_SYMBOLS.vwx 661KB
    VectorWorks +Eclprl36_VECTORWORKS_SYMBOLS.vwx 634KB
    VectorWorks +Eclprl50_VECTORWORKS_SYMBOLS.vwx 643KB
    VectorWorks +Eclprl70_VECTORWORKS_SYMBOLS.vwx 701KB
    VectorWorks +Eclprlz1530_VECTORWORKS_SYMBOLS.vwx 732KB
    VectorWorks +Eclprlz2550_VECTORWORKS_SYMBOLS.vwx 772KB
    VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
    VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
    ECLCTPLUSIPBK Firmware rev. 1.30.3
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    ECLCTPLUSIPBK Firmware rev. 1.30
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link
    manufacturer fixture library (Link) Link

    Photometrics

    File name File size Download
    IES prolights_eclctplus ip_ies files.zip 78KB
    LDT prolights_eclctplus ip_ldt files.zip 75KB
    PDF Photometrics Eclctplusip_PRL5_PHOTOMETRICS_REPORT.pdf 3MB
    PDF Photometrics Eclctplusip_PRL10_PHOTOMETRICS_REPORT.pdf 3MB
    PDF Photometrics Eclctplusip_PRL14_PHOTOMETRICS_REPORT.pdf 3MB
    PDF Photometrics Eclctplusip_PRL15-30_PHOTOMETRICS_REPORT.pdf 4MB
    PDF Photometrics Eclctplusip_PRL19_PHOTOMETRICS_REPORT.pdf 3MB
    PDF Photometrics Eclctplusip_PRL25-50_PHOTOMETRICS_REPORT.pdf 3MB
    PDF Photometrics Eclctplusip_PRL26_PHOTOMETRICS_REPORT.pdf 3MB
    PDF Photometrics Eclctplusip_PRL36_PHOTOMETRICS_REPORT.pdf 3MB
    PDF Photometrics Eclctplusip_PRL50_PHOTOMETRICS_REPORT.pdf 3MB
    PDF Photometrics Eclctplusip_PRL70_PHOTOMETRICS_REPORT.pdf 3MB
    Dialux Download DIALux product catalogue -

    CAD symbols & drawings

    File name File size Download
    3D sketchup ECLCTPLUSIP_3D_SKETCHUP.zip 13MB
    2D ECLCTPLUSIP_2D.zip 141MB
    3D ECLCTPLUSIP_3D.zip 9MB
    2D cad symbols ECLCTPLUSIP_2DSYMBOLS.zip 863KB
    Technical drawing ECLCTPLUSIP_TECHNICAL DRAWINGS.zip 6MB

    Tech docs

    File name File size Download
    Noise Report Eclctplusip_NOISE_REPORT.pdf 1MB

    Software

    File name File size Download
    Software ECLFWIP/CT+ Firmware Updater 0KB

    Firmware

    Only the latest firmware versions for each hardware revision are available for download.
    To download previous firmware versions, log in to the customer care section.
    Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
    Check hardware changelog before downloading firmware
    Revision Release date Firmware changelog HW Compatibility
    1.30.3 STABLE 27/03/2023 Improvements:
    • Minor improvements to display management.
    Rev. 1.0
    1.30 STABLE 04/03/2021 First stable release.
