| Code | Finishing | Avail. | |||||||||||
|
ECLFR2KPTW | Black | |||||||||||
|

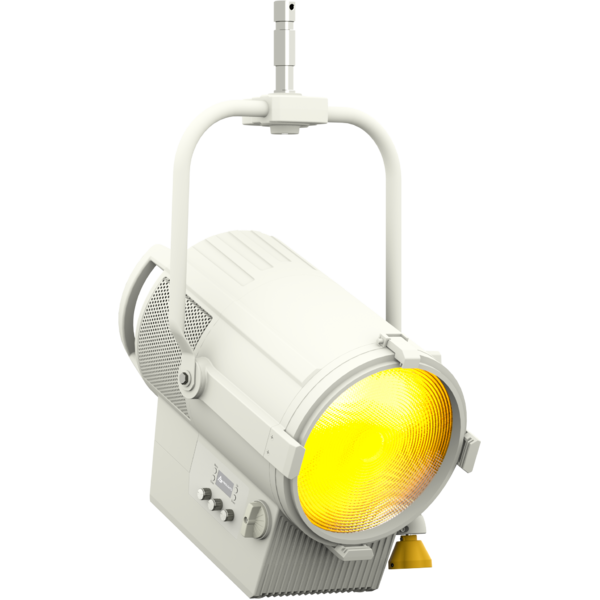

ECLFR2KPTWWH | White |
EclFresnel 2KPTW is an advanced LED replacement of traditional 2K Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and extensive colour reproduction. The optical system harnesses the power of a 500W custom LED with 6 colours to create an even projection, beautiful colours and precise whites, with the option to apply +/- green and magenta correction to match other light sources. Featuring HD dimming and tuning from 2.800 K to 10.000 K, the EclFresnel 2KPTW delivers both on performance and quality of output that is demanded from this level of light.
Features:Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
+/- green and magenta white tuning
Truly silent operation making it perfect for studio and stage use
- Source:500W6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
- CCT:2.800 K - 10.000K
- Luminous flux:(17°) 10'100 lm - (52°) 13'400lm@full
- Lux:(17°) 3'864 lx - (52°) 710lx@5 m full
- CRI:89 @3.200 K; 90,7 @5.600 K
- R9:80 @3.200 K; 85,4 @5.600 K
- TLCI:87 @5.600 K
- TM30 Rf:89,4 @3.200 K; 86,2 @5.600 K
- TM30 Rg:101,6 @3.200 K; 102,1 @5.600 K
- Source life expectancy:> 70.000 h
- Zoom:17° - 52°half peak angle
- Lens diameter:250mm
- Lens type:fresnel zoom lens
- Other:spigot, barndoor and gel frame included
- Colour mixing:6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
- CCT:CCT control, + / - green correction, tungsten emulation
- White presets:2.800 K - 10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built macros with adjustable speed
- Static mode:selection of static colour
- Manual mode:manual adjustment of intensity, CT, colour correction from knob
- Auto mode:built-in programs with execution speed adjustment
- Special features:linear crossfade channel from any white to any colour; virtual CTO on colours
- Hardware on-board:filter frame, 8 doors barndoor, spigot
- Pan angle:360°with manual regulation
- Tilt angle:180°with manual regulation
- Body:sturdy die-cast aluminium body
- Body colour:black, white finishing available
- Other:Spigot 28 mm
- Protocols:DMX512, RDM, rotatory knob
- DMX channels:1 / 2 / 5 - 1 / 5 - 2 / 7 - 1 / 7 - 2 / 8 / 9 / 12 / 13 / 16 / 19 / 21channel
- RDM:RDM for remote monitoring and settings
- Display:Graphic User Interface
- Firmware upgrade:yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave:for synchronised operation of more units linked in a chain
- Other:16bit control of dimmer and colour
- Dimmer:linear 0 ~ 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Operating temperature:-10° ~ +45°
- LED Control:flicker free frequency with adjustable PWM
- Selectable PWM:600 ~ 25.000 Hz
- Mains power supply:100-240V - 50/60Hz
- Max power consumption:400W
- Output (at 230V):5units on a single power line
- Power factor:>0,93
- IP rating:20
- Cooling:combination of heat pipe cooling system and low noise fan
- Suspension and fixing:bracket for hanging and positioning
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Dimensions (WxHxD):401x576x456mm
- Weight:18kg
- Certifications / Approvals:CE, UKCA, RCM
- 1 x ECLFR2KPTW
- 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
- 1 x ECLFR2KBD
- 1 x ECLFR2KTPG
- User Manual
