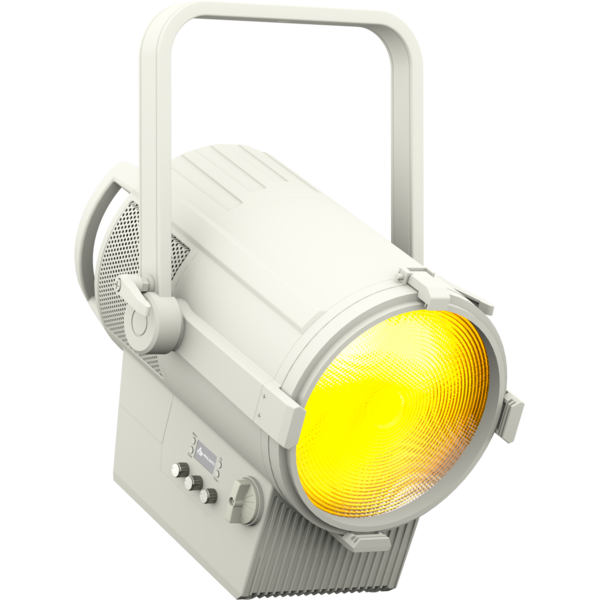

EclFresnel 2KTW
ORDER CODE: ECLFR2KT
Share me

Immagine Principale
  • ECLFR2KT
  • ECLFR2KT
  • ECLFR2KT
  • ECLFR2KT
  • ECLFR2KT
  • EclFresnel 2KTW
    Code Finishing Avail.
    ECLFR2KTW Black

    EclFresnel 2KTW is an advanced LED replacement of traditional 2.000W Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and extensive colour reproduction.

    The optical system harnesses the power of a 500W custom LED with 6 colours to create an even projection, beautiful colours and precise whites, with the option to apply +/- green and magenta correction to match other light sources.

    Featuring HD dimming and tuning from 2.800 K to 10.000 K, the EclFresnel 2KTW delivers both on performance and quality of output that is demanded from this level of light.

    Features:
    Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
    +/- green and magenta white tuning
    Truly silent operation making it perfect for studio and stage use

    LIGHT SOURCE
    • Source:
      500
      W
      6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
    • CCT:
      2.800 K - 10.000
      K
    • Luminous flux:
      (17°) 10'100 lm - (52°) 13'400
      lm
      @full
    • Lux:
      (17°) 3'864 lx - (52°) 710
      lx
      @5 m full
    • CRI:
      89 @3.200 K; 90,7 @5.600 K
    • R9:
      80 @3.200 K; 85,4 @5.600 K
    • TLCI:
      87 @5.600 K
    • TM30 Rf:
      89,4 @3.200 K; 86,2 @5.600 K
    • TM30 Rg:
      101,6 @3.200 K; 102,1 @5.600 K
    • Source life expectancy:
      > 70.000 h
    OPTICS
    • Zoom:
      17° - 52
      °
      half peak angle
    • Lens diameter:
      9,84" - 250
      mm
    • Lens type:
      fresnel zoom lens
    • Other:
      spigot, barndoor and gel frame included
    COLOUR SYSTEM
    • Colour mixing:
      6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K - 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-build macros with adjustable speed
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjustment of intensity, CT, colour correction from knob
    • Auto mode:
      built-in programs with execution speed adjustment
    • Special features:
      linear crossfade channel from any white to any colour; virtual CTO on colours
    BODY
    • Hardware on-board:
      filter frame, 8 doors barndoor, spigot
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM, rotatory knob
    • DMX channels:
      1 / 2 / 5 - 1 / 5 - 2 / 7 - 1 / 7 - 2 / 8 / 9 / 12 / 13 / 16 / 19 / 21
      channel
    • RDM:
      RDM ready for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    • Other:
      16bit control of dimmer and colour
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      400
      W
    • Output (at 230V):
      5
      units on a single power line
    • Power factor:
      >0,93
    PHYSICAL
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      421x537x456
      mm
    • Weight:
      17,2
      kg
    BOX CONTENT
    • 1 x ECLFR2KTW
    • 1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)
    • 1 x ECLFRSPG
    • 1 x ECLFR2KBD
    • 1 x ECLFR2KTPG
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ECLFR2KT (include)
    ECLFR2K (include)
    ECLFR2KPT (include)
    Gel filter frame for ECLFR2K projectors
    ECLFR2KT (include)
