EclFresnel 2K

Code	CCT	CRI	R9	Lumen	Finishing	Avail.
ECLFR2KTU	3.200 K	94	73	26'126 lm	Black
ECLFR2KDY	5.600 K	91	80	32'428 lm	Black
ECLFR2KPTU	3.200 K	94	73	26'126 lm	Black
ECLFR2KPDY	5.600 K	91	80	32'428 lm	Black
ECLFR2KTUWH	3.200 K	94	73	26'126 lm	White
ECLFR2KDYWH	5.600 K	91	80	32'428 lm	White

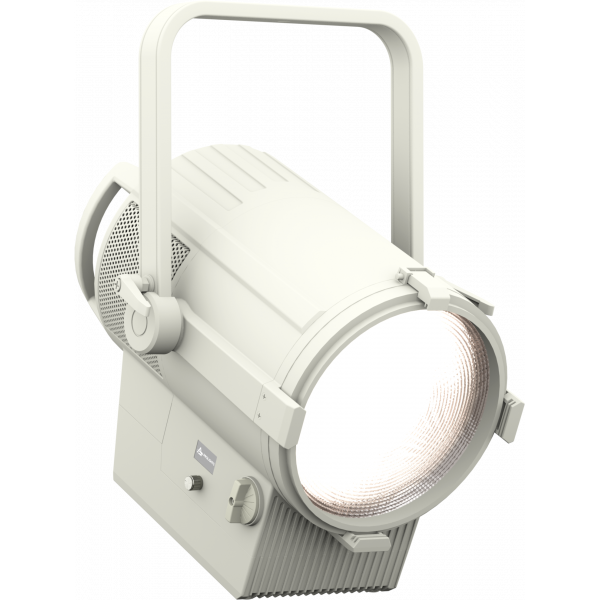

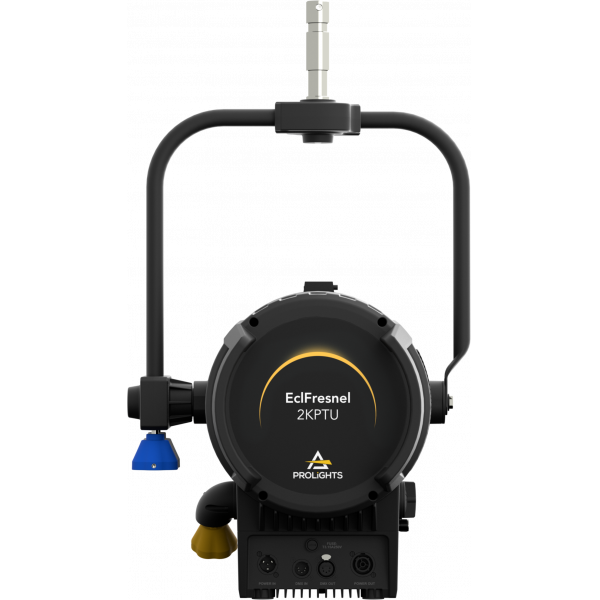

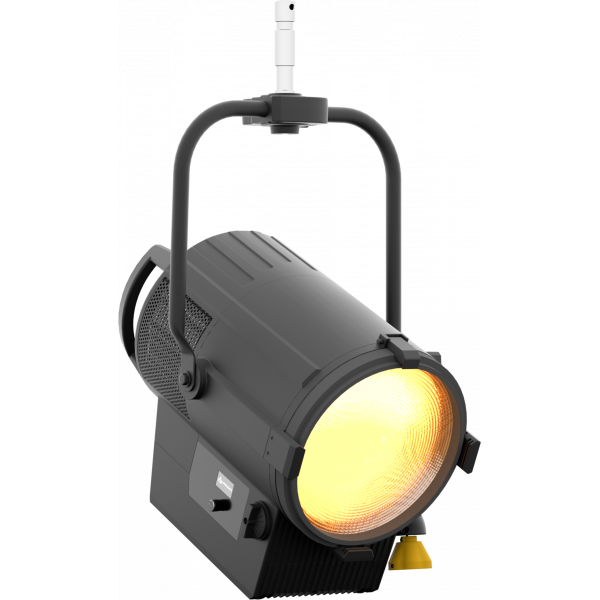

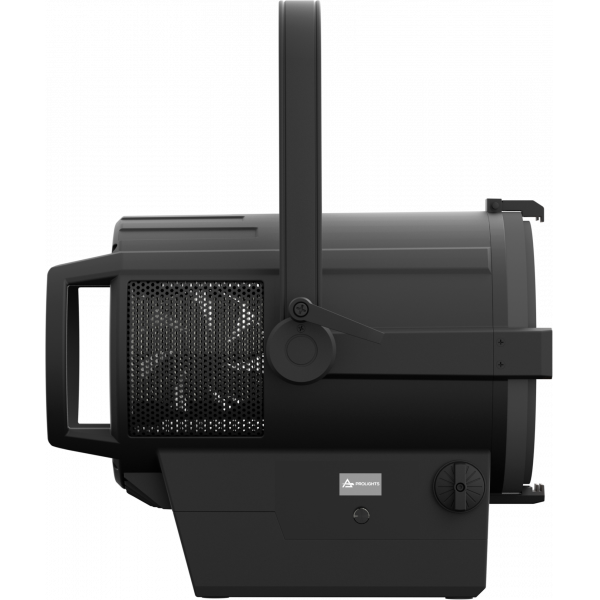

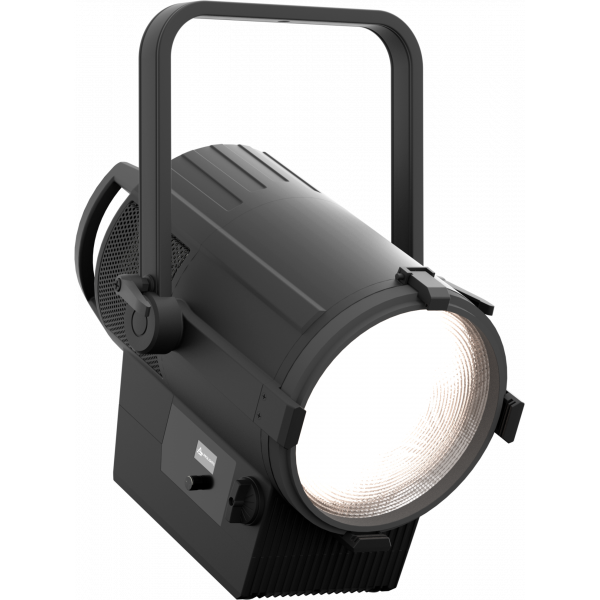

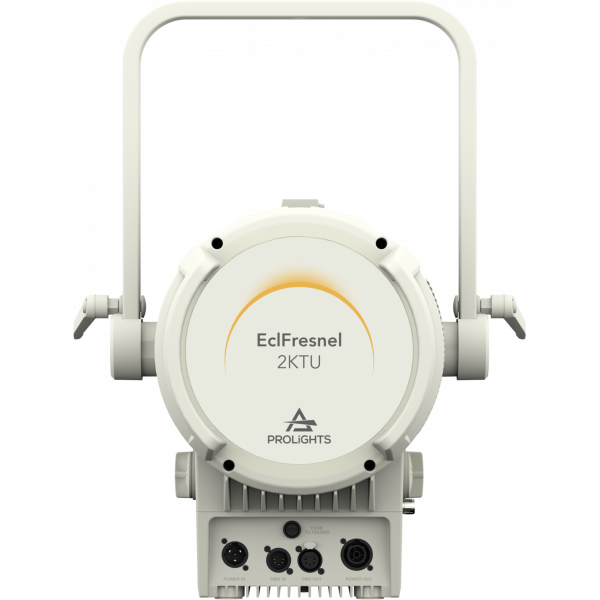

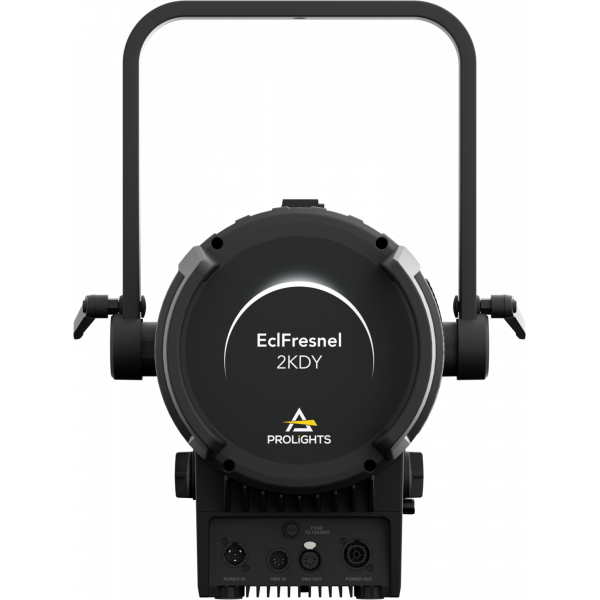

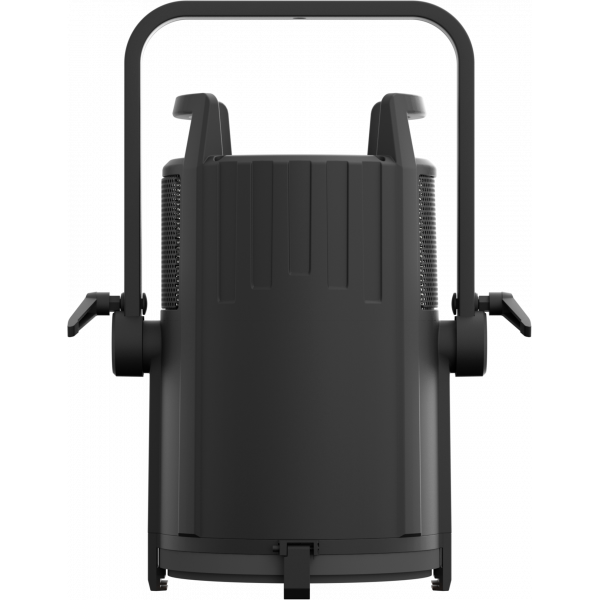

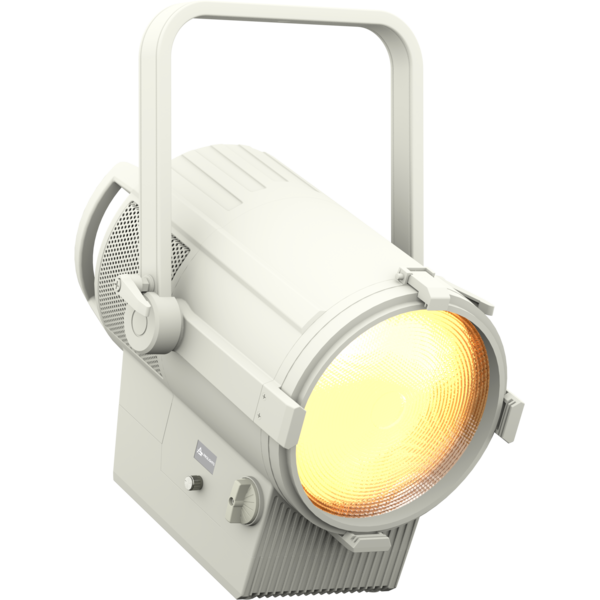

EclFresnel 2K is the LED replacement for a standard tungsten 2.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclFresnel 2K adds all the advantages of LED to the Fresnel.

Features:
TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
Fresnel lens with 16° to 64° zoom range
Silent operation for studio and stage use

LIGHT SOURCE

Source:

500
W

high-power white LED
CCT:

(TU) 3.200 K - (DY) 5.600
Luminous flux:

(TU) (16°) 20'256 lm; (64°) 26'126
lm

@full
Luminous flux:

(DY) (16°) 26'255 lm; (64°) 32'428 lm @ full
Lux:

(TU) (16°) 9'047 lx - (64°) 1'770
lx

@5 m full
Lux:

(DY) (16°) 11'975 lx - (64°) 2'306
lx

@5 m full
CRI:

(TU) >94; (DY) >91
R9:

(TU) >73; (DY) >80
TLCI:

(TU) >93; (DY) >93
TM30 Rf:

(TU) >92; (DY) >88
TM30 Rg:

(TU) <103; (DY) <104
Source life expectancy:

> 50.000 h

OPTICS

Zoom:

16° - 64
°

manual
Lens diameter:

250
mm
Lens type:

Fresnel zoom lens
Other:

spigot, barndoor and gel frame included

COLOUR SYSTEM

Colour mixing:

warm white
Macros:

several pre-built macros with adjustable speed

DYNAMIC EFFECTS

Static mode:

selection of static dimmer
Manual mode:

manual adjust of dimmer throught menu and knob
Auto mode:

built-in programs with execution speed adjustment

BODY

Hardware on-board:

filter frame, 8 doors barndoor, spigot
Pan angle:

(for pole operated version) 360
°

with manual regulation
Tilt angle:

(for pole operated version) 180
°

with manual regulation
Body:

sturdy die-cast aluminium body
Body colour:

black, white finishing available
Other:

Spigot 28 mm

CONTROL

Protocols:

DMX512, RDM, rotatory knob
DMX channels:

1 / 2 - 1 / 2 - 2 / 3 / 5
channel
RDM:

RDM for remote monitoring and settings
Display:

Graphic User Interface
Firmware upgrade:

yes, via USB - DMX interface (UPBOX1) not included
Master/Slave:

for synchronised operation of more units linked in a chain
Other:

16bit control of dimmer

ELECTRONICS

Dimmer:

linear 0 ~ 100% electronic dimmer
Dimmer curves:

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Operating temperature:

-10° ~ +45°
LED Control:

flicker free frequency with adjustable PWM
Selectable PWM:

600 ~ 25.000 Hz

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption:

500
W
Output (at 230V):

4

units on a single power line
Power factor:

>0,96

PHYSICAL

IP rating:

20
Cooling:

combination of heat pipe cooling system and low noise fan
Suspension and fixing:

bracket for hanging and positioning
Signal connection:

Amphenol XLR 5p IN/OUT connectors
Power connection:

Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD):

421x537x456
mm
Dimensions with PO system (WxHxD):

401x691x456
mm
Weight:

17,2
kg
Weight with PO system:

18
kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals:

CE, UKCA, RCM

BOX CONTENT

1 x ECLFR2K
1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
1 x ECLFRSPG
1 x ECLFR2KBD
1 x ECLFR2KTPG
User Manual

ITEMS REF.

Accessory Code

Description

ECLFR2K (optional)

9533FXWL03

Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m

ECLFR2K (optional)

TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

ECLFR2K (optional)

958225L03

3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

ECLFR2K (optional)

9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

ECLFR2K (optional)

RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

ECLFR2K (optional)

C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black

ECLFR2K (optional)

C6040B

Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

ECLFR2K (optional)

FCLECLFR2K

Flight case for 3 pcs of ECLFR2K

ECLFR2K (include)

ECLFR2KBD

Barn door with directional flaps to adjust the light beam

ECLFR2K (include)

ECLFR2KTPG

Gel filter frame for ECLFR2K projectors

ECLFR2K (include)

ECLFRSPG

Spigot for PROLIGHTS fixtures

ECLFR2K (optional)

EFSBUFDS

SNAPBAG - Universal SMALL DEEPER for BARNDOORS

ECLFR2K (optional)

SPGM10

28mm spigot for fixtures, M10 bolt

ECLFR2K (optional)

SPGM12

28mm spigot for fixtures, M12 bolt

ECLFR2K (optional)

UPBOX1UP5

Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
