EclFresnel Jr
ORDER CODE: ECLFRESNELJ
Share me

Immagine Principale
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ
  • ECLFRESNELJ

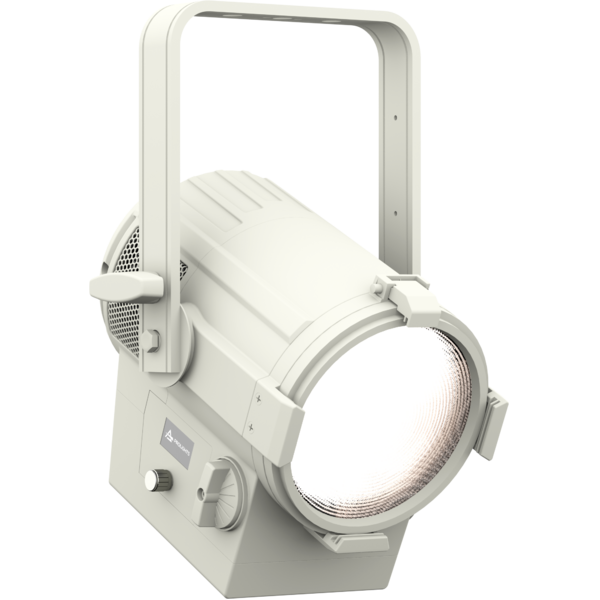

  • EclFresnel Jr
    Code CCT CRI R9 Lumen Finishing Avail.
    ECLFRESNELJTU 3.000 K 97 95 4'631 lm Black
    ECLFRESNELJDY 5.600 K 90 53 5'911lm Black

    EclFresnel Jr is the LED replacement for a standard tungsten 650 W Fresnel. Featuring the output characteristics of the traditional Fresnel, with beam control from functional barn doors and a powerful source that focuses on outstanding colour rendering. The EclFresnel Jr adds all the advantages of LED to the Fresnel.

    Features:
    TU (3.000 K) and DY (5.600 K) versions available both with HD dimming
    Fresnel lens options with 16° to 57° zoom range
    Silent operation for studio and stage use
    Battery ready, compatible with industry standard external batteries (optional)

    LIGHT SOURCE
    • Source:
      70
      W
      high-power white LED
    • CCT:
      (TU) 3.000 K - (DY) 5.600
      K
    • Luminous flux:
      (TU) (16°) 2'859 lm; (57°) 4'631
      lm
      @full
    • Luminous flux:
      (DY) (16°) 3'656 lm ; (57°) 5'911 lm @ full
    • Lux:
      TU (16°) 1'293 lx - TU (57°) 205
      lx
      @5 m full
    • Lux:
      DY (16°) 1'624 lx - (57°) 254
      lx
      @5 m full
    • CRI:
      (TU) >97; (DY) >90
    • R9:
      (TU) >95; (DY) >53
    • TLCI:
      (TU) >97; (DY) >92
    • TM30 Rf:
      (TU) >94; (DY) >88
    • TM30 Rg:
      (TU) <103; (DY) >97
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      16° - 57
      °
      half peak angle
    • Lens diameter:
      6'' - 150
      mm
    • Lens type:
      fresnel zoom lens
    DYNAMIC EFFECTS
    • Static colour mode:
      selection of static colour
    • Manual colour mode:
      manual adjust of dimmer throught menu and knob
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Hardware on-board:
      filter frame, 8 doors barndoor, spigot
    • Pan angle:
      (pole operated version) 360
      °
      with manual regulation
    • Tilt angle:
      (pole operated version) 340
      °
      with manual regulation
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM, rotatory knob
    • DMX channels:
      1 / 2 - 1 / 2 - 2 / 3 / 5
      channel
    • RDM:
      RDM ready for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Other:
      16bit control of dimmer and colour
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      0 ~ 30
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free frequency with adjustable PWM
    • Selectable PWM:
      600 ~ 25.000 Hz
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      90
      W
    • Output (at 230V):
      23
      units on a single power line
    • Power factor:
      >0,95
    BATTERY
    • Battery:
      29,6
      V
      4400 mAh external battery (optional ECLFRSJBP4)
    • Re-charge connection:
      connection for external battery throught
      XLR 4p
    • Other:
      Voltage range: 22,4V-33,6V
    PHYSICAL
    • Cooling:
      active, silent operation
    • Suspension and fixing:
      bracket for hanging and positioning
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON TRUE1 IN/OUT connectors
    • IP rating:
      20
    • Dimensions (WxHxD):
      235x360x260 mm - (for pole operated version) 298x496x260
      mm
    • Weight:
      6
      kg
    BOX CONTENT
    • 1 x ECLFRESNELJ
    • 1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)
    • 1 x ECLFRSPG
    • 1 x ECLFRSJBD
    • 1 x ECLFRSJTPG
    • User Manual
    ITEMS REF.
    Accessory Code
    Description
    ECLFRESNELJ (optional)
    ECLFRESNELJT (optional)
    ECLFRJP (optional)
    ECLFRJPTW (optional)
    Battery pack kit for EclFresnelJ serie
    ECLFRESNELJ (include)
    ECLFRESNELT (include)
    ECLFRESNELPT (include)
    ECLFRESNEL (include)
    MINIECLFRFC (optional)
    ECLFRJPTW (include)
    ECLFRESNELJT (include)
    ECLFRJP (include)
    MINIECLFR (optional)
    ECLFR2KT (include)
    ECLFR2K (include)
    ECLFR2KPT (include)
    ECLPANELTWC (include)
    ECLPANELTWCJR (include)
    Spigot for PROLIGHTS Fresnel series
    ECLFRESNELJ (include)
    ECLFRESNELJT (include)
    ECLFRJP (include)
    ECLFRJPTW (include)
    Black barn door 8 directional flaps to adjust the light beam
    ECLFRESNELJ (optional)
    ECLFRESNELPT (optional)
    ECLFR2KT (optional)
    ECLFR2K (optional)
    ECLFRESNELJT (optional)
